◆ Reuseable without factory service ;
◆ Installation at the dispenser;
◆ Small and compact design;
◆ Build-in self cleaning filter(40µm or 20µm): For filtering particles and road grime to provide clean hydrogen
◆ Check valve in the line.
Hydrogen Fueling Components Manual
BC1-35A Breakaway Coupling Selection Guide
| Technical data | |
| Product name | LANGAN®BC1-35A 35MPa Safety Emergency Breakaway Coupling |
| Nominal bore DN | Max. 8mm |
| Pressure range | PN=35MPa, PS=45MPa |
| Media temperature range | -20℃∼+85℃ |
| Ambient temperature range | -40℃∼+85℃ |
| Material | Corrosion resistant stainless steel, aluminium alloy |
| Sealing material | Hydrogen resistant |
| Breakaway force | 222-667N |
| Design | With or without gas venting hose, with filter (40µm or 20µm) |
1. Description:
BC1-35A 35MPa Safety Emergency Breakaway Coupling for light duty vehicles offers additional safety for car hydrogen fueling station. The breakaway coupling is installed between the dispenser and fueling hose (filling and recirculation hose). Breakaway Coupling is used to prevent accidential drive-off. It maximizes the protection to the hydrogen tank for the vehicles and minimizes the damage to the hydrogen fueling nozzle and dispenser.
The internal integrated filter provides clean hydrogen and easy to maintain.
2. Construction:

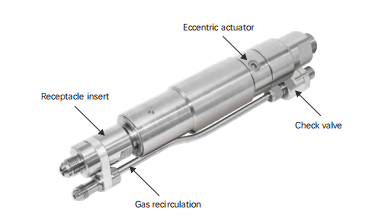

LANGAN®BC1-35A Hydrogen Dispenser Breakaway Coupling consists of a coupling body, a receptacle insert and a gas recirculation with check valve. The breakaway coupling without gas recirculation is available as well.
◆ Note: Complete assembly consisting of hydrogen fueling nozzle, hose set and breakaway coupling is also available on request.
3. Application:
Breakaway coupling, used for bus and truck fueling stations, can be mounted at the dispenser directly.
4. Comparision of LANGAN® Hydrogen Breakaway Couplings:
| Product No. | Type |
Nominal bore DN |
Pressure PN |
Breakaway force | Applicable |
| BC1-35A | Emergency type | Max. 8mm | 35MPa | 222~667N | H2 station for light duty vehicles |
| BC2-35A | Inline type | 8mm | |||
| BC5-35A | Emergency type | 12mm | H2 station for buses&trucks | ||
| BC6-35A | Inline type | 12mm | |||
| BC1-70A | Emergency | 4mm | 70MPa | H2 station for light duty vehicles | |
| LD1-35A | Unloading column mounted | 8mm | 35MPa | 600~900N | H2 station for long tube trailer |
5. How to order:
With years of experience and extensive expertise in hydrogen fueling industry, we are prefessional for hydrogen refueling solutions. Please feel free to INQUIRE us. Customized hydrogen receptacles are on request.
★ For more details, please download
BC1-35A Breakaway Coupling Selection Guide
