◆ Reuseable without factory service ;
◆ Installation at the dispenser;
◆ Small and compact design;
◆ Integrated self-cleaning filter(20µm)--providing clean and filtered hydrogen
Hydrogen Fueling Components Manual

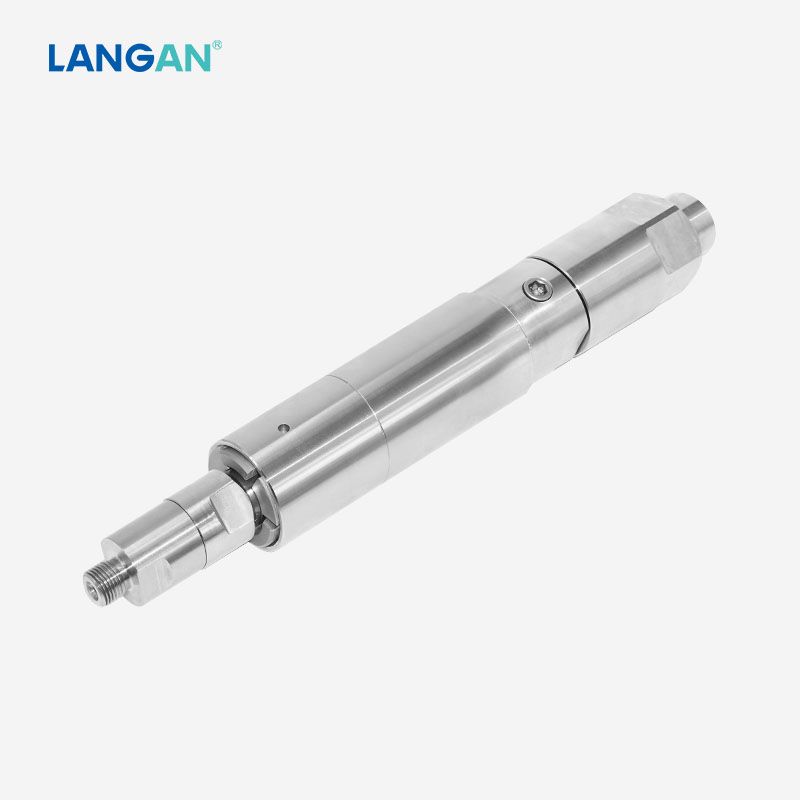

BC1-70A Breakaway Coupling Selection Guide
| Technical data | |
| Product name | LANGAN® BC1-70A high pressure 700 bar Emergency Breakaway Coupling for car refueling stations |
| Nominal bore DN | 4mm |
| Pressure range | PN=70MPa, PS=87.5MPa |
| Media temperature range | -40℃∼+85℃ |
| Ambient temperature range | -40℃∼+85℃ |
| Material | Corrosion resistant stainless steel, aluminium alloy |
| Sealing material | Hydrogen resistant |
| Breakaway force | 222-667N |
| Design | With filter (20µm) and data cable (only applicable for the H2 fueling nozzles with data interface) |
| OEM/ODM breakaway coupling | Available on request |

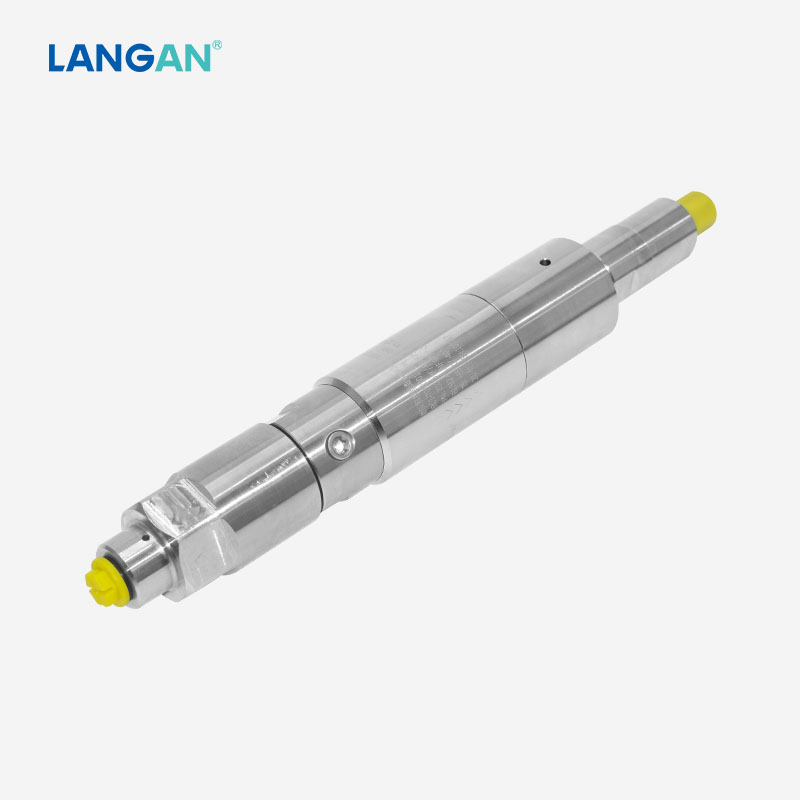

1. Description:
BC1-70A high pressure Emergency Breakaway Coupling is specially designed for safe and fast refueling with gaseous hydrogen under pressure up to 70MPa. The safety breakaway coupling is installed on the dispenser of the fueling station.
Breakaway Coupling is used to prevent drive-off accidents. The coupling will seperate the connection between the dispenser and hose, which will keep the sealing at both ends. It maximizes the protection to the protection to the hydrogen tank for the vehicles and minimizes the damage to the hydrogen fueling nozzle and dispenser.
The internal integrated filter provides clean hydrogen and easy to maintain.
2. Construction:

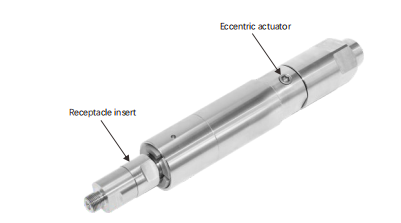

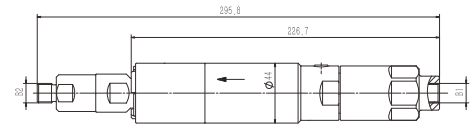

BC1-70A Hydrogen Dispenser Breakaway Coupling consists of a coupling body and a receptacle insert.
◆ Note: Complete assembly consisting of hydrogen fueling nozzle, hose set and breakaway coupling is also available.
3. Application:

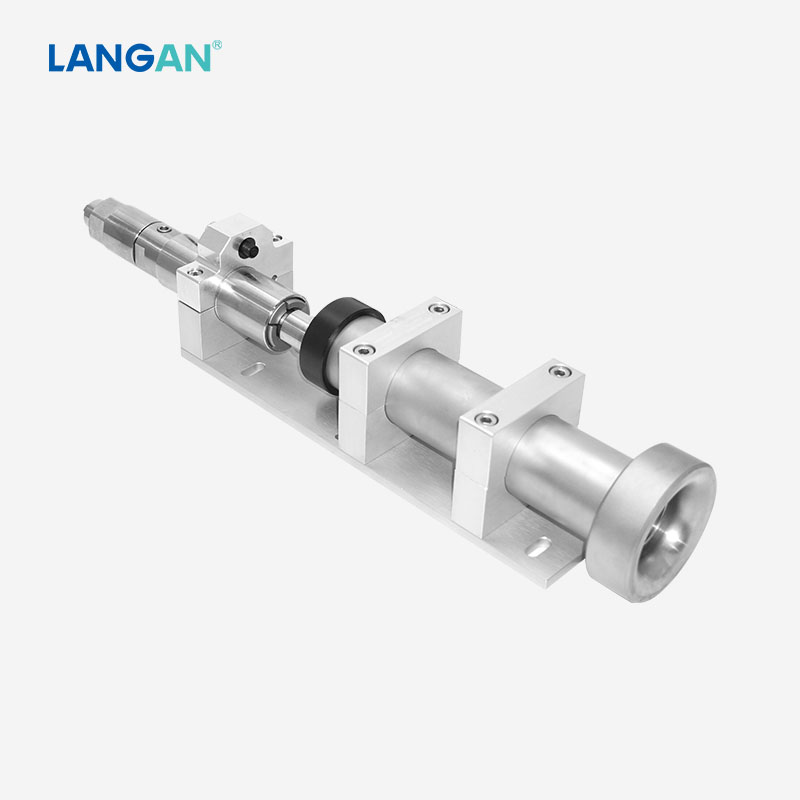

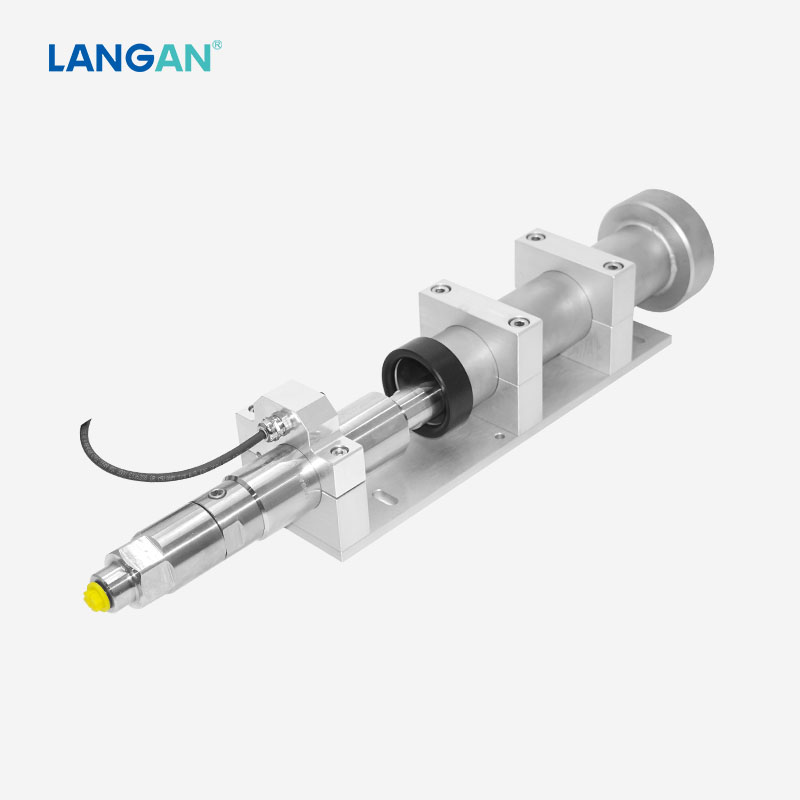

BC1-70A Breakaway coupling, used for car hydrogen fueling stations, can be mounted at the dispenser directly.
4. Comparision of LANGAN® Hydrogen Breakaway Couplings:
| Product No. | Type |
Nominal bore DN |
Pressure PN |
Breakaway force | Applicable |
| BC1-35A | Emergency type | Max. 8mm | 35MPa | 222~667N | H2 station for light duty vehicles |
| BC2-35A | Inline type | 8mm | |||
| BC5-35A | Emergency type | 12mm | H2 station for buses&trucks | ||
| BC6-35A | Inline type | 12mm | |||
| BC1-70A | Emergency | 4mm | 70MPa | H2 station for light duty vehicles | |
| LD1-35A | Unloading column mounted | 8mm | 35MPa | 600~900N | H2 station for long tube trailer |
5. How to order:
With years of experience and extensive expertise in hydrogen fueling industry, we are prefessional for hydrogen refueling solutions. Please feel free to INQUIRE us. Customized hydrogen receptacles are on request.
★ For more details, please download
BC1-70A Breakaway Coupling Selection Guide
