● Ease of operation；
● Instant sealing within seconds;
● Ease of maintenance with simple construction;
● Universal design for the clamping lever;
● Customized version for sealing of various electrical connectors
With the rapid growing demand for Electrical Vehicles (EVs) within the automotive market, new challenges are presented for the automakers because new electrical technologies and vehicle components are introduced continuously. Safety and reliability of an EV is of the utmost importance.
As a pinoneer, LangAn has developed a series of innovative Electrical Vehicles (EVs) leak test solutions to simplify the leak test connection process and improve safety and production efficiency.

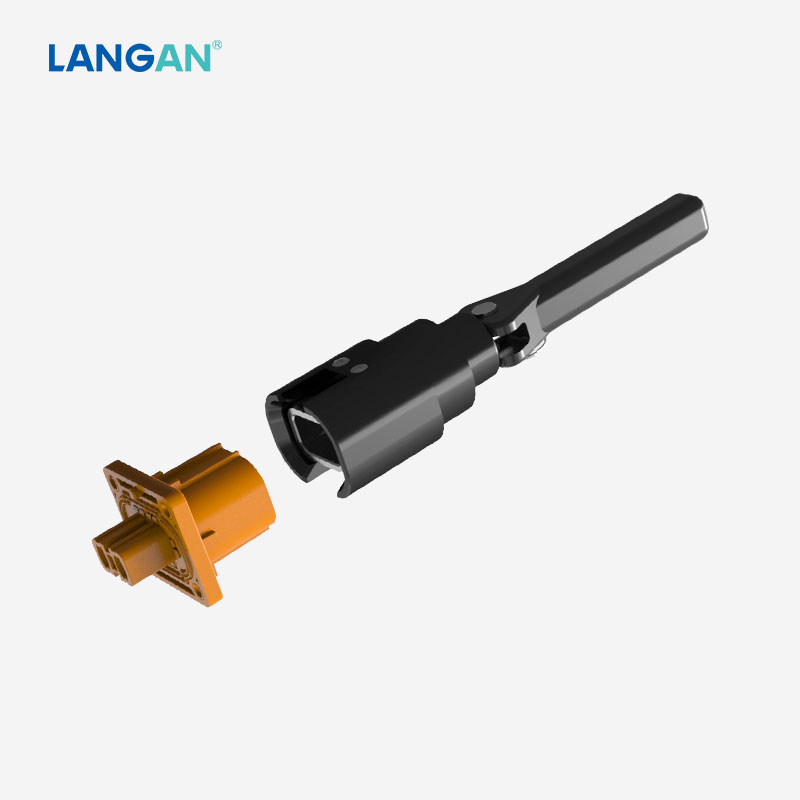

LANGAN® LA151 series leak and air tightness test connector for electric vehicles is one of the connection tools to offer instant, reliable and repeatable connections.
1. Technical data
| Name | LANGAN® LA151 series customized leak test connectors for Electric Vehicles (EVs) |
| Test media | Non-corrosive gas |
| Main body material | Aluminium alloy |
| Sealing material | NBR |
| Max. permissible pressure | 0.6 bar (Please indicate if test pressure exceeds 0.6 bar) |
2. Specification:
Standard versions can meet most test conditions and requirements. For special and harsh test conditions, please contact with us to customize LA151 Series electric vehicles test connectors.

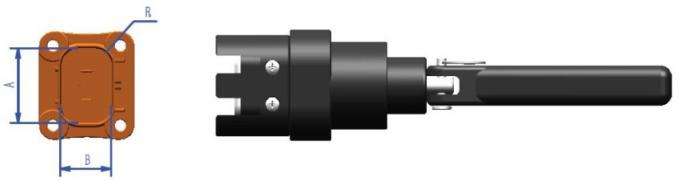

| Dimensions | ||||
| Part numbers | A/mm | B/mm | R/mm | Gas inlet |
| LA151-S33200 | 30.2 | 20.7 | 7.1 | G1/8 |
| LA151-S27326 | 37.8 | 19.8 | 7.5 | G1/8 |
| LA151-S28974 | 41.8 | 33.8 | 3.9 | G1/8 |
* Dimensions are for standard versions. Customized version is available on request.
3. Challenges:
The electrical connectors on electric vehicles come in various types and forms. Injection-molded housings from different batches are not exactly the same. The sealing stability must be ensured to realize continuous test TAKT on the wire and avoid invalid NG.
4. Solutions:

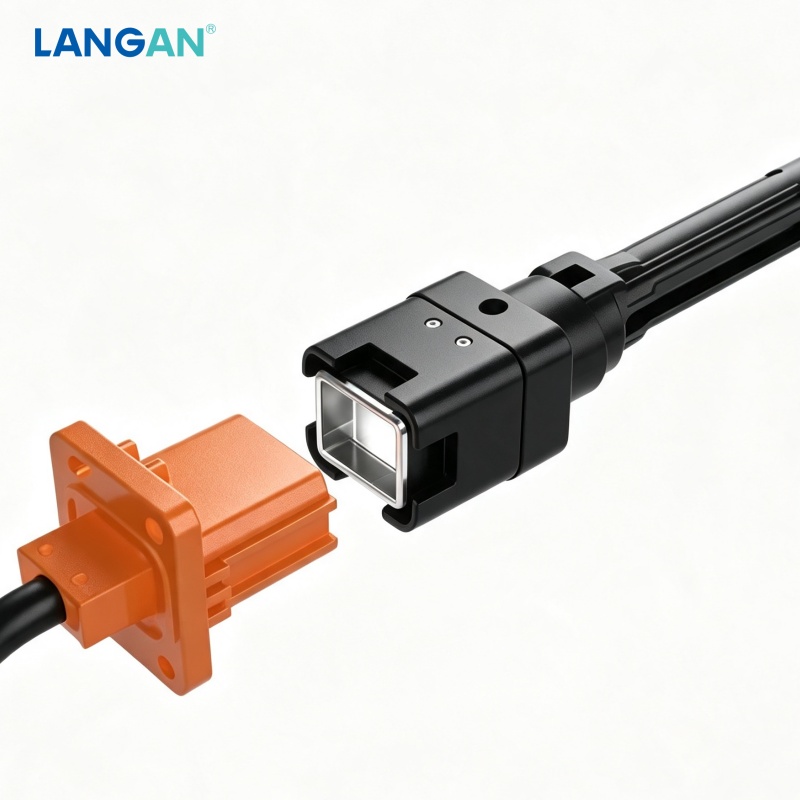

LANGAN® LA151 series electric vehicle test connector perfectly solves the above mentioned challenges. When the test quick connector is mounted in place, simply give the clamping lever a 90 ° rotation which actuates the seal to expand and seal inner wall of electrical connectors. Thanks to the self-adjusting technology, it is applicable to bigger injection tolerance with better sealing stability. Customized test connectors are available on request with 3D drawings.
5. Applications:
For air tightness leak test of high voltage/low voltage signal electrical connectors on the Battery packs, Microprogrammed Control Unit (MCU), inverter, Power Distribution Unit (PDU), On-Board Charger (OBC) etc.
6. How to customize:
Custom electric vehicle leak test connectors are designed to a specific client's demand to perfectly adapt to testing space, various connection ends and surface conditions with unwavering standard.
Please click and INQUIRE us.
For detailed dimensions, please download
LANGAN® Quick Connector for EV Sector Catalog
