● Ease of operation: Simply rotate the clamping lever to complete the sealing connection and open the vent valve simultaneously;
● contacts made of plastic or aluminium alloy to protect product surface and avoid scratches;
● Improving efficiency and accuracy

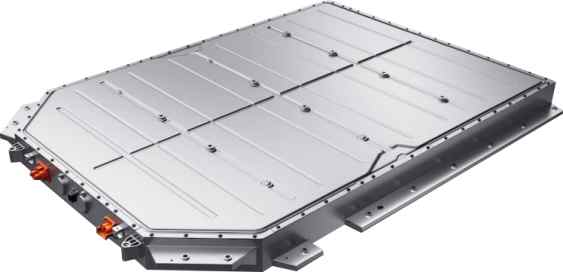

Leak testing plays an integral role in the performance of EVs battery pack. Automakers must ensure that EV battery packs are tightly sealed and work under normal conditions to create safe driving conditions for drivers and passengers.
As a pinoneer, LangAn has developed a series of innovative Electrical Vehicles (EVs) leak test solutions to simplify the connection process and improve safety and production efficiency.

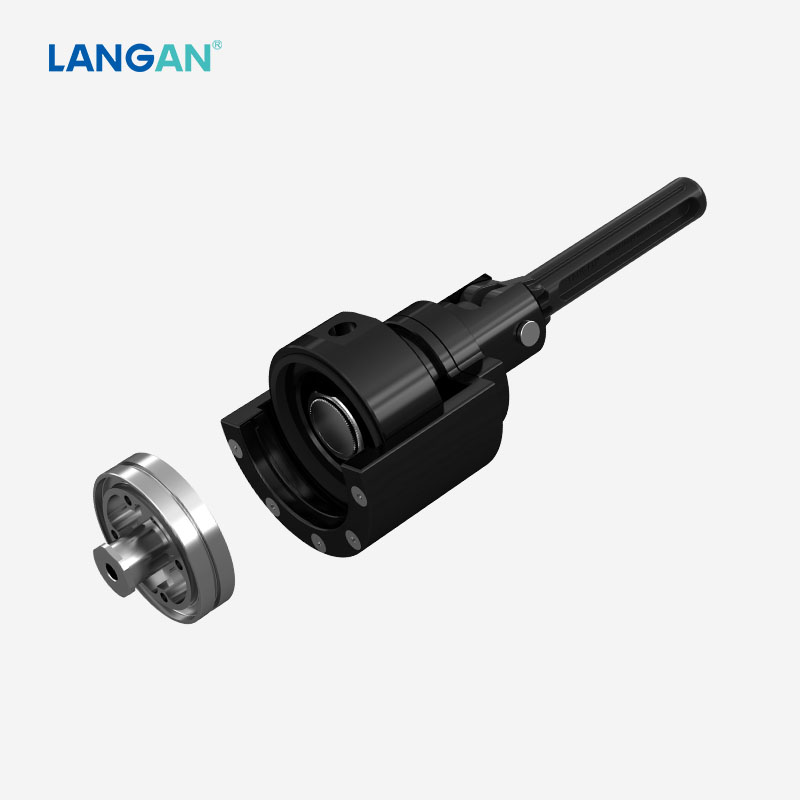

LANGAN® LA152 series leak test connectors for EV battery pack provides efficient and cost-effective test solutions. It can be designed and manufactured according to clients' specific requirements with unwavering standard.
1. Technical data
| Product name | LANGAN® LA152 series Leak Testing Quick Connector for EV Blast Valve |
| Test media | Non-corrosive gas |
| Main body material | Aluminium alloy |
| Sealing material | NBR |
| Max. permissible pressure | 0.6 bar (Please indicate when the test pressure exceeds 0.6 bar) |
2. Specification:
Standard versions can meet most test conditions and requirements. For special and harsh test conditions, please contact with us to customize electric vehicle leak test solutions.

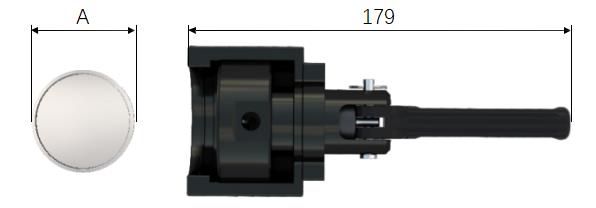

| A | Part number | Test port |
| 49.6 | LA152-S33200 | G1/8 |
3. Challenges:
Vent valve of EVs battery pack comes in many sizes and types. Surface of the common structure that can be used for sealing is relatively small, which limits sealing effects to a large extent. During the test process, this position is often designed as the gas filling inlet. Meanwhile, vent valves with build-in shut off needs to be opened to fill gas.
4. Solutions:
LANGAN® LA152 series leak test quick connectors for EV battery pack perfectly overcome all the above challenges. Sealing the top of venting valve using groove in the test sample. Valve cover will be opened for air supplying with the help of magnet or vacuum suction cup.
5. Application:
For air tightness test of various round or rectangular blast valves on the Electric Vehicle (EV) battery pack.
6. How to customize:
Custom E-mobility battery pack leak test quick connectors are designed to a specific client's demand to perfectly adapt to testing space, various connection ends and surface conditions without unwavering standard. Please click and INQUIRE us.
For detailed dimensions, please download
LANGAN® Quick Connector for EV Sector Catalog
