● Ease of operation;
● Reliable and stable sealing;
● Push to connect instantly and pull the sleeve to disconnect;
● Excellent flowing performance with minimum pressure drop under the same flow rate;
● Build-in shut-off as an option;
● Other versions available on request

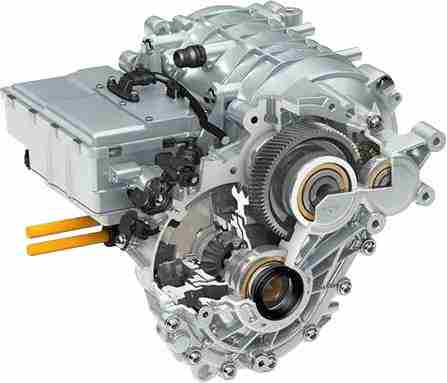

Electric vehicles need optimum temperatures (neither warm nor cold) to run safely and efficiently. Temperature is essential for the proper working of the battery pack, power electronic systems, and motor in the electric vehicle. Power electronic systems and motors demostrate their best working state under optimal temperatures. The working temperature of the electric motor is critical to the performance of the vehicle. Therefore, the cooling of the motor is necessary for its full performance in electric vehicles.

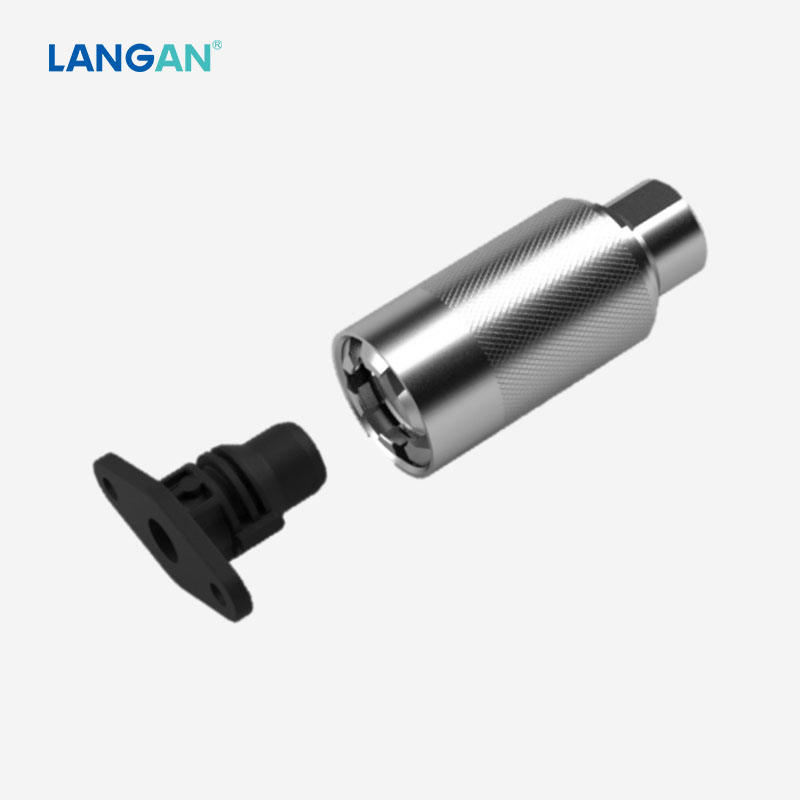

LANGAN® LA651 series electric vehicle test connector provides quick, optimized and cost efficient air tightness test solutions for the motor water cooling port.
1. Technical data
| Technical data | |
| Product name | LA651 Series EV air tightness test connector for motor water cooling port |
| Test media | Coolant, non-corrosive gas |
| Main body material | Stainless steel |
| Sealing material | FKM (custom-tailored) |
| Max. permissible pressure | 10 bar |
| Type of connection | NW water nozzle |
2. Specification:
Standard versions can meet most test conditions and requirements. For special and harsh test conditions, please contact with us to customize electric vehicle leak test solutions.

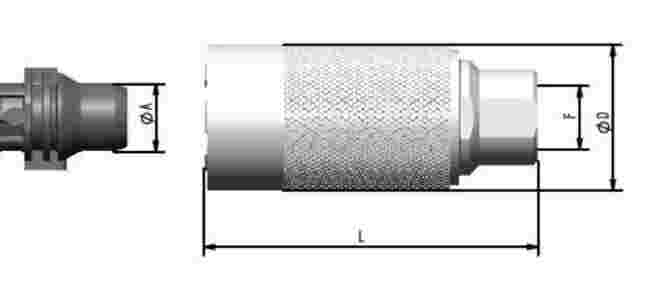

| ∅A | Part number | ∅D | L | F | Shut-off |
| 16.3 | LA651-DY1630-035 | 35 | 80.3 | G3/8 | × |
| LA651-DY1630-035S | √ | ||||
| 22.3 | LA651-DY2230-042 | 42 | 86.7 | G1/2 | × |
| LA651-DY2230-042S | √ |
* Dimensions are for standard versions. Customized version available on request.
3. Challenges:
Conventional bore plugs are not only unsuitable for liquid media, but also affects the circulation performance. The connectors should have a cutoff function to avoid residual liquid drop.
4. Solutions:
LA651 series test connector perfectly overcomes all the above challenges.
Jaw locking mechanism is adopted. Push to connect instantly and pull the sleeve to disconnect. And it does not affect the flow capacity of the water outlet. Push to connect instantly and pull the sleeve to disconnect. A build-in shut-off is integrated.
5. Application:
For flowing liquid or air tightness test of cooling water port on Electric Vehicles (EVs) Microprogrammed Control Unit (MCU) and motor housing.
6. How to customize:
Custom leak test connectors for electric vehicle are designed to a specific client's demand to perfectly adapt to testing space, various connection ends and surface conditions with unwavering standard.
