● Compact construction and clean disconnection;
● Maintaining high-efficient and steady sealing while ensuring safety of the operator and equipment;
● Compatible with a majority of cooling fluids
● Covering a large range of temperatures;
● Excellent flow performance and minimum pressure drop;
● Designed to withstand many connections;
● Colored rings to identify different circuits
With the development of science and technology, the application of functional components, such as converters, power transformation, distribution equipment, T/R components, lasers, supercomputers, high-power transmitter receivers and batteries, has brought great benefits to life, scientific research and production. However, cooling problems of heating modules on these components have become the key factor to restrict the performance improvement.
We have developed several types of quick-release couplings & connector for quick connection of fluid cooling system. The couplings are light, compact and having good flowing performance.
1. Application:
● Aerospace, military defense ● Medical
● Data center, Supercomputer ● Internet Switch
● Communication satellites ● Broadcasting
● Nuclear energy, wind power, photovoltaic ● Rail transit, New energy vehicles
2. Fluids
● Coolant ● Heat transfer oil ● Deionized water
● Esters ● Glycol Water ● Kerosene
3. Technical characteristics:
● Material: Nickle-plated brass/stainless steel/aluminium
● The choice of elastomer depends on the fluid and the operating temperature.

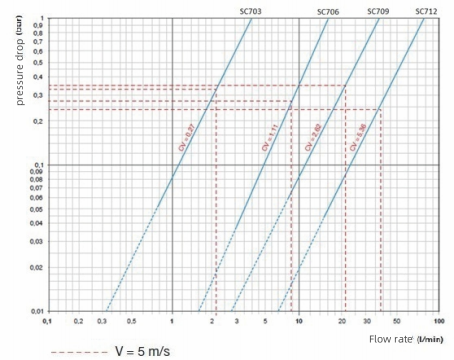

● Hydraulic flow rate/Pressure drop charts
Test fluid: water; Direction of flow: plug->socket; max flow at the 5m/s velocity

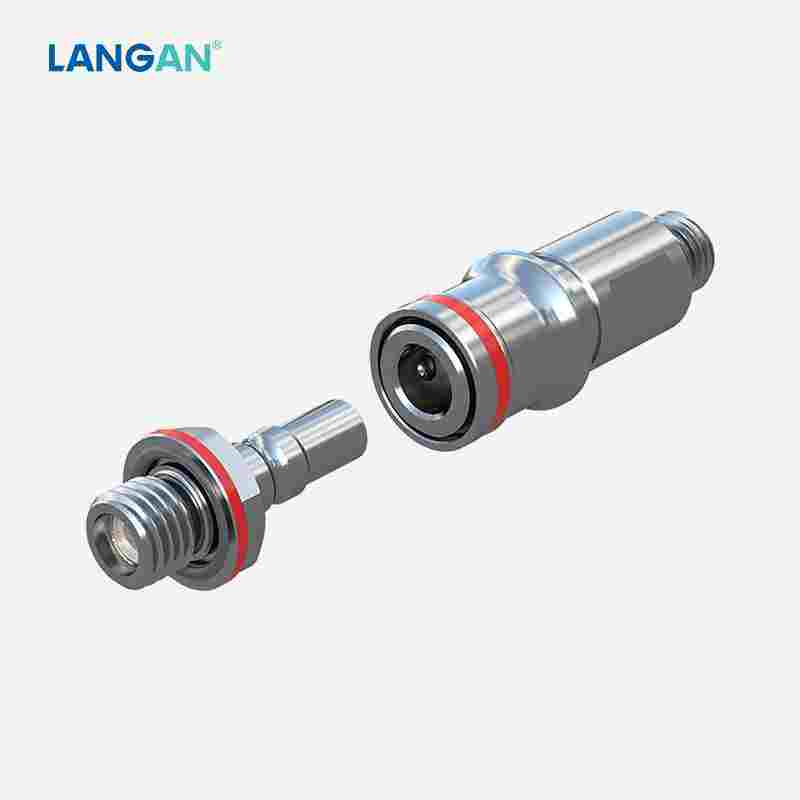

● Customized colored rings on couplings
We provide 2 colors (blue and red) of customized quick-release couplings, which allows the operator to immediately identify the circuits.

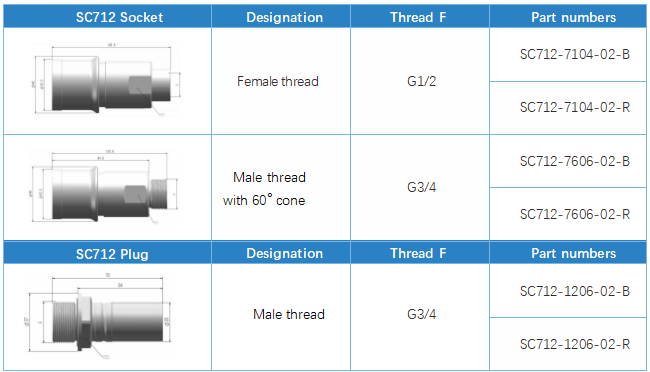

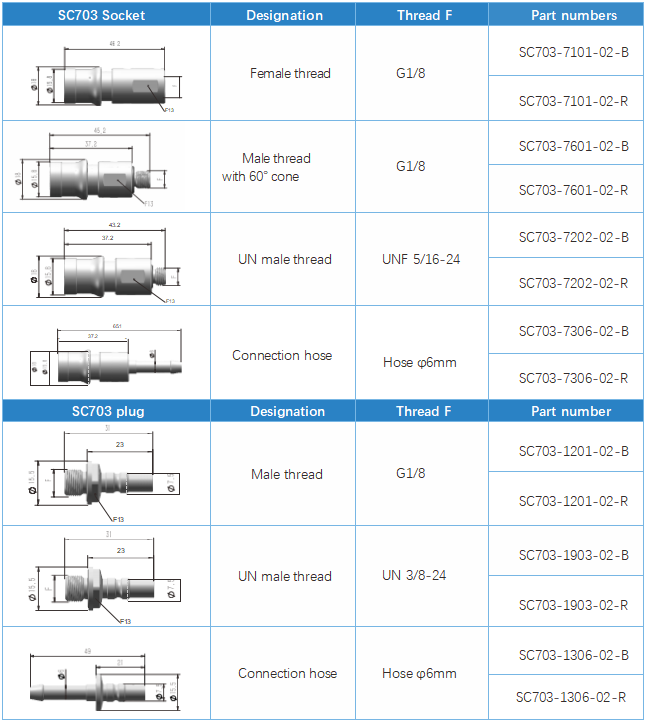

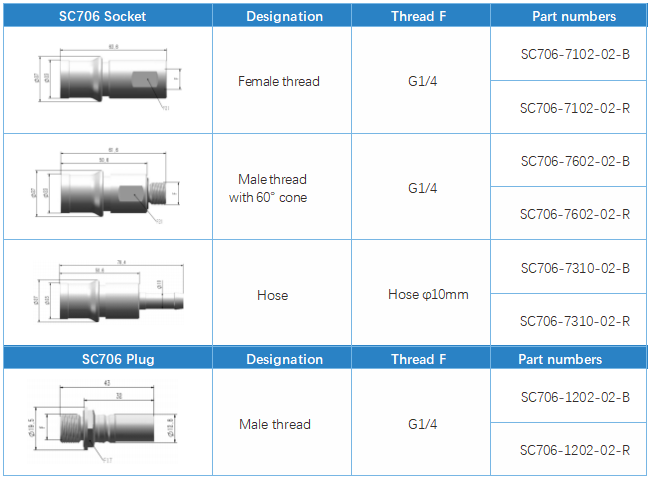

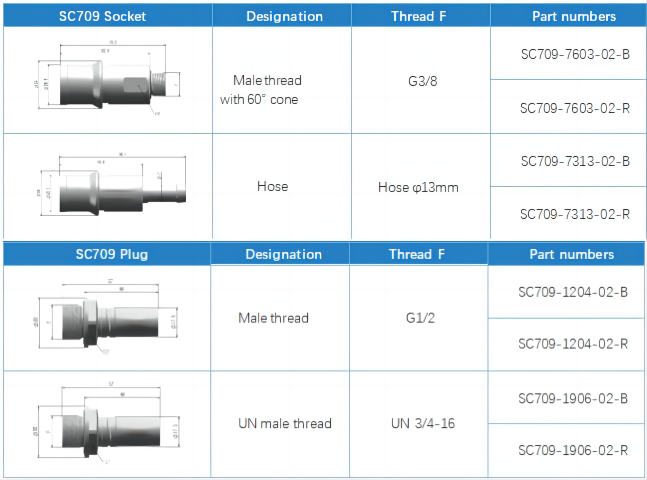

4. Part-numbers
∗ Please contact us for other types of designation;
∗∗ We reserve the right to amend the specification without prior notice.
5. Ordering:
As a manufacturer of quick coupling for liquid cooling circuit, LANGAN provides cost-effective and quality guaranteed quick couplings to various industries for thermal control solutions. Custom-tailored quick release couplings that suit your needs are available on request.
If you are interested in our non-spill quick-release coupling, Please feel free to inquire us.
