◆ High-grade material;
◆ Instant connection;
◆ For underwater, pressure decay and helium testing;
◆ For connection into straight tubes and bores;
◆ No time-consuming hand or wrench tightening required;
◆ No seal adjustment required
LANGAN® Quick Connector Catalog
LANGAN® LA801 Leak Test Quick Connector Selection Guide
| Technical data | |

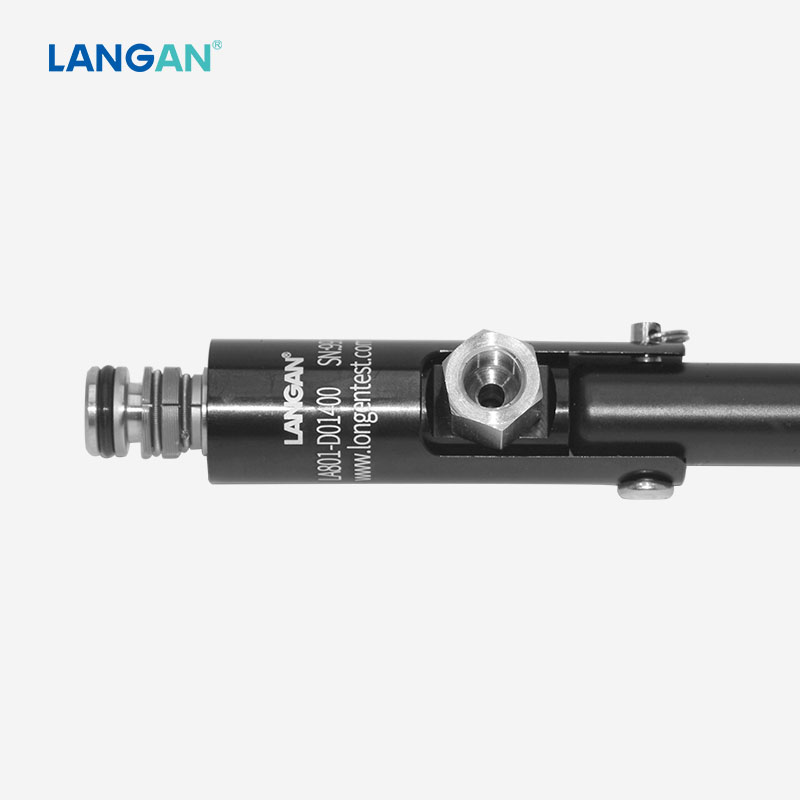

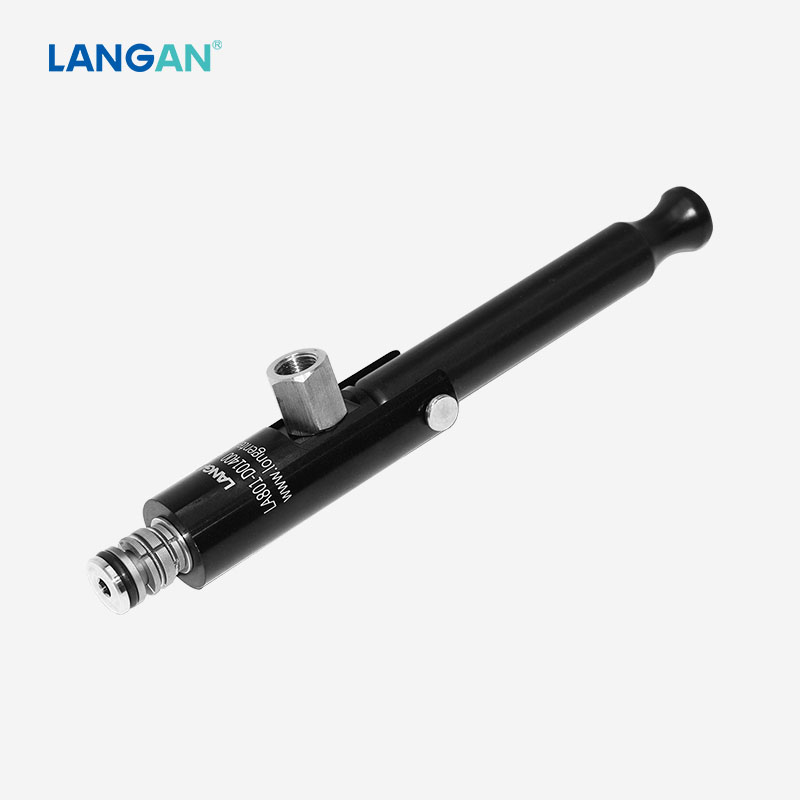

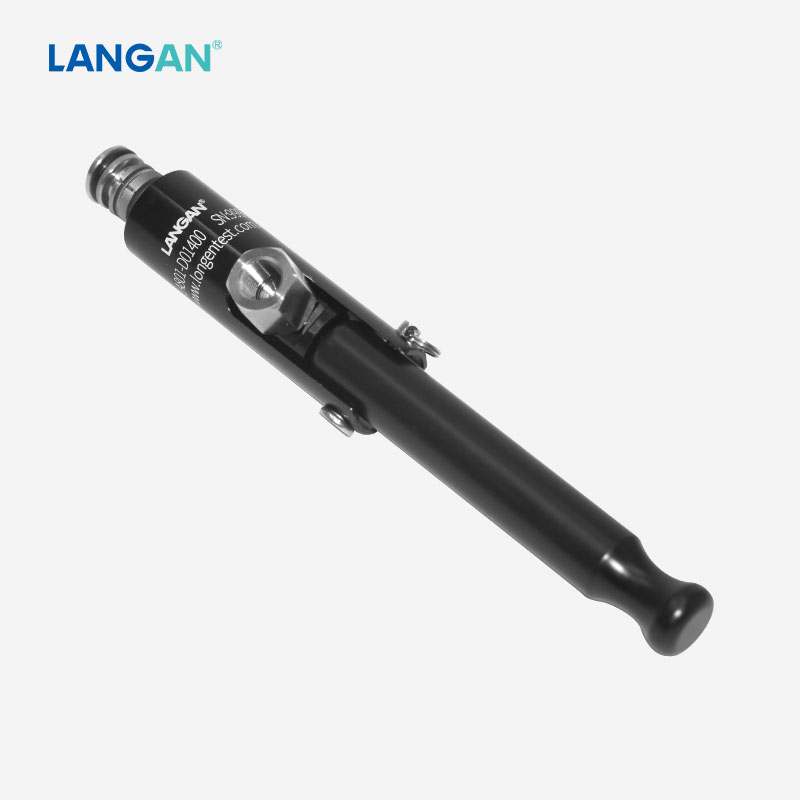

| Product name | LA801 leak test coupler for bores and internal straight tube, helium testing vacuum up to Max. 70 bar |
| Connection type | Internal tube/bores |
| Operation pressure (PS) | Port B: vacuum up to Max. 70 bar |
| Actuation method | Clamping lever |
| Leak rate | 1*10-3 mbar.l/s(10-4 Pa.m3/s) |
| Temperature range | +5℃~+80℃ |
| Material |
Clamping jaw: corrosion resistant stainless steel; Hardened housing: anodized aluminium |
| Sealing material | NBR, other materials available on request |
1. Specification: LA801 quick connector is suitable for underwater, pressure decay and helium testing of straight tubes and bores with internal diameter.
The connector is equipped with an internal safety lock component which prevents accidential disconnection under pressure. The sealing system ensures the duribility and high leak tight test performance of the connector.
Material hardness of test piece: In the case where the sureface roughness value of the test is greater than Ra0.32 and the hardness value is lower than 95HRB, the seal can be effectively performed under rated pressure; If the hardness value of the test piece is less than 40 HRB, the surface roughness value must be greater than Ra 0.16 to complete the seal; the copper pipe and other materials can be connected as required.

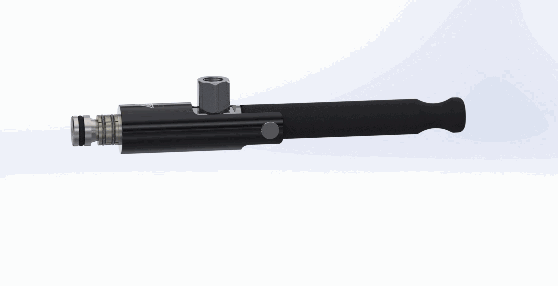

2. Operating instruction:
Please strictly follow the operation steps. Improper operation can cause poor sealing, leakage and risk of connection failure resulting in damage or injury. Do not disconnect the connector while under pressure. Damage or injury may occur.
◆ Insert the test piece straightly and carefully into the connector;
◆ Rotate the clamping lever by 90° downwards. Then the connector achieves a pressure-tight connection. Pull the connector lightly to make sure that the connector is firmly connected in place;
◆ Apply the required test pressure to media inlet to start the test process;
◆ At the end of the test process, vent the media line completely. Make sure to depressurize the connector before releasing the connection;
◆ Rotate the clamping lever and pull lightly on the connector straight back to disconnect it with the test piece.
3. Application:
Instantly connect and disconnect for sealing on straight tubes and bores of internal diameter. Main applications are vacuum testing, pressure testing, pressure decay testing, and helium testing etc.

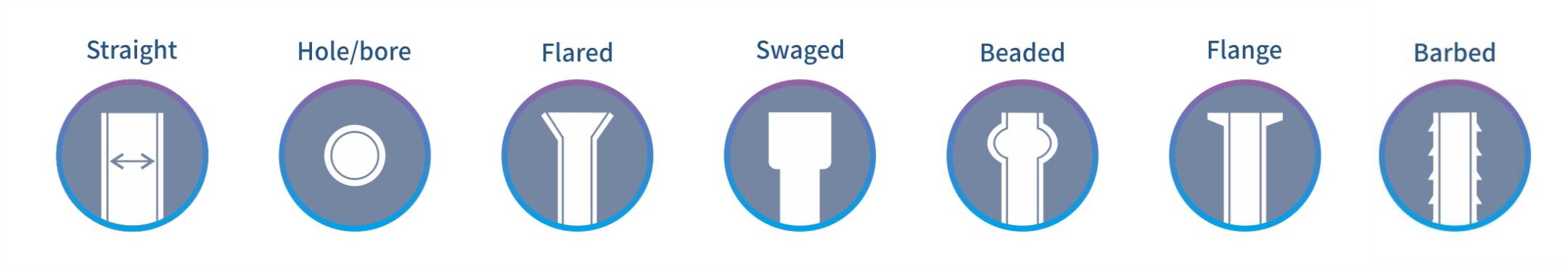

CONNECTS TO:
4. How to order:
LA801 quick connectors are designed for straight tubes and bores with internal diameter.. Normally we need the following information for orders:
◆ Part numbers ◆ Pressure range
◆ Media/requested leak rate ◆ Temperature range
◆ Space requirement (interference contours, clearance, etc.)
◆ CAD drawing, 3D model of the test piece

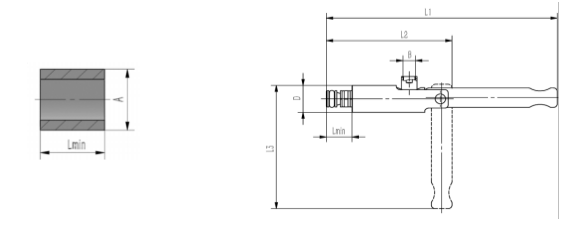

★ For detailed part numbers and dimensions, please download LA801 Quick Connector Selection Guide.
5. How to customize:
Custom LA801 quick connect connectors are designed to a specific client's demand to perfectly adapt to testing space, various connection ends and surface conditions. Please click and INQUIRE us.
