◆ High-grade material
◆ Automated sealing on the test pieces
◆ Time and cost saving
◆ Sealing irregular and rough surfaces
◆ No hand or wrench tightening required

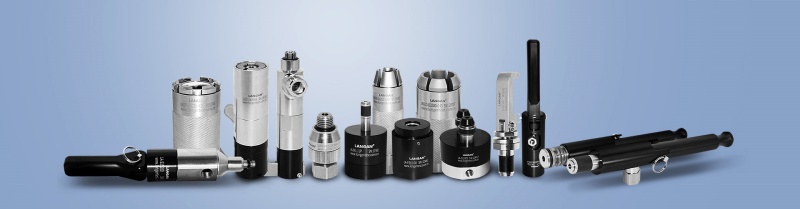

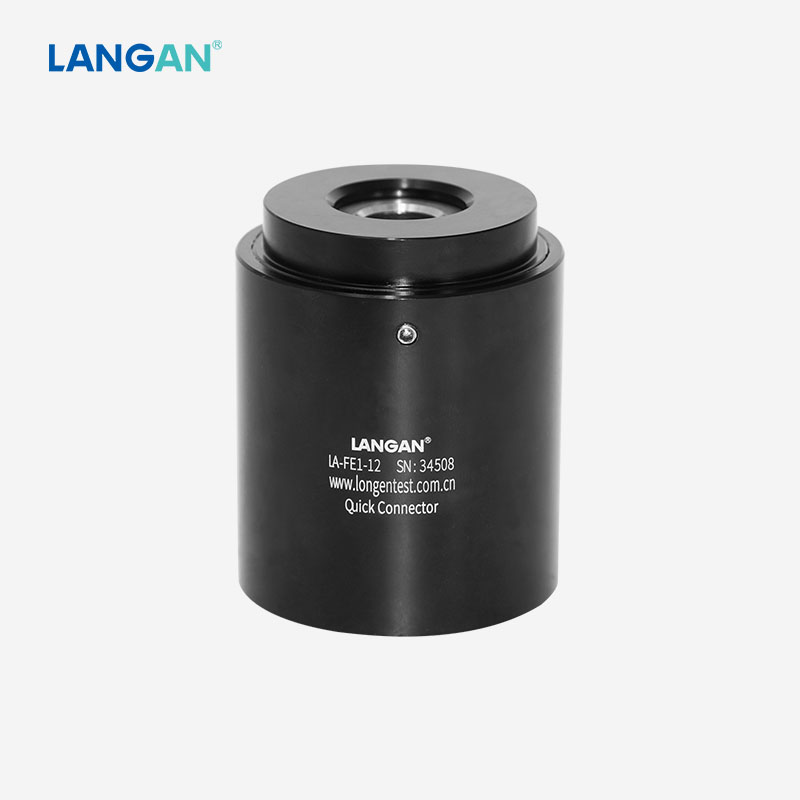

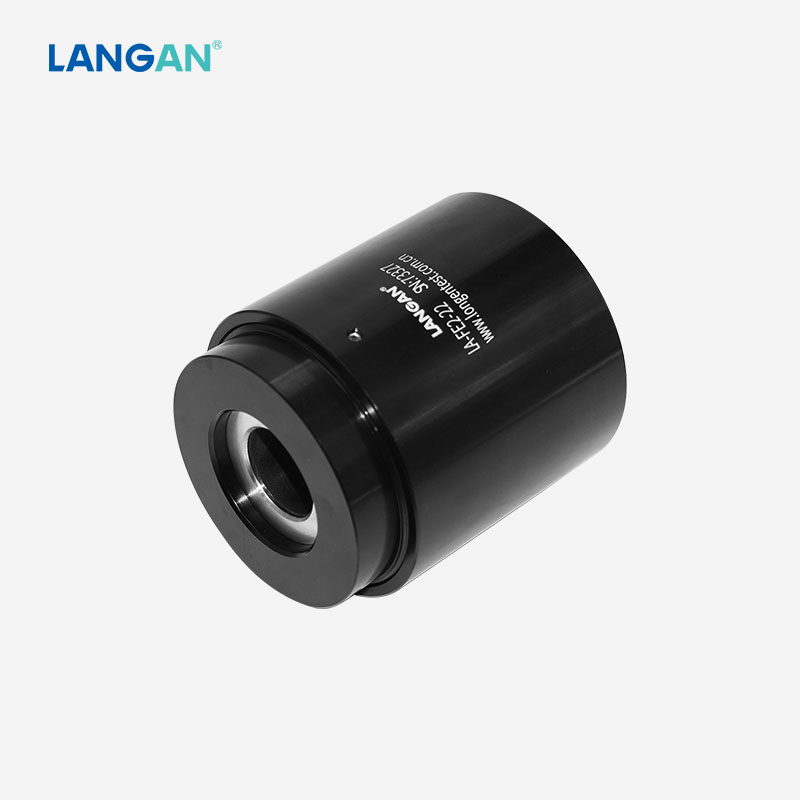

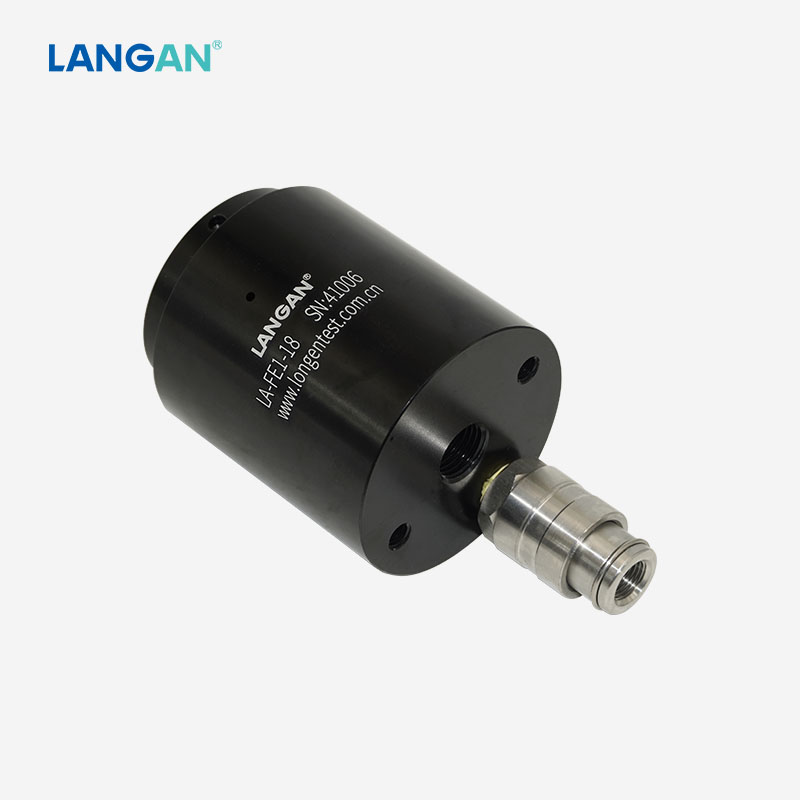

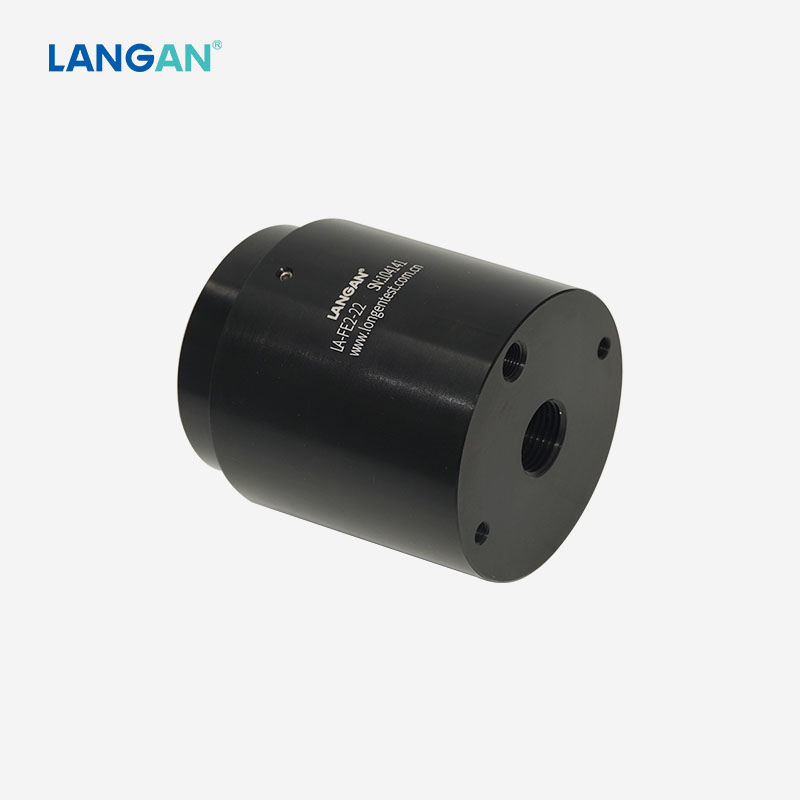

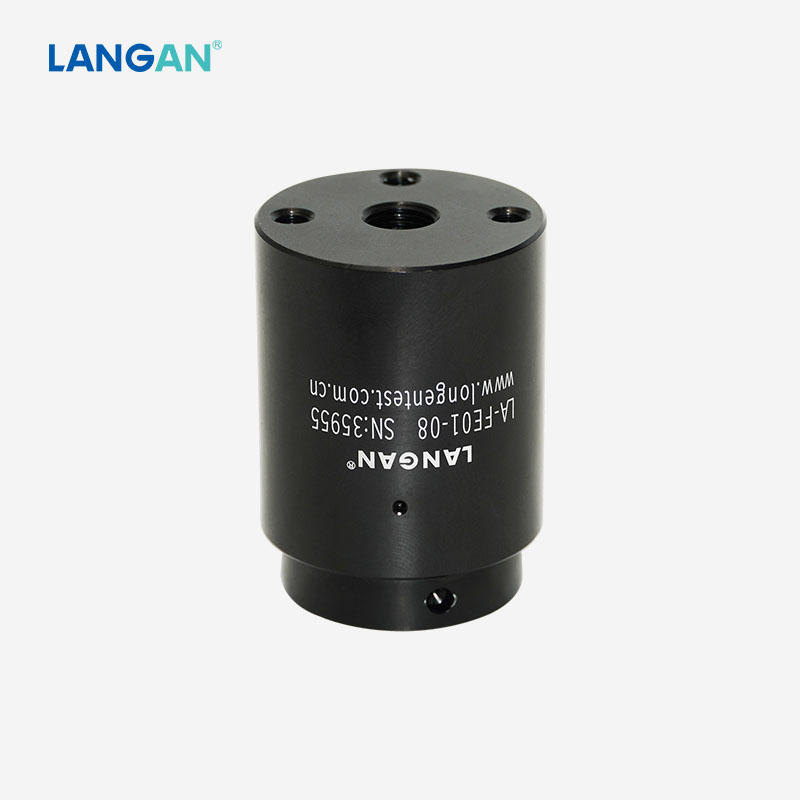

LANGAN® Quick Connector Catalog
LANGAN® LA-FE Leak Test Quick Connector Selection Guide
| Technical data | |

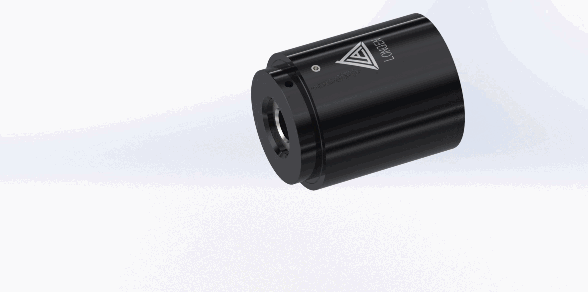

| Products name | LANGAN® LA-FE leakage test coupler for pneumatic pressure and function testing |
| Connection type | Connection to straight tube, swaged & flared tube, beaded tube and barbed tube |
| Operating pressure (PS) | Port B: From vacuum up to Max. 35 bar, other designs on request |
| Actuation method | Pneumatic acutation |

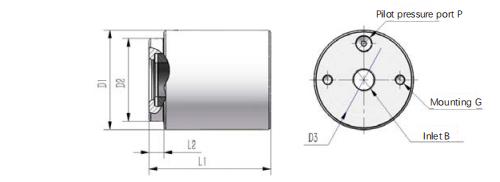

| Pilot pressure | Port P: 4-12 bar compressed air with pilot pressure booster up to 42 bar hydraulic pressure |
| Leak rate | 1*10-3mbar.l/s(10-4 Pa.m³/s) |
| Temperature range | +5℃~+80℃ |
| Material | Housing/piston/seal housing: made of aluminium |
| Sealing material | NBR for threaded applications, urethane seals for high-wear applications are optional |
1. Specification: LANGAN® LA-FE automated quick connectors for leak test achieve instant, leak free connections for pressure and vacuum testing, fluid filling and flushing. It seals tubes and hoses reliably and quickly.
Fitted with elastic seals, the LA-FE is ideal for sealing round and rough surfaces as well as the test pieces with wide tolerance ranges. Thanks to the pneumatic acctuation, the connector is particularly well suited for automation of test procedures. The connector doesn't apply axial force or lateral force on the test piece.
2. Operating instruction:
Please strictly follow the operation steps. Improper operation can cause poor sealing, leakage and risk of connection failure resulting in damage or injury. Do not disconnect the connector while under pressure. Damage or injury may occur.
◆ Secure the quick connector with a suitable fixturing device. Carefully place the connector straight into the test piece;
◆ Apply pilot pressure to the connector. Then the connector achieves a pressure-tight connection.
◆ Apply the required test pressure to media inlet to start the test process.
◆ After the end of the test process, vent the media line completely. Make sure to depressurize the connector before releasing the connection.
◆ Depressurize the pilot pressure line.
◆ The connector can be removed straight backward.
3. Application Type：
Pneumatic actuation connection quick connector is used in automated process.

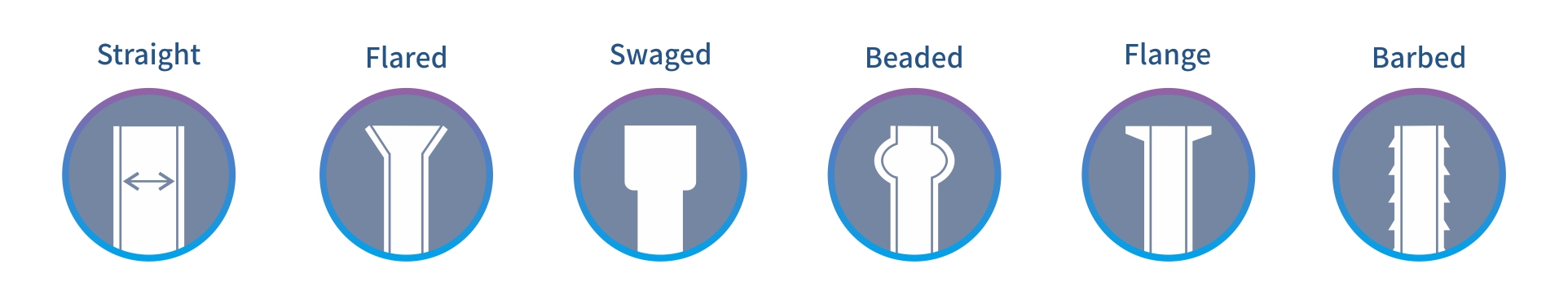

CONNECTS TO:
4. How to order:
For LA-FE pneumatic actuated quick connectors for leak testing, normally we need the following information for ordering:
◆ Part numbers ◆ Pressure range
◆ Media/requested leak rate ◆ Temperature range
◆ Space requirement (interference contours, clearance, etc.)
◆ CAD drawing, 3D model of the test piece
★ For detailed part numbers and dimensions, please download LA-FE Quick Connector Selection Guide.

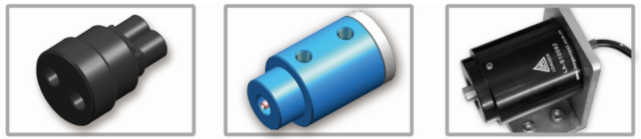

5. Special versions for LA-FE pneumatic pressure and function test quick connector:
The exclusive solution is availabel if the standard versions of LA-FE quick connectors can not meet the needs.
Figure 1: Quick connector for pressure and flow test of straight tubes with close center to center distances.
Figure 2: Quick connector for sealing rubber and other material hoses.
6. How to customize:
Custom LA-FE quick connectors are designed to a specific client's demand to perfectly adapt to the limited testing space, various connections ends and surface conditions (smooth, rough, oily or threaded).
Please click and INQUIRE us.
