LANGAN® Quick Connector Catalog
LANGAN® LA600 Quick Connector Selection Guide
| Technical data | |
| Product name | LANGAN® LA600 jaw locking leak detection quick connector |
| Connection type | For pressure and leak testing of test components with a bead, rim, collar, barb and male thread |
| Operation pressure (PS) | Port B: vacuum up to 50 bar, custom version available on request |
| Leak rate | 1*10-3 mbar.l/s(10-4 Pa.m3/s) |
| Temperature range | +5℃~+80℃ |
| Material | Corrosion resistant stainless steel |
| Sealing material | NBR, other materials available on request |
| Actuation method | Manual actuation by sliding sleeve |

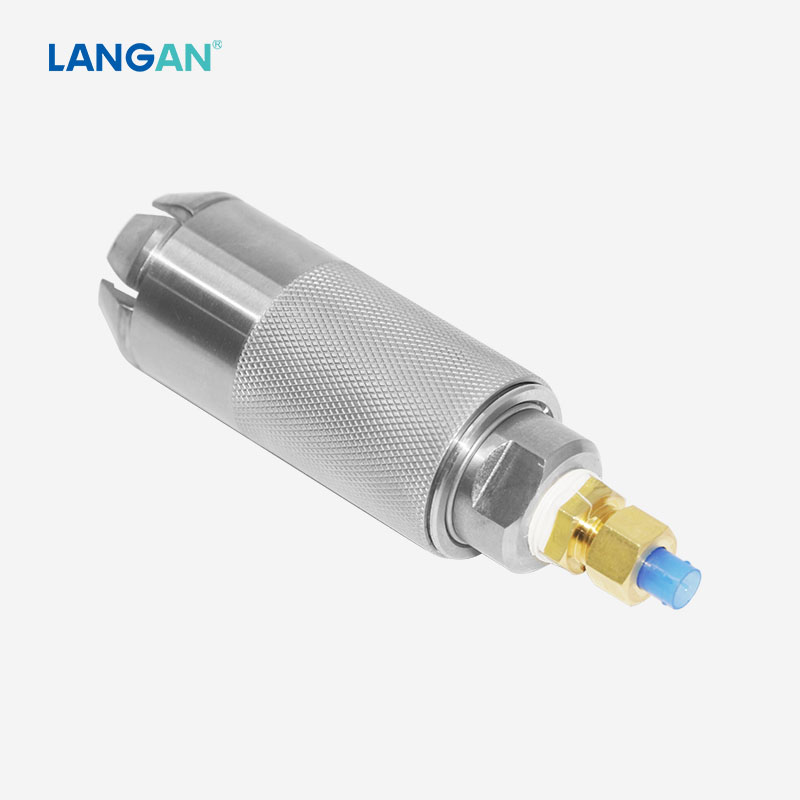

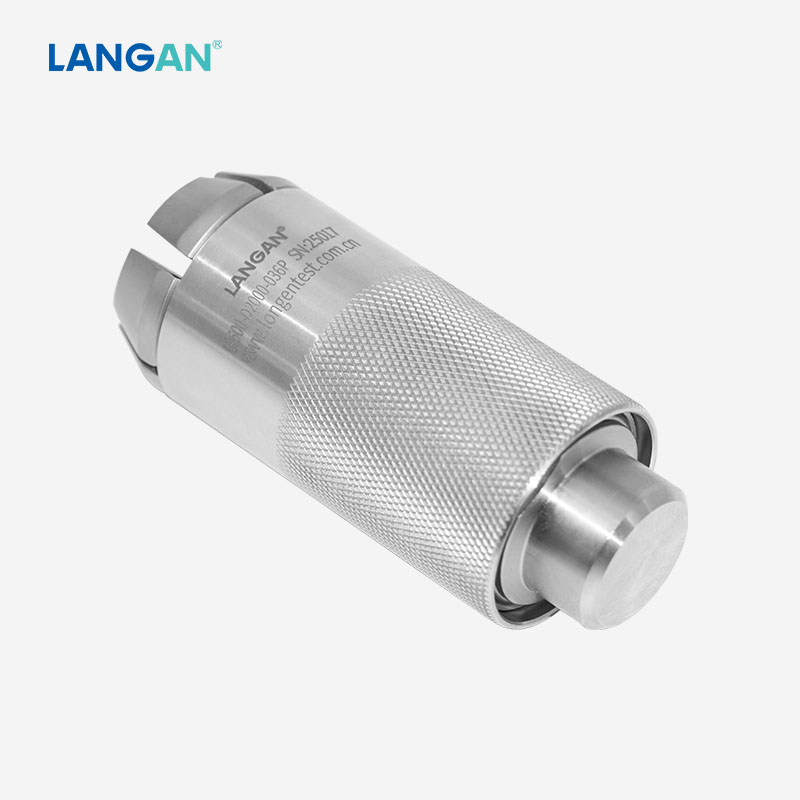

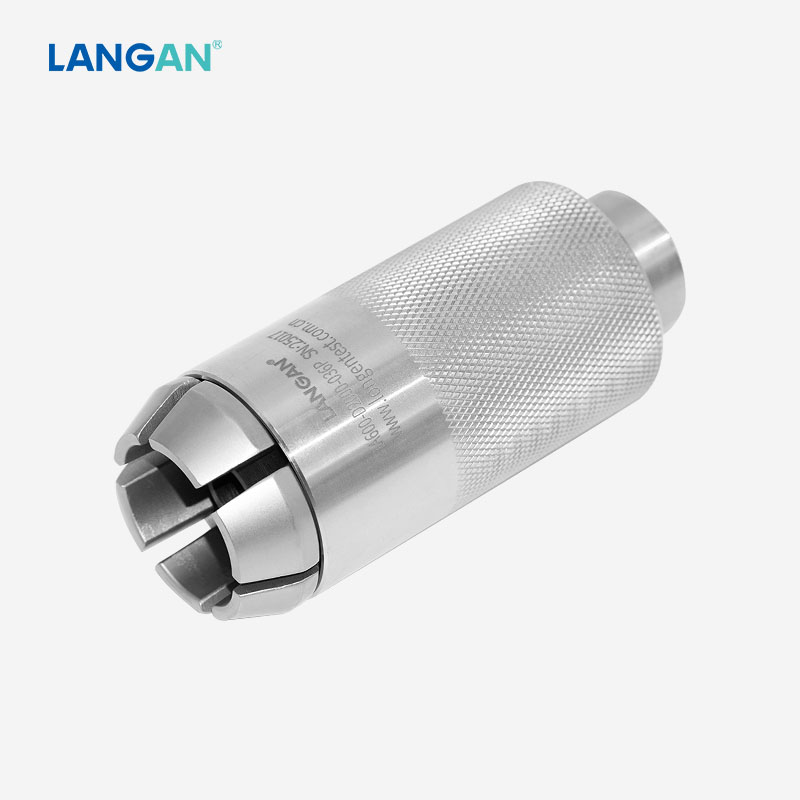

1. Specification: The LA600 jaw locking leak detection quick connector is suitable for pressure and function test of components with a bead, rim, collar, flange, stub or male/external thread.

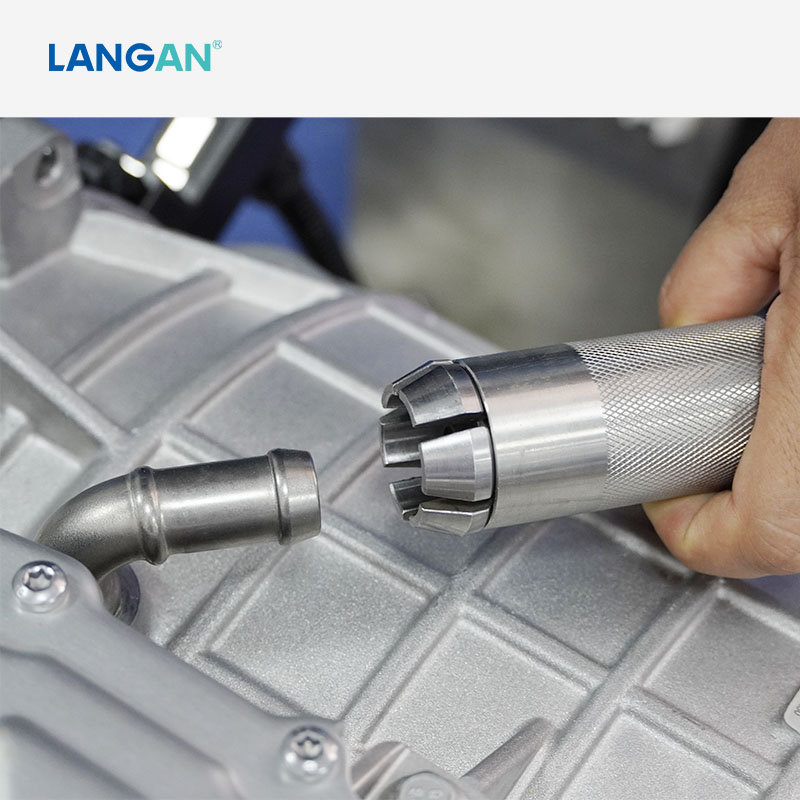

In automotive industry, LA600 standard/custom leak test connector is also used for testing water line and fuel line of the engine, supply line of the brake system, supply line of the compressor and hose ends.
In engine fuel line test application, a build-in internal shut-off is available.

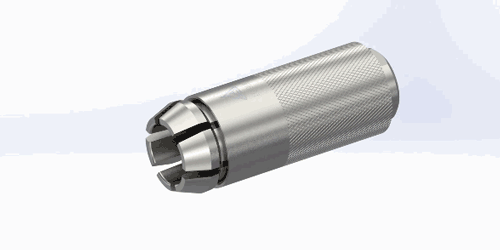

2. Operating instruction:
Please strictly follow the operation steps. Improper operation can cause poor sealing, leakage and risk of connection failure resulting in damage or injury. Do not disconnect the connector while under pressure. Damage or injury may occur.
◆ Grip the connector by the sliding sleeve;
◆ Carefully place the connector straight onto the test piece;
◆ Slide the sleeve forward. Make sure the connector is placed into place. The connector grips itself onto the test piece and achieves a pressure-tight connection;
◆ Apply the required test pressure to media inlet to start the test process;
◆ At the end of the test process, vent the media line completely. Make sure to depressurize the connector before releasing the connection;
◆ Pull the sliding sleeve back to disconnect the connector with the test piece.

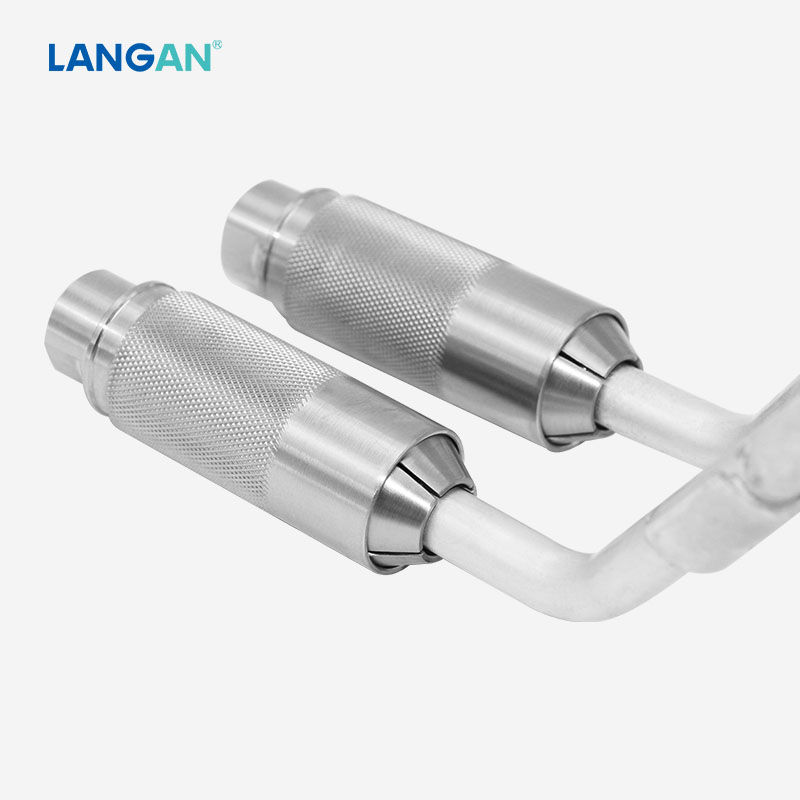

3. Application:
LA600 quick connector for pressure and leak testing of test parts with a bead, rim, collar, male thread at low pressure max up to 50 Mpa.

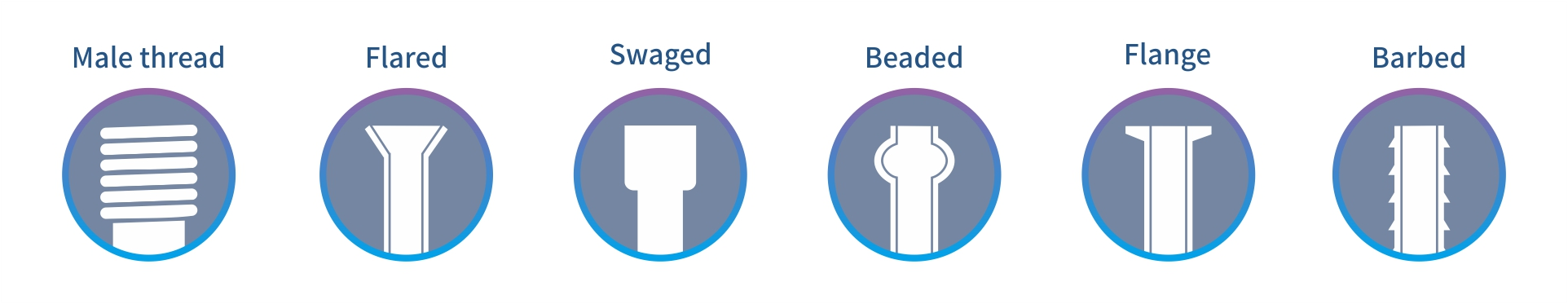

CONNECTS TO:
4. How to order:
For LA600 quick connectors, normally we need the following information for ordering:
◆ Part numbers ◆ Pressure range
◆ Media/requested leak rate ◆ Temperature range
◆ Space requirement (interference contours, clearance, etc.)
◆ CAD drawing, 3D model of the test piece

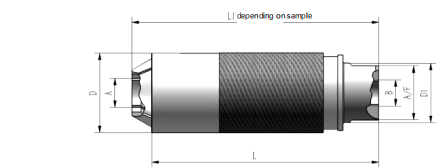

★ For detailed part numbers and dimensions, please download LA600 Quick Connector Selection Guide.
5. How to customize:
Custom leak test connectors are designed to specific client's demands to perfectly adapt to testing space, various connection ends and surface conditions. Please click and INQUIRE us.
