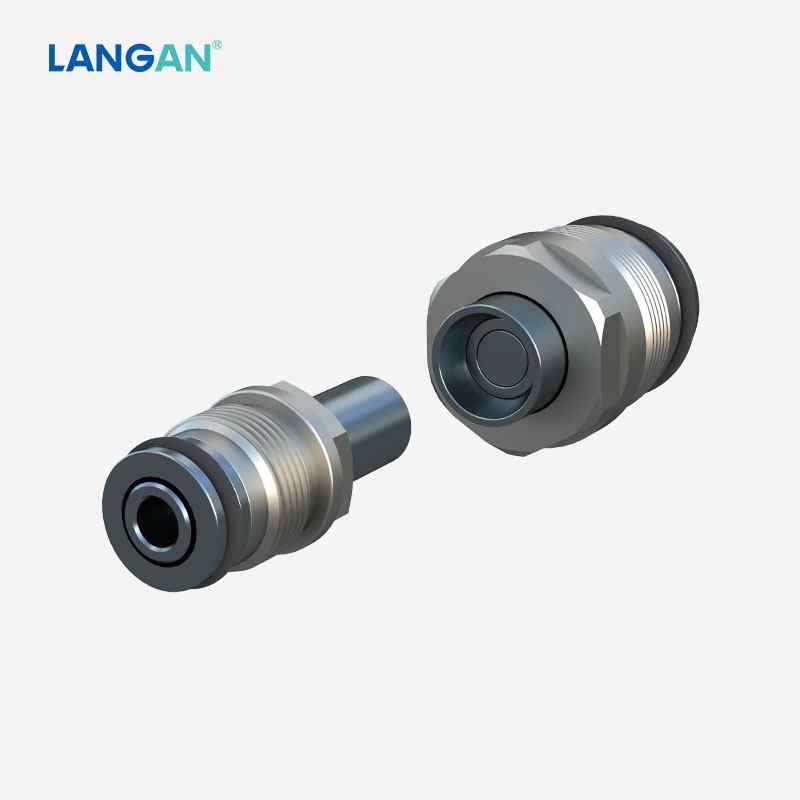

CG6 Quick Release Coupling

With the development of science and technology, the application of functional components, such as converters, power transformation, distribution equipment, T/R components, lasers, supercomputers, high-power transmitter receivers and batteries, has brought great benefits to life, scientific research and production. However, cooling problems of heating modules on these components have become the key factor to restrict the performance improvement.

We have developed several types of quick-release couplings for quick connection of fluid cooling system. The couplings are light, compact and having good flowing performance.

1. Application:

● Cooling of electronics                                              ● Medical

● Water cooling                                                           ● Thermoregulation

2. Fluids

● Coolant           ● Heat transfer oil            ● Kerosene

● Esters             ● Glycol Water

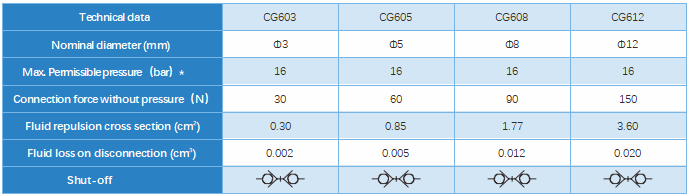

3. Technical characteristics:

● Material: Aluminium alloy with surface treatment

* Please contact us to confirm the max. permissible pressure when the operating temperature exceeds 150℃.

● The choice of elastomer seals depends on the fluid and the operating temperature.

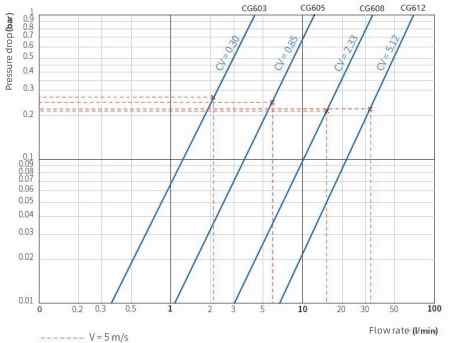

● Hydraulic flow /Pressure drop charts

Test fluid: water;  Direction of flow: plug->socket;  Max flow at the 5m/s velocity

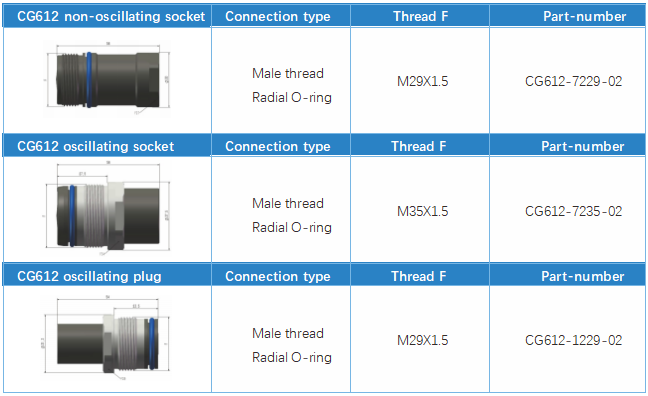

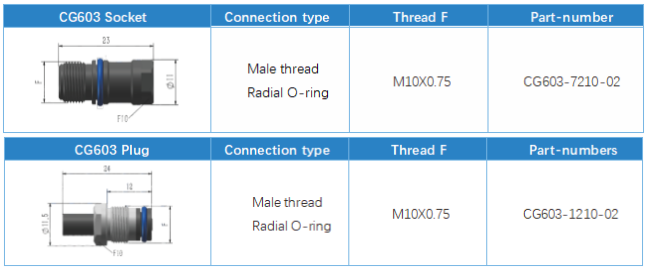

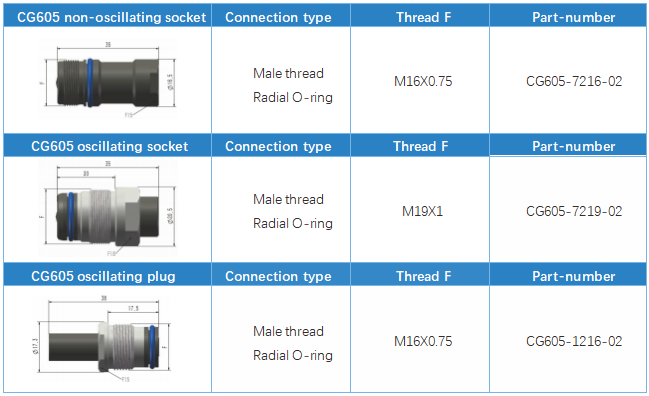

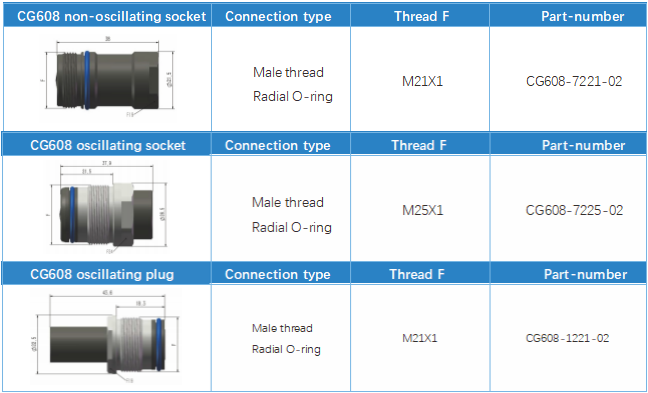

4. Part numbers:

∗ Please contact us for other types of designation;

∗∗ We reserve the right to amend the specification without prior notice.

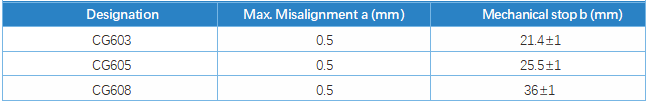

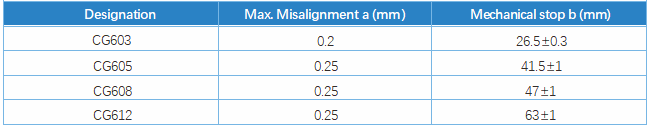

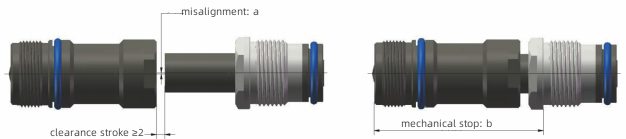

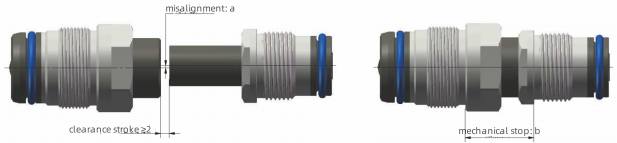

5. Installation:

6. Ordering:

As a manufacturer of quick coupling for liquid cooling circuit, LANGAN provides cost-effective and quality guaranteed quick couplings to various industries for thermal control solutions. Custom-tailored quick release couplings that suit your needs are available on request.

If you are interested in our non-spill quick-release coupling, Please feel free to inquire us.
