◆ High-grade material
◆ Connection in seconds
◆ Fast, safe and repetitive connection
◆ Time and cost saving
◆ Sealing without wrench, sealant or tape

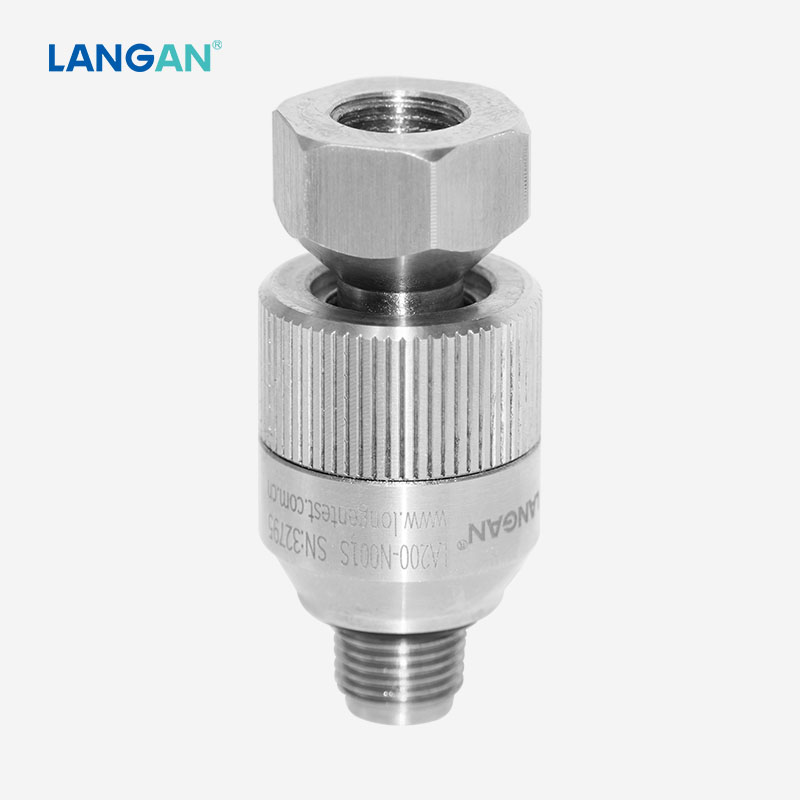

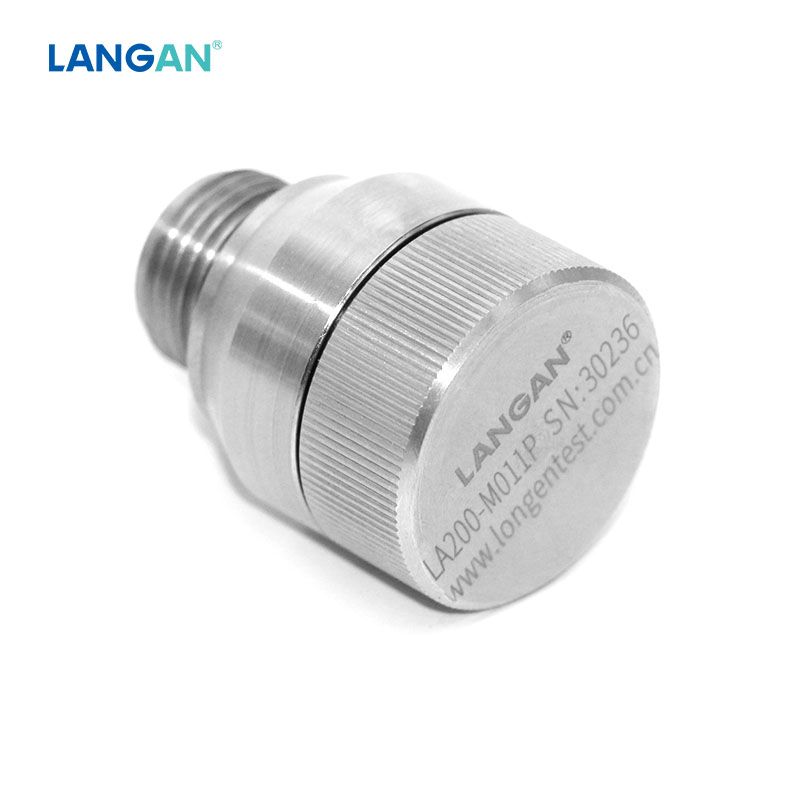

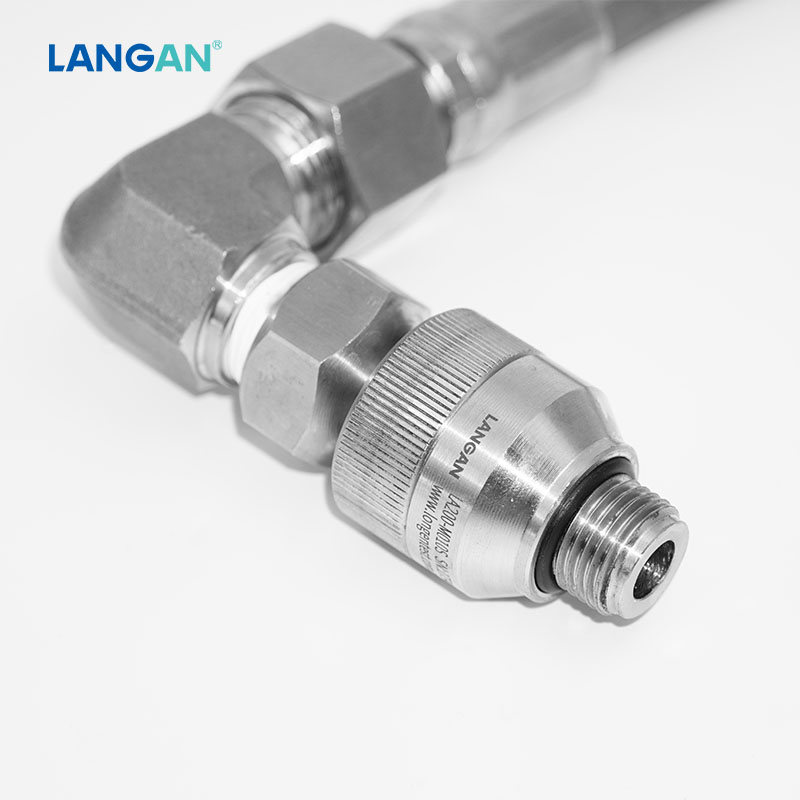

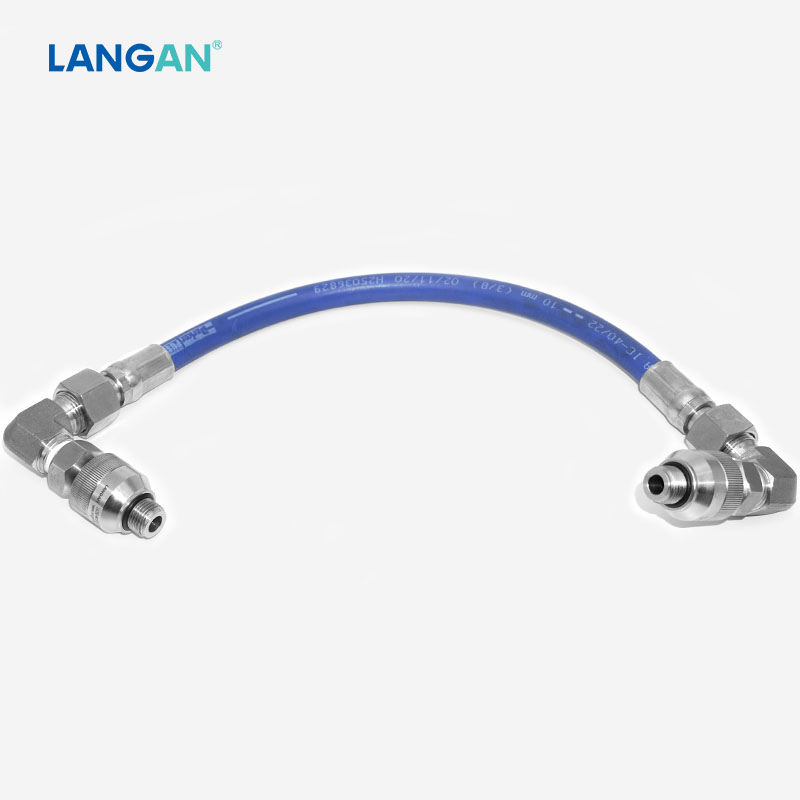

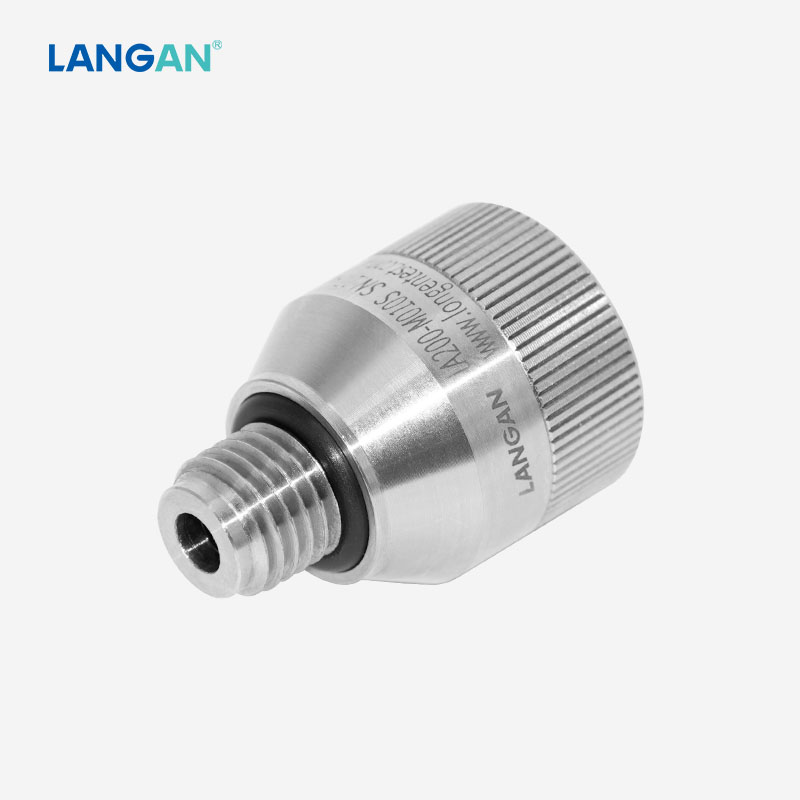

◆ 3 versions available as options

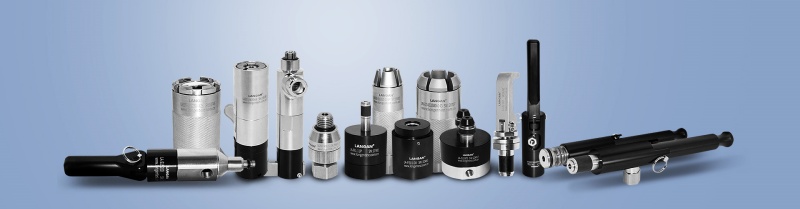

LANGAN® Quick Connector Catalog
LANGAN® LA200 Pressure & Vacuum Test Quick Connector Selection Guide
| Technical data | |
| Product name | LANGAN® LA200 High Pressure 345 bar quick connector for pressure and vacuun testing |
| Connection type | Internal threaded components |
| Operating pressure (PS) | Port B: vacuum up to 345 bar |
| Actuation method | Manual actuation |
| Leak rate | 1*10-3 mbar.l/s(10-4 Pa.m3/s) |
| Temperature range | +5℃~+80℃ |
| Materials of construction | Corrosion resistant stainless steel |
| Sealing material | NBR for main seals, other materials available on request |
| Spare seals | On request |
| Sample for quality check | Available on request |
| MOQ | 1 pcs |
| Lead time | 4 weeks against the payment |
1. Description: LANGAN® LA200 pressure and vacuum test quick connector, manufacturer direct
• Manual twist sealing connection to female threaded components
• Pressure and vacuum testing, filling and plugging up to 345 bar
• Sealing without wrench, sealant or tape
• Leak-tight seal eliminates leakage of media

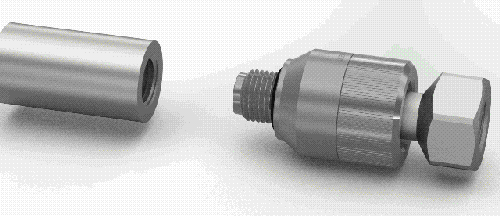

2. Operation instructions:
Please strictly follow the operation steps. Improper operation can cause poor sealing, leakage and risk of connection failure resulting in damage or injury. Do not disconnect the connector while under pressure. Damage or injury may occur.
◆ Hand-tighten LA200 quick connector carefully into the thread of the test piece;
◆ Gently tighten it with your fingers to make the O-ring properly compressed;
◆ The pressure-tight connection is established and the required test media can be introduced to start the test process;
◆ At the end of the test process, vent the media line completely. Make sure to depressurize the connector before releasing the connection;
◆ Unscrew the connector to disconnect it with the test piece.
3. Application:
LA200 quick connector is suitable for leak testing of engines, tanks, pumps, oil cooler and new energy mobility etc.
CONNECTS TO:
4. How to order:
LA200 pressure tets quick connectors are designed for internal threaded components. Normally we need the following information for ordering:
◆ Part numbers ◆ Pressure range
◆ Media/requested leak rate ◆ Temperature range
◆ Space requirement (interference contours, clearance, etc.)
◆ CAD drawing, 3D model of the test piece

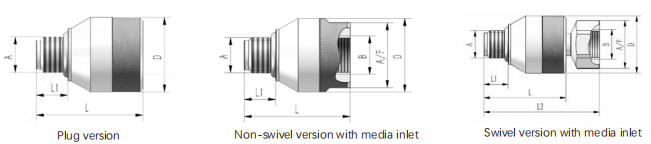

★ For detailed part numbers and dimensions, please download LA200 Quick Connector Selection Guide.
5. How to customize:
As a prefessional leak test quick connector manufacturer, custom quick connectors are designed to specific client's demand to perfectly adapt to testing space, various connection ends and surface conditions. Please click and INQUIRE us.
