LANGAN® Quick Connector Catalog
LANGAN® LA802 Leak Test Quick Connector Selection Guide
| Technical data | |

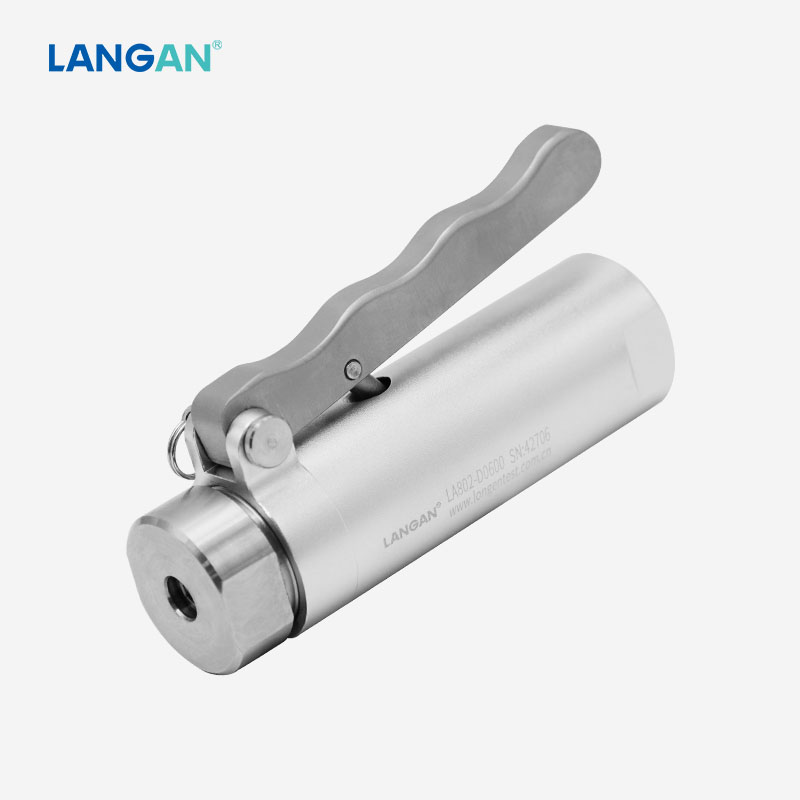

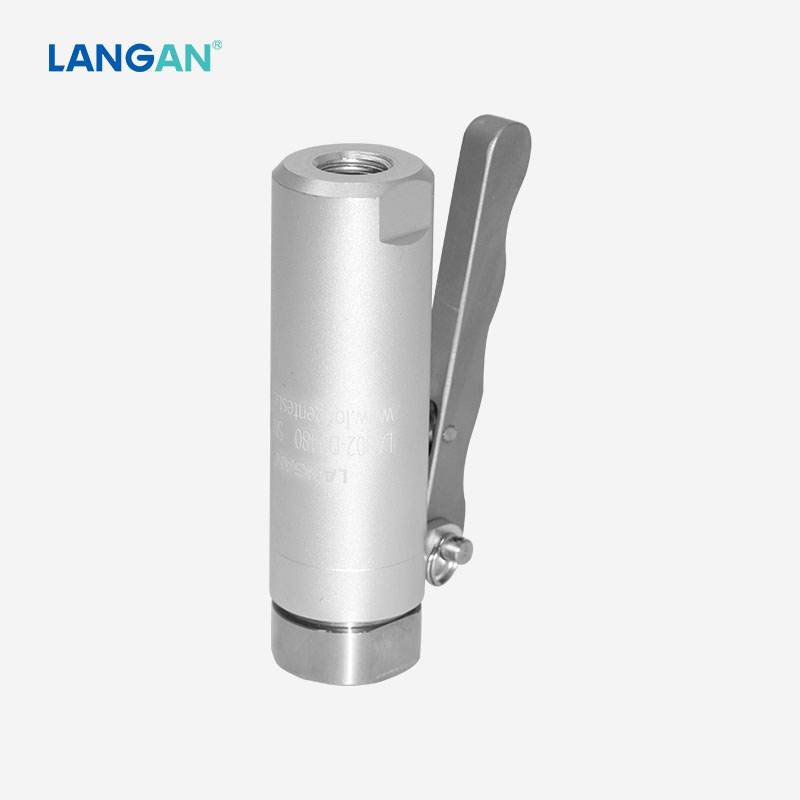

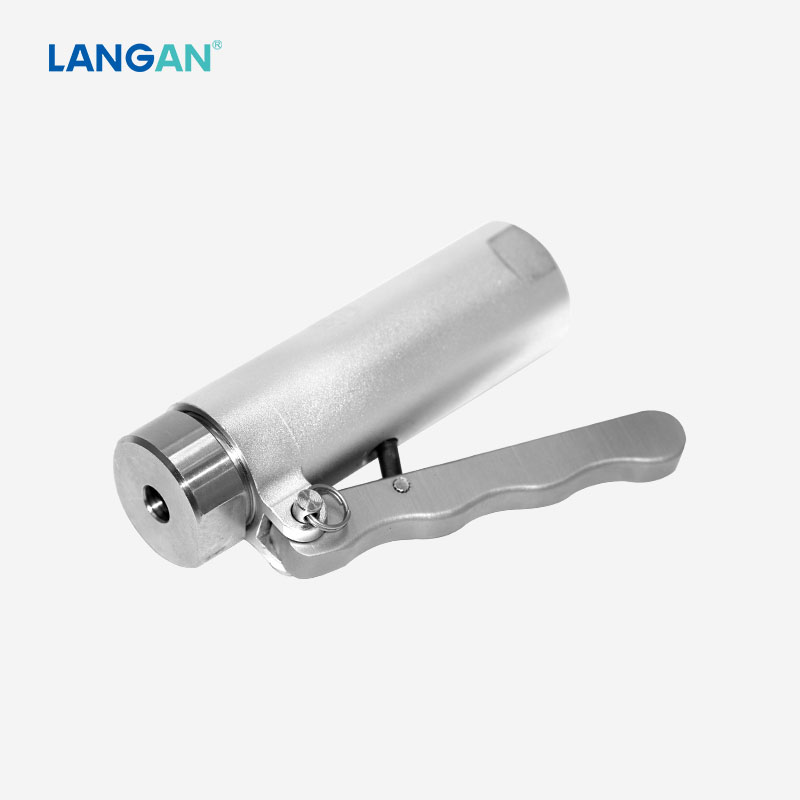

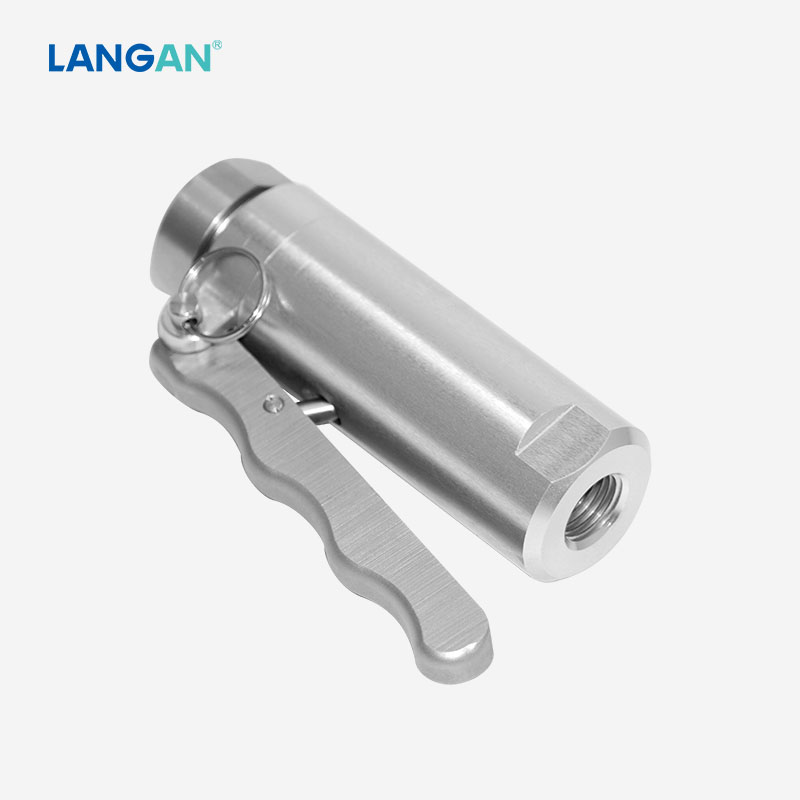

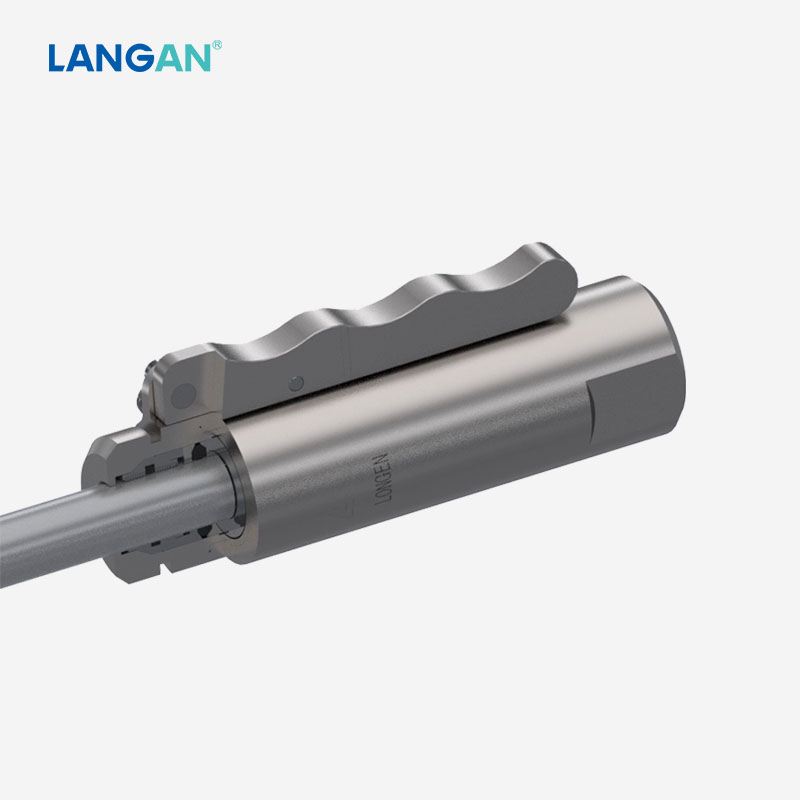

| Product name | LANGAN® LA802 pressure and vacuum leak test quick connector for straight tubes on engine, motor and other automotive parts |

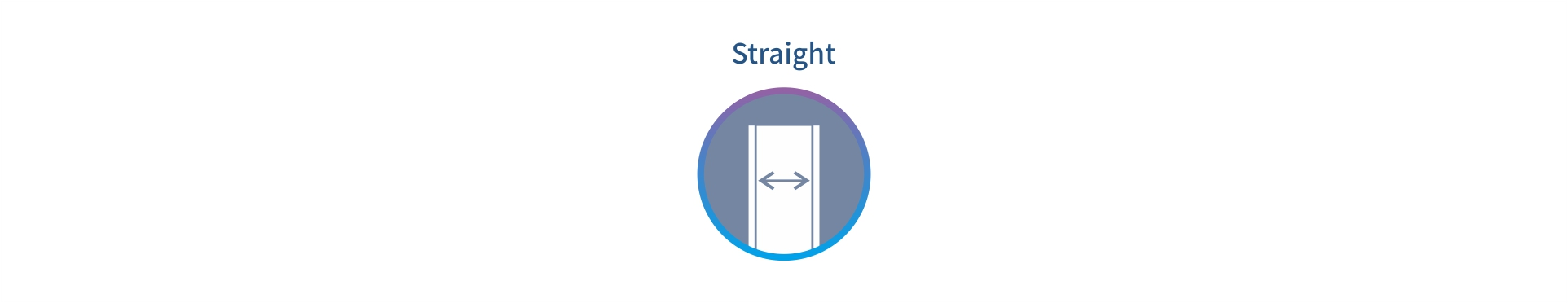

| Connection type | For connection of straight tubes |
| Operation pressure (PS) | Port B: vaccum up to 100 bar |
| Actuation method | Lever actuation |
| Material hardness of test piece | Harness 20-28 HRC, connection to copper and other tubes |
| Leak rate | 1*10-3 mbar.l/s(10-4 Pa.m3/s) |
| Temperature range | +5℃~+80℃ |
| Material |
Clamping jaws: Corrosion resistant stainless steel; Housing: Anodized aluminum |
| Sealing material | NBR, other materials available on request (depending on media) |
1. Specification: LANGAN® LA802 quick connector provides pressure-tight connections on straight tubes with an inside Ø of 3.5mm to 16mm. It features ease of operation with lever actuation, which eliminates the time-consuming of hand or wrench tightening operation and maximizes production efficiency. Pressure tight connection is achieved in just seconds. Lateral forces, that distorts the test piece or the filling port, are not initiated when connecting or disconnecting the connectors.
LA802 is fitted with a build-in safety component which ensures that no disconnection happens when the pressure has decreased below 5 bar.
2. Operating instruction:
Please strictly follow the operation steps. Improper operation can cause poor sealing, leakage and risk of connection failure resulting in damage or injury. Do not disconnect the connector while under pressure. Damage or injury may occur.

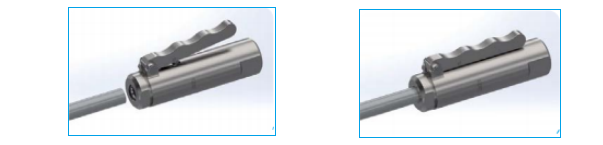

◆ Grip the connector and press the hand lever;
◆ With the hand lever pressed, insert the test piece carefully and straightly into the test piece. Release the hand lever. Then the connector achieves a pressure-tight connection. Pull the connector slightly to make sure that the connector is firmly connected in place;
◆ Apply the required test pressure to media inlet to start the test process;
◆ At the end of the test process, vent the media line completely. Make sure to depressurize the connector before releasing the connection;
◆ Actuate the lever and pull the connector straight back to disconnect the connector with the test piece.
3. Application:
Jaw locking mechanism perfectly connects the straight tubes. CONNECTS TO:
4. How to order:
The LA802 quick connectors are designed for straight tubes. Normally we need the following information for orders:
◆ Part numbers ◆ Pressure range
◆ Media/requested leak rate ◆ Temperature range
◆ Space requirement (interference contours, clearance, etc.)
◆ CAD drawing, 3D model of the test piece

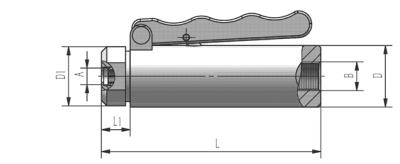

★ For detailed part numbers and dimensions, please download LA802 Quick Connector Selection Guide.
5. How to customize:
Custom quick connectors are designed to a specific client's demand to perfectly adapt to the limited testing space, various connections ends and surface conditions. Please click and INQUIRE us.
