◆ Connection in seconds
◆ High-grade material
◆ Automation possible
◆ No time-consuming hand or wrench tightening required
◆ Available with shaft extensions for access to seal remote ports or multiple ports with close center to center distances
LANGAN® Quick Connector Catalog

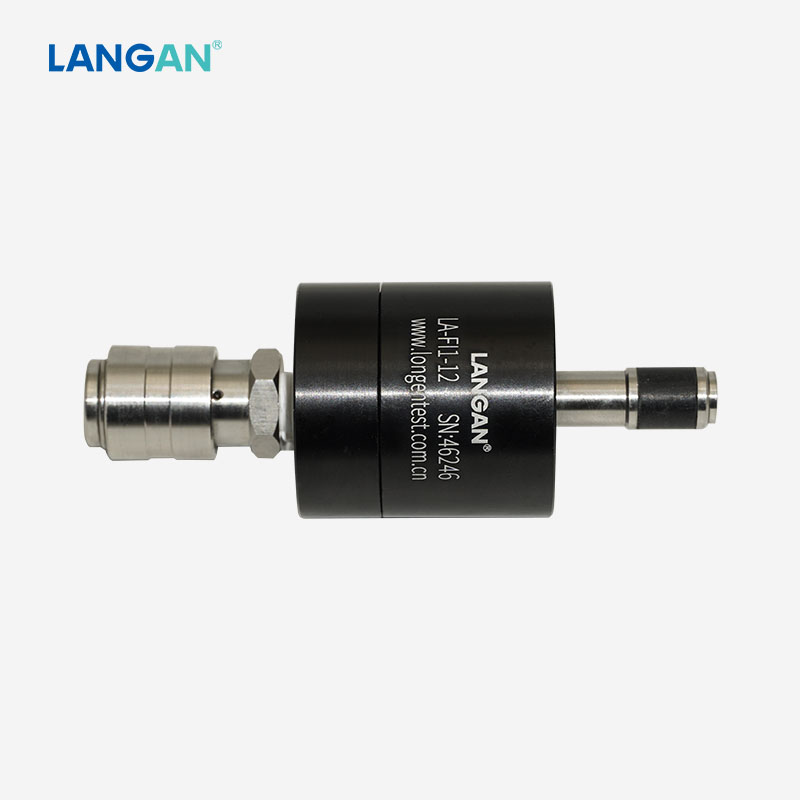

LANGAN® LA-FI Leak Test Quick Connector Selection Guide
| Technical Data | |

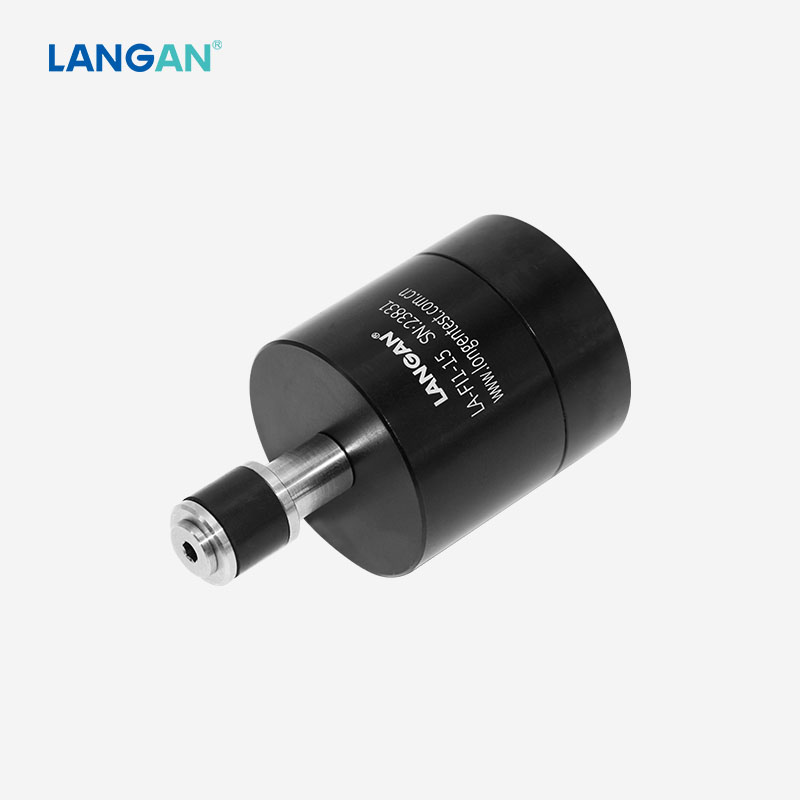

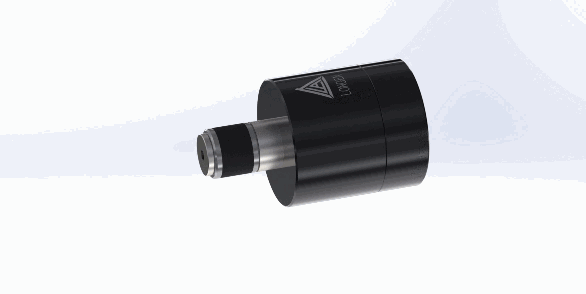

| Product name | LANGAN® LA-FI automated pneumatic actuated quick connector for leak test |
| Connection type | For connection of internal/female tubes, threads and holes, flanged ports |
| Operation pressure (PS) |
Port B: Vacuum up to Max. 9 bar, other designs on request Note: For pressurized applications, LA-FI must be secured by a fixturing device. On vacuum application, LA-FI doesn't need to be secured. |
| Pilot pressure | Port P: 4-12 bar compressed air |
| Leak rate | 1*10-3 mbar.l/s(10-4 Pa.m3/s) |
| Temperature range | +5℃~+80℃ |
| Material | Housing/piston/seal housing: made of aluminium |
| Sealing material | NBR, urethane seals for high-wear applications are optional, for threaded application as standard |
1. Specification:

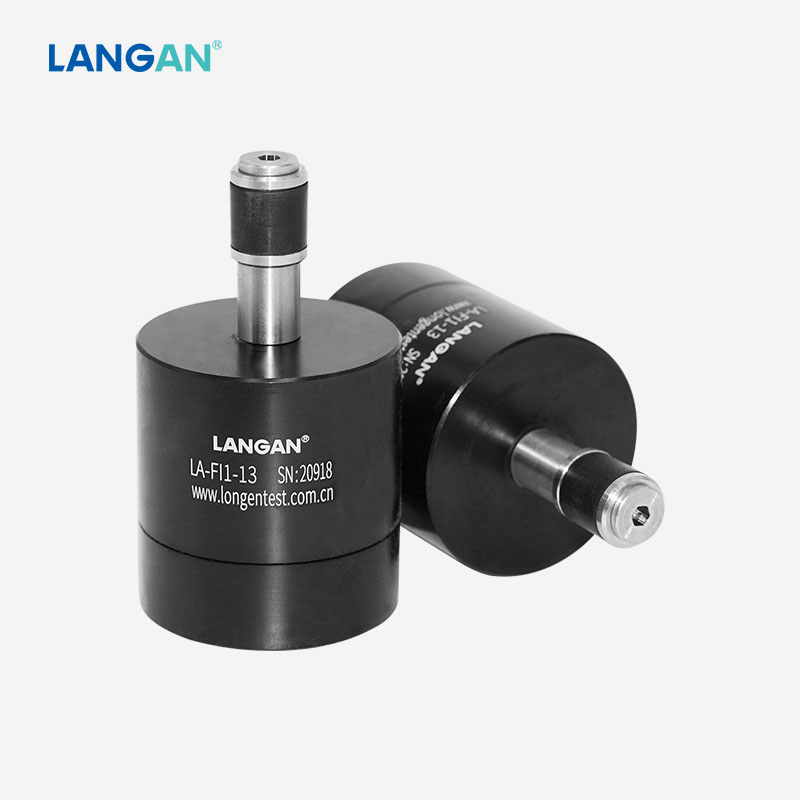

LANGAN® LA-FI automated quick connectors instantly seals inside bores, irregular or rough holes and internal threaded components.
Thanks to the pneumatic actuation, the connector is particularly well suited for quality check during production. The connector relies on frictional force between the seal and the surface of the test piece. Therefore the contact surface is not allowed to be exposed to water or other lubricants. The connector does not exert lateral force and axial force on the test piece.
2. Operating instruction:
Please strictly follow the operation steps. Improper operation can cause poor sealing, leakage and risk of connection failure resulting in damage or injury. Do not disconnect the connector while under pressure. Damage or injury may occur.

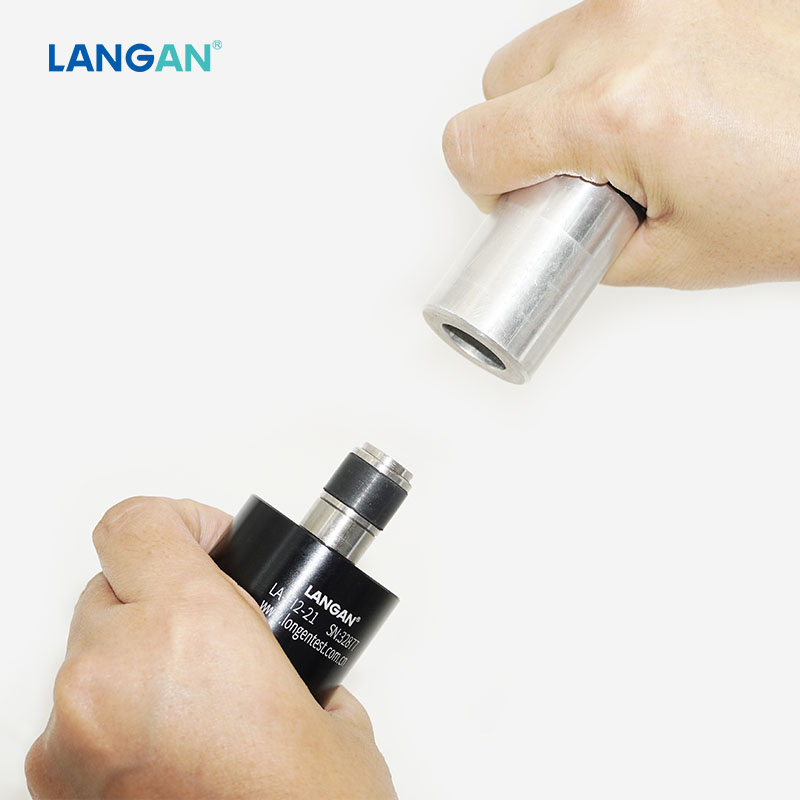

◆ Secure the quick connector with a suitable fixing device. Carefully place the connector straight into the test piece.
◆ Apply required pilot pressure to the connector. Then the pressure-tight connection is achieved.
◆ Then apply the require test pressure to media inlet to start the test process.
◆ At the end of the test process, vent the media line completely. Make sure to depressurize the connector before releasing the connection.
◆ Depressurize the pilot pressure line.
◆ The connector can be removed straight backward.
3. Application:

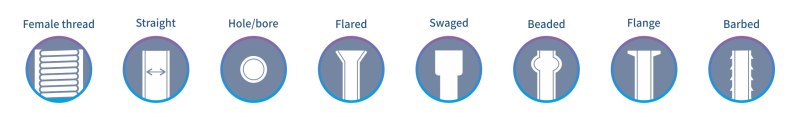

Pneumatic actuation connection quick connectors are applied in automated process. Connection types available as below:
CONNECTS TO:
4. How to order:
The LA-FE pneumatic actuated quick connectors for leak test are designed for female threaded components.
Normally we need the following information for orders:
◆ Part numbers ◆ Pressure range
◆ Media/requested leak rate ◆ Temperature range
◆ Space requirement (interference contours, clearance, etc.)
◆ CAD drawing, 3D model of the test piece

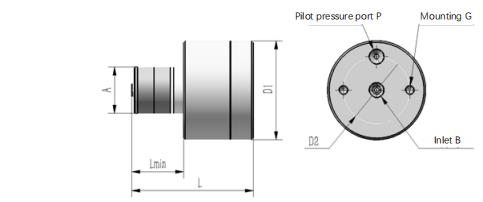

★ For detailed part numbers and dimensions, please download LA-FI Quick Connector Selection Guide.
5. Special types of LA-FI leakage detection quick connectors:
If standard products do not meet your needs, an exclusive solution can be provided for special types.

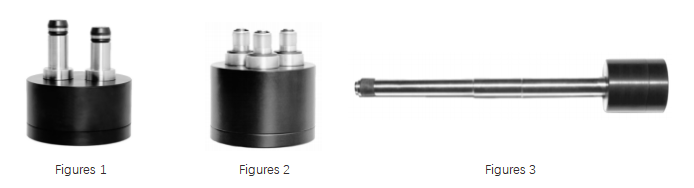

Figure 1 and 2 are quick connectors for pressure testing or sealing multiple ports with close center to center distances;
Figure 3 is a shaft extension quick connector used for sealing surface that the standard connector can not reach.

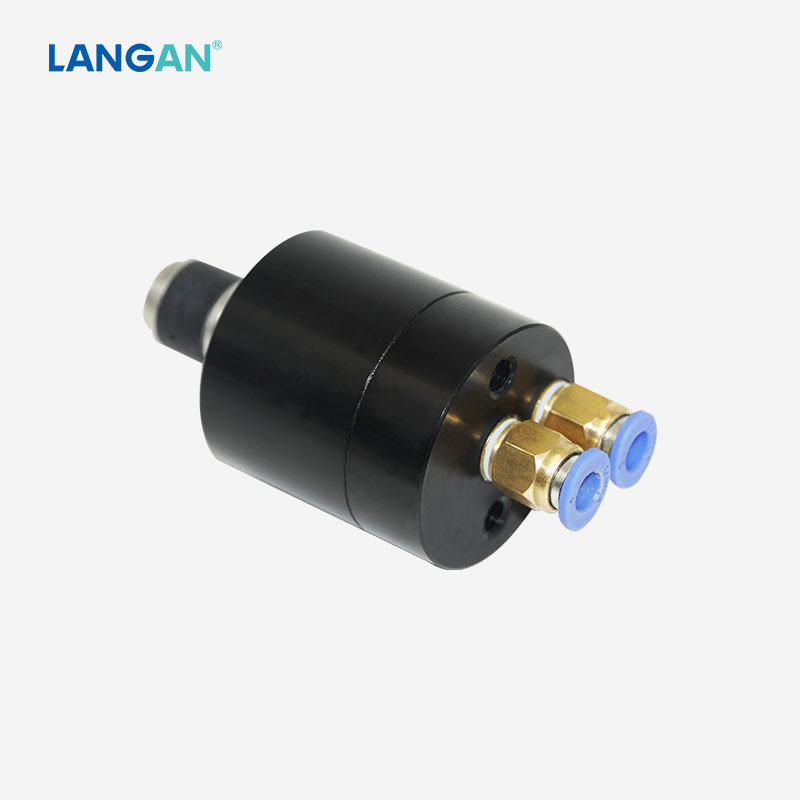

6. How to customize:
Customized LA-FI leak test quick connectors are designed to a specific client's demand to perfectly adapt to the limited testing space, various connections ends and surface conditions (smooth, rough, oily or threaded). Please click and INQUIRE us.
