● Ease of operation;
● Sealing electrical connectors within seconds;
● Different variants available;
● Smaller sizes are designed to meet the applications with narrow space.
Air vent valve on Electric Vehicles (EVs) applications rapidly equalize pressure variations caused by temperature changes while providing a reliable barrier to dirt, dust, water and automotive fluids. Without the correct venting solution in place, these challenges can impact reliability and durability. Therefore, the vent valve plays an important role for the performance of the Electric Vehicles.

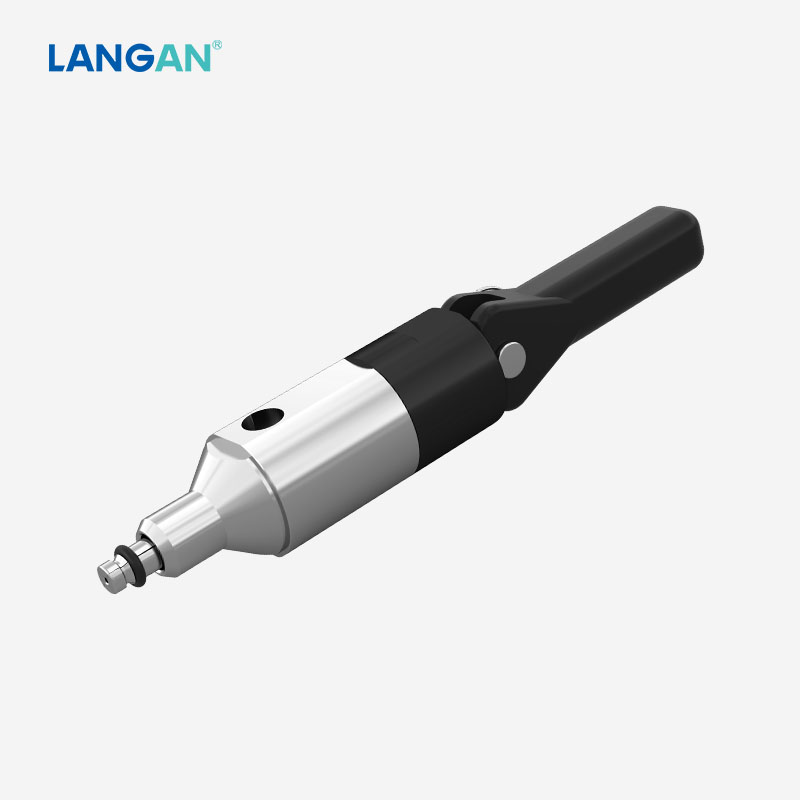

LANGAN® LA153 series Electric Vehicles (EVs) motor and inverter leak test quick connector provides quick, optimized and cost efficient air tightness test solutions for vent valve hole.
1. Technical data
| Product name | LANGAN® LA153 series leak test quick connector for Electric Vehicles vent valve hole |
| Test media | Non-corrosive gas |
| Main body material | Stainless steel |
| Sealing material | NBR |
| Max. permissible pressure | 0.6 bar (Please indicate when the test pressure exceeds 0.6 bar) |
2. Specification:
Standard versions can meet most test conditions and requirements. For special and harsh test conditions, please contact with us to customize electric vehicle leak test solutions.

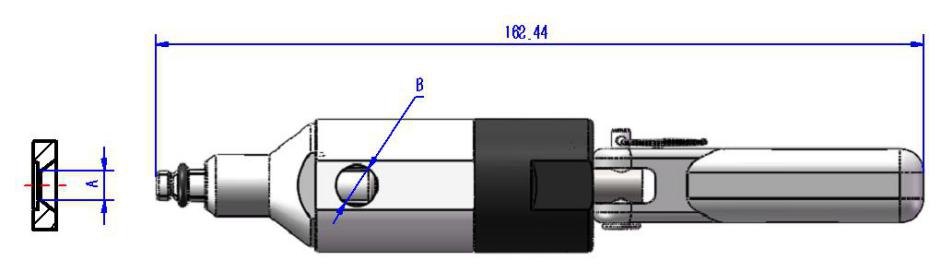

| A | Part number | Test Port |
| 6.4 | LA153-T0064A | G1/8 |
3. Challenges:
Common hole size for the vent valve is φ6.4, which is relatively small. and there are various structures next to mounting holes. It is hard for conventional solutions to establish perfect sealing. And conventional solutions are not applicable for all the mounting holes. Therefore, special solutions must be customized for the vent valve.
4. Solutions:
LANGAN® LA153 series leak test connectors perfectly overcome all the above challenges.
In the space of φ6.4, segmented jaw locking mechanism is ultimately used to hook the bottom of the hole, and the large cone on the outside of the hole is sealed, and meanwhile the test connector is stabilized by coordination of the connector cone and the product cone. Customized quick connectors for specific requirements are available with 3D drawings.
5. Application:

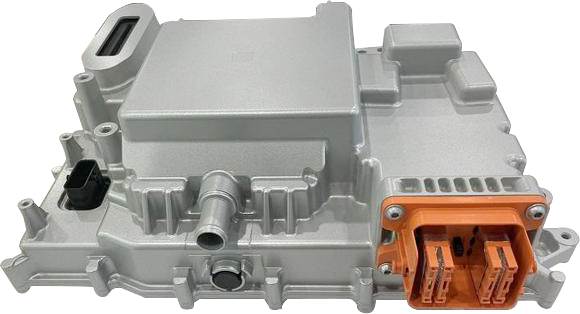

For air tightness testing of vent valve mounting hole of the Microprogrammed Control Unit (MCU), inverter, Power Distribution Unit (PDU) and Motor housing of Electric vehicles (EVs)
6. How to customize:
Custom leak test quick connectors for Electric Vehicles (EVs) are designed to a specific client's demand to perfectly adapt to testing space, various connection ends and surface conditions with unwavering standard. Please click and INQUIRE us.
For detailed dimensions, please download
LANGAN® Quick Connector for EV Sector Catalog
