◆ Reuseable without factory service ;
◆ Installation at the dispenser;
◆ Small and compact design;
◆ Build-in self cleaning filter(40µm): For filtering particles and road grime to provide clean hydrogen;
◆ Check valve in the venting line
Hydrogen Fueling Components Manual
BC5-35A Breakaway Coupling Selection Guide
| Technical data | |

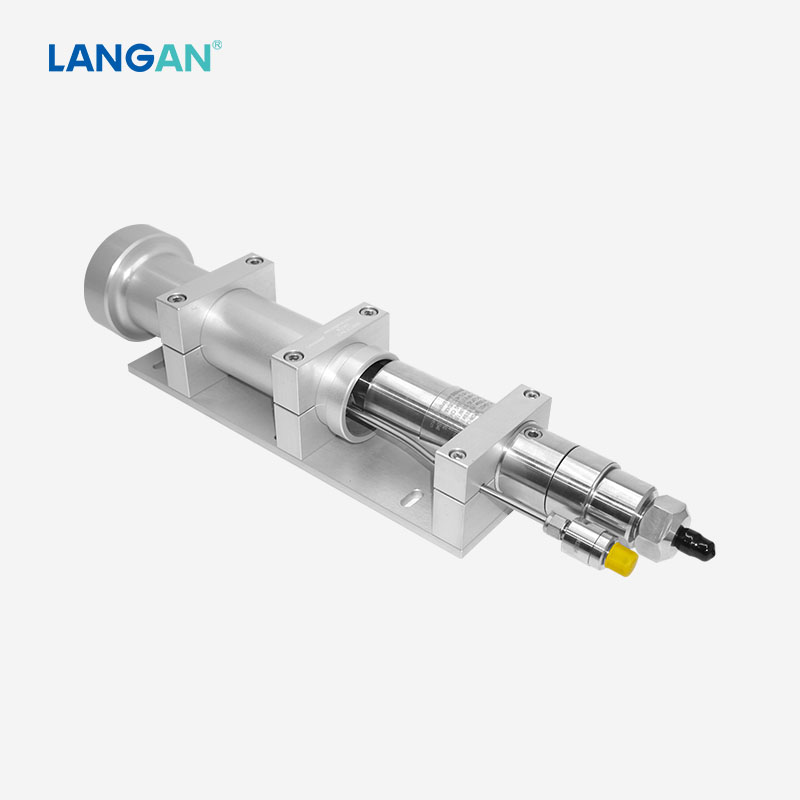

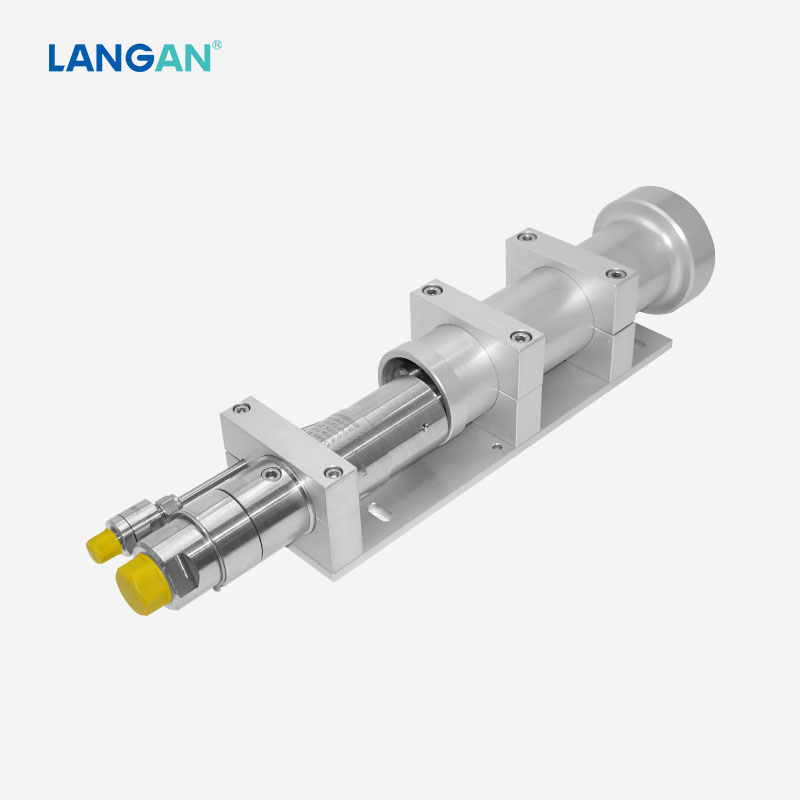

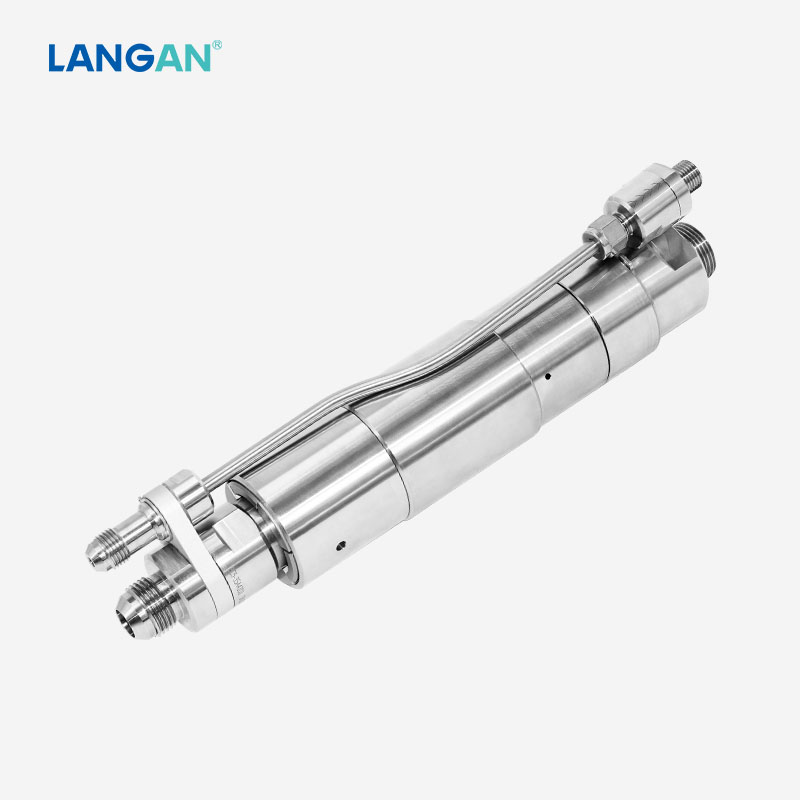

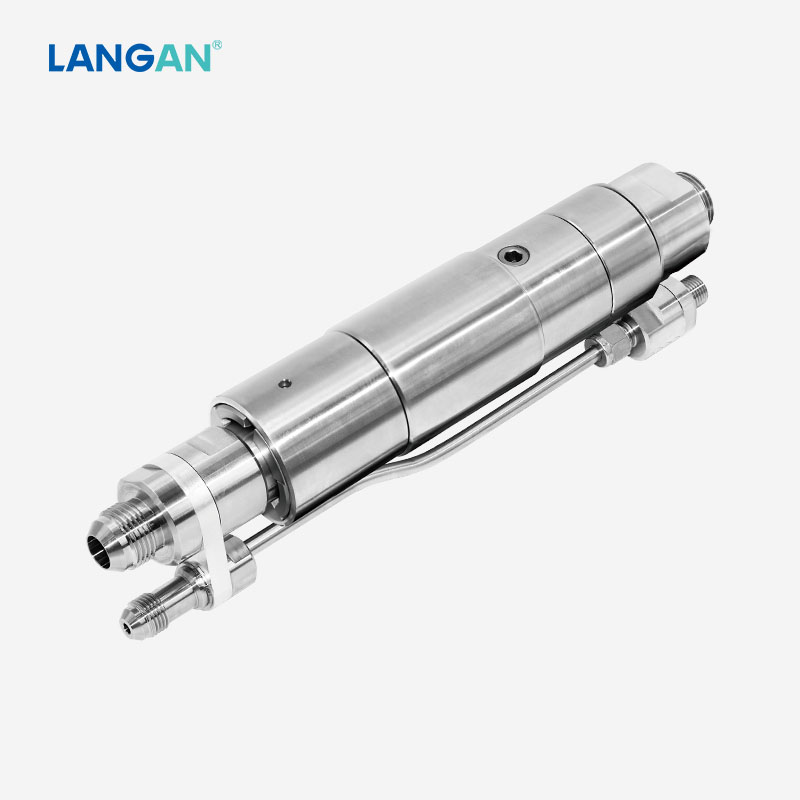

| Product name | LANGAN® BC5-35A Emergency Breakaway Coupling for hydrogen fueling station |
| Nominal bore DN | 12mm |
| Pressure range | PN=35MPa, PS=45MPa |
| Media temperature range | -20℃∼+85℃ |
| Ambient temperature range | -40℃∼+85℃ |
| Material | Corrosion resistant stainless steel |
| Sealing material | Hydrogen resistant |
| Breakaway force | 222-667N |
| Design | With or without gas venting hose, with filter (40µm) |
1. Description:
LANGAN® BC2-35A inline breakaway coupling, installed between fueling hose and the venting hose, is designed to disconnect the hose from connection with the dispenser if the vehicle drives off with the nozzle still in the filling port. Breakaway Coupling is used to prevent pull away accidents. It maximizes the protection to the fueling receptacle, the nozzle and the dispenser.
The integrated internal filter provides clean hydrogen, minimizing the effect that the dirt and road grime particles have on the components.
2. Construction:

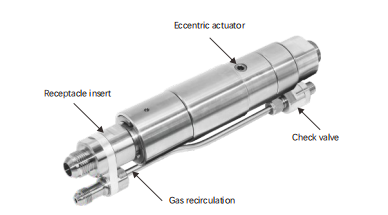

BC2-35A inline breakaway coupling is composed of a coupling body, a receptacle insert and a gas venting hose.
3. Application:
BC2-35A inline breakaway coupling is applied in hydrogen car fueling stations, installed between fueling hose and venting hose.
4. Comparision of LANGAN® Hydrogen Breakaway Couplings:
| Product No. | Type |
Nominal bore DN |
Pressure PN |
Breakaway force | Applicable |
| BC1-35A | Emergency type | Max. 8mm | 35MPa | 222~667N | H2 station for light duty vehicles |
| BC2-35A | Inline type | 8mm | |||
| BC5-35A | Emergency type | 12mm | H2 station for buses&trucks | ||
| BC6-35A | Inline type | 12mm | |||
| BC1-70A | Emergency | 4mm | 70MPa | H2 station for light duty vehicles | |
| LD1-35A | Unloading column mounted | 8mm | 35MPa | 600~900N | H2 station for long tube trailer |
5. How to order:
With years of experience and extensive expertise in hydrogen fueling industry, we are prefessional for hydrogen refueling solutions. Please feel free to INQUIRE us. Customized hydrogen receptacles are on request.
★ For more details, please download
BC5-35A Breakaway Coupling Selection Guide
