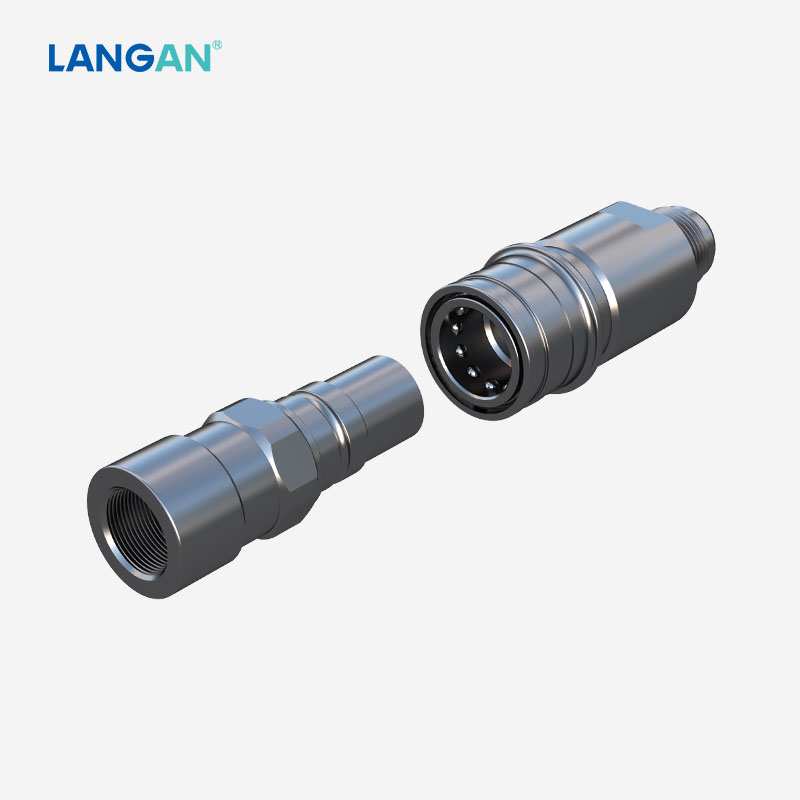

SP2 Quick Release Coupling

With the development of science and technology, the application of functional components, such as converters, power transformation, distribution equipment, T/R components, lasers, supercomputers, high-power transmitter receivers and batteries, has brought great benefits to life, scientific research and production. However, cooling problems of heating modules on these components have become the key factor to restrict the performance improvement.

We have developed several types of quick-release couplings for quick connection of fluid cooling system. The couplings are light, compact and having good flowing performance.

1. Applications:

● Medical                                             ● Data center, supercomputer

● Radar                                                ● Thermoregulation

● Electrocommunication                      ● Water cooling

2. Fluids

● Coolant           ● Heat transfer oil            ● Glycol Water

3. Technical characteristics:

● Material: Aluminium alloy with surface treatment

* Please contact us to confirm the max. permissible pressure when the operating temperature exceeds 150℃.

● The choice of elastomer seals depends on the fluid and the operating temperature.

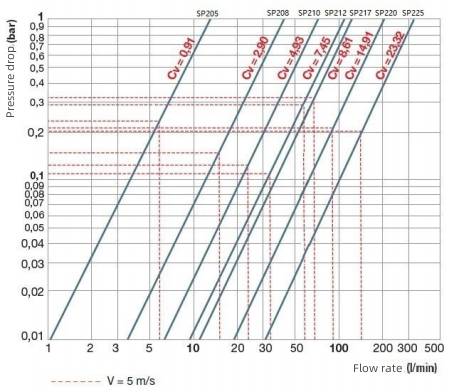

● Hydraulic flow /Pressure drop charts

Test fluid: water;  Direction of flow: plug->socket;  Max flow at the 5m/s velocity

● Customized pressure release valve:

If the quick coupling is exposed to heat which causes pressure to rise. To combat this, a pressure release valve (PRV) can be fitted on the male side. For pressure release valve, please contact us for more information.

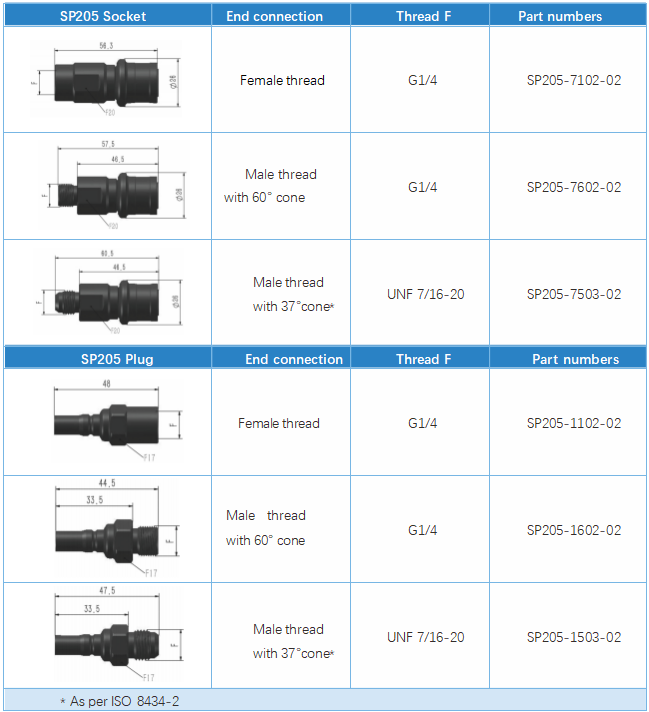

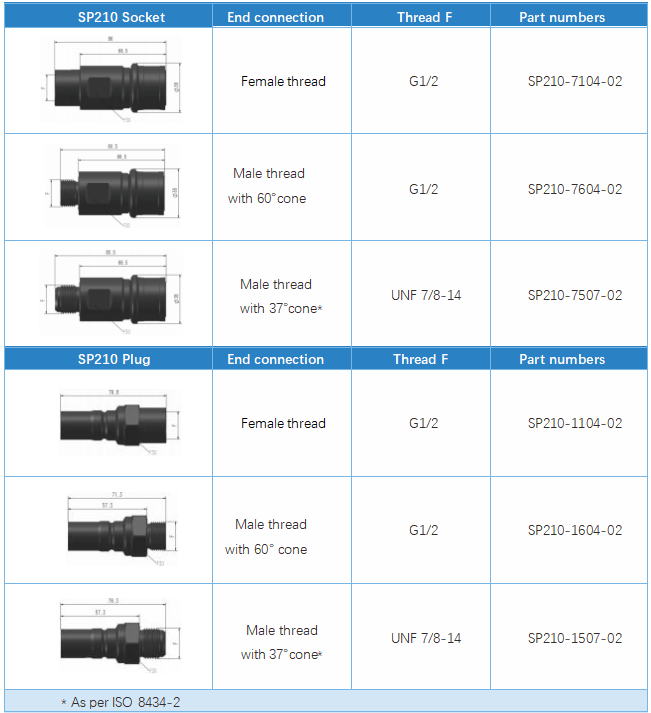

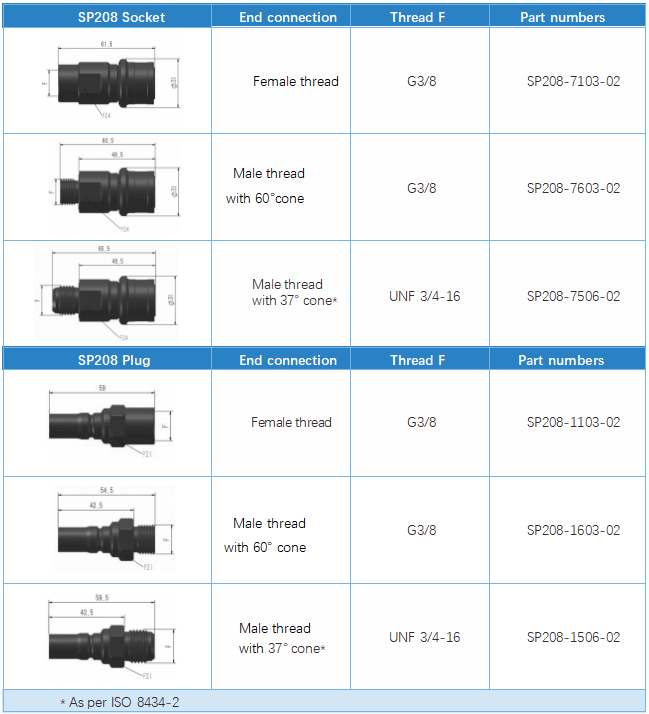

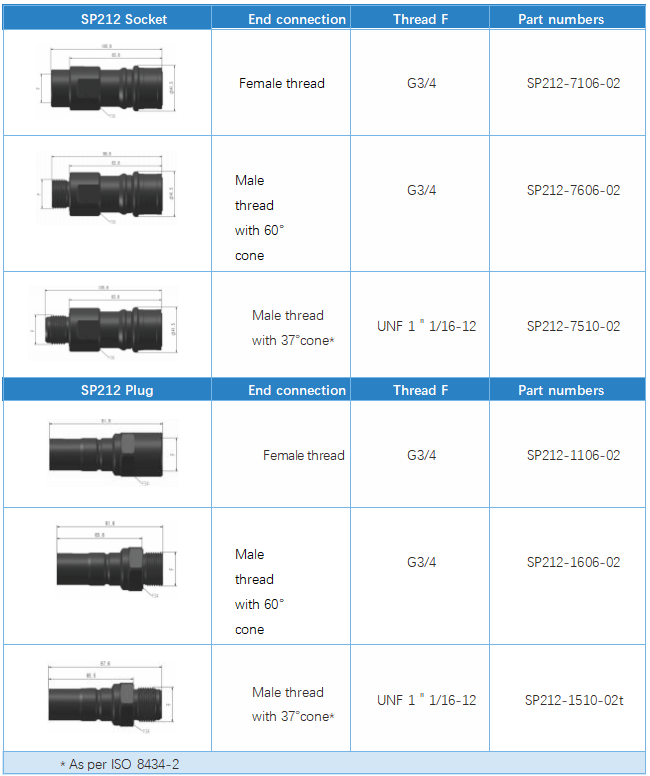

4. Part numbers
