● Compatible with the majority of cooling fluids
● Flat-face, non-drip and no contamination to circuit;
● Covering a large range of temperatures;
● Excellent flow performance and minimum pressure drop
● With a max. misalignment compensation of 1mm
With the development of science and technology, the application of functional components, such as converters, power transformation, distribution equipment, T/R components, lasers, supercomputers, high-power transmitter receivers and batteries, has brought great benefits to life, scientific research and production. However, cooling problems of heating modules on these components have become the key factor to restrict the performance improvement.
We have developed several types of quick-release couplings for quick connection of fluid cooling system. The quick coupling connectors are light, compact and having good flowing performance. They completely get rid of the inconvenience of conventional thread screwing couplings.
1. Application:
● Medical ● Radar
● Data center, Supercomputer ● Thermoregulation
● Electrocommunication ● Broadcasting
● Water cooling
2. Fluids
● Coolant ● Heat transfer oil ● Kerosene
● Esters ● Glycol Water

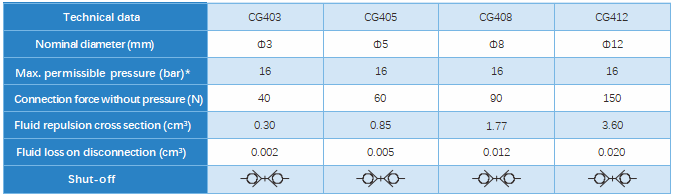

3. Technical characteristics:
● Material: Nickle-plated brass/aluminium alloy
* Please contact us to confirm the max. permissible pressure when the operating temperature exceeds 150℃.
● The choice of elastomer seals depends on the fluid and the operating temperature.
● Hydraulic flow rate/Pressure drop charts
Test fluid: water; Direction of flow: plug->socket; Max flow at the 5m/s velocity

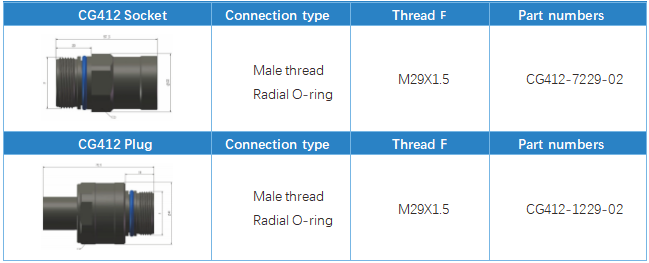

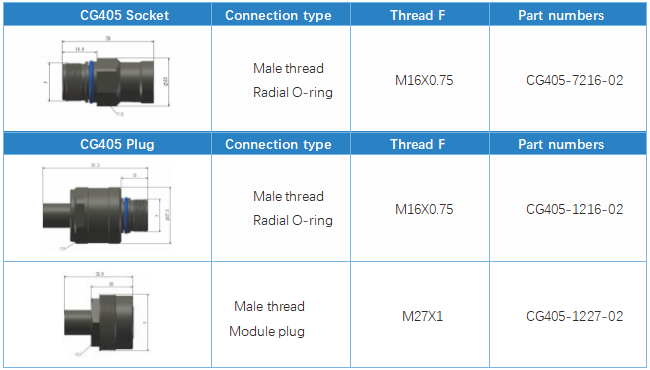

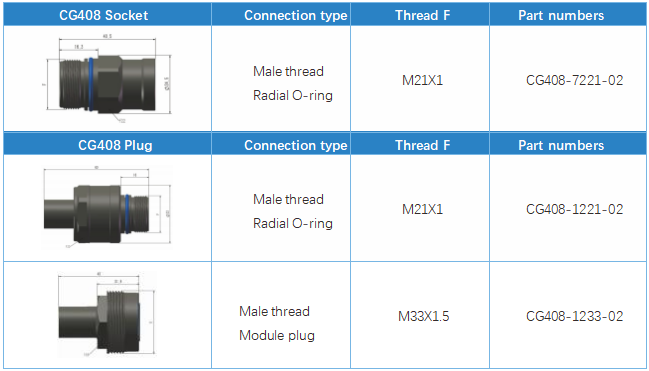

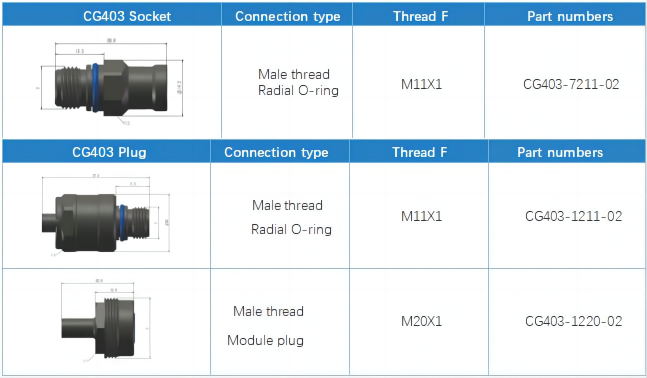

4. Part numbers:
∗ Please contact us for other types of designation;
∗∗ We reserve the right to amend the specification without prior notice.

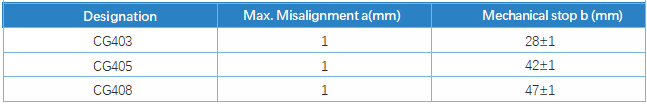

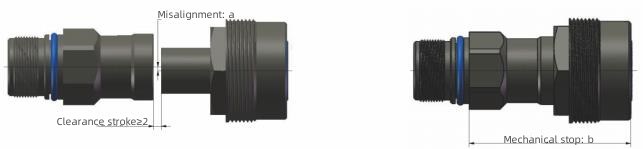

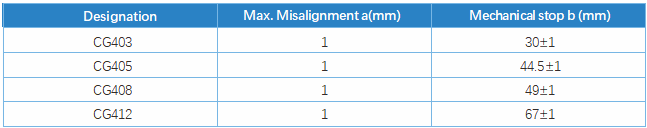

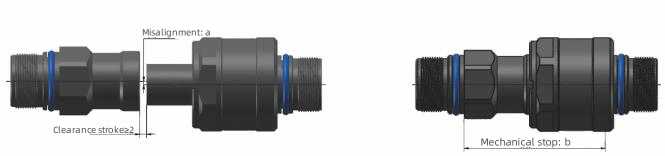

5. Installation:
6. Ordering:
As a manufacturer of quick coupling for liquid cooling circuit, LANGAN provides cost-effective and quality guaranteed quick couplings to various industries for thermal control solutions. Custom-tailored hydraulic quick release couplings that suit your needs are available on request.
If you are interested in our flat-face non-spill quick-release coupling, Please feel free to inquire us.
