LANGAN® Quick Connector Catalog

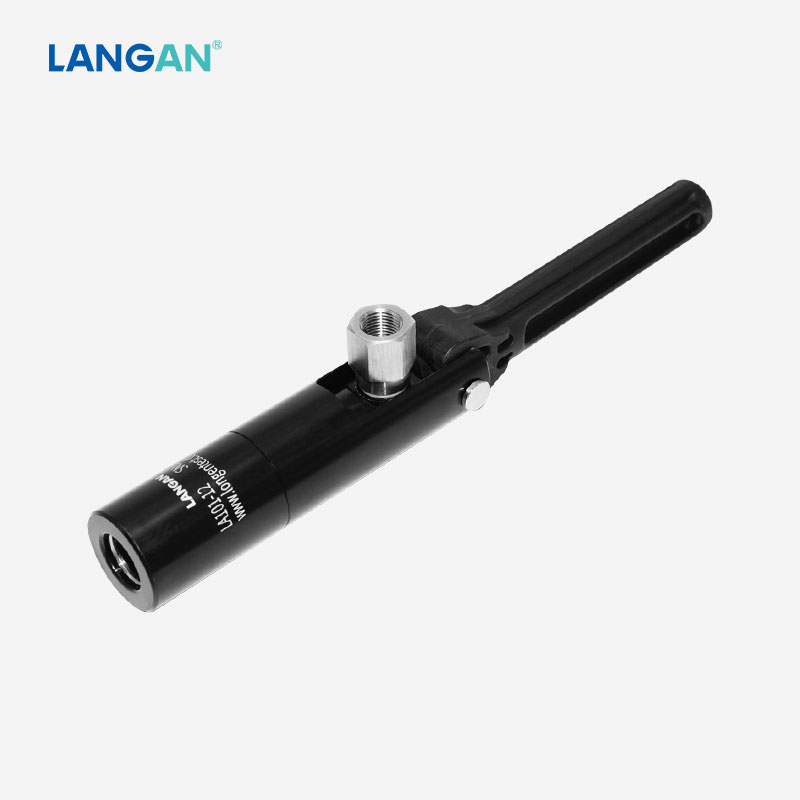

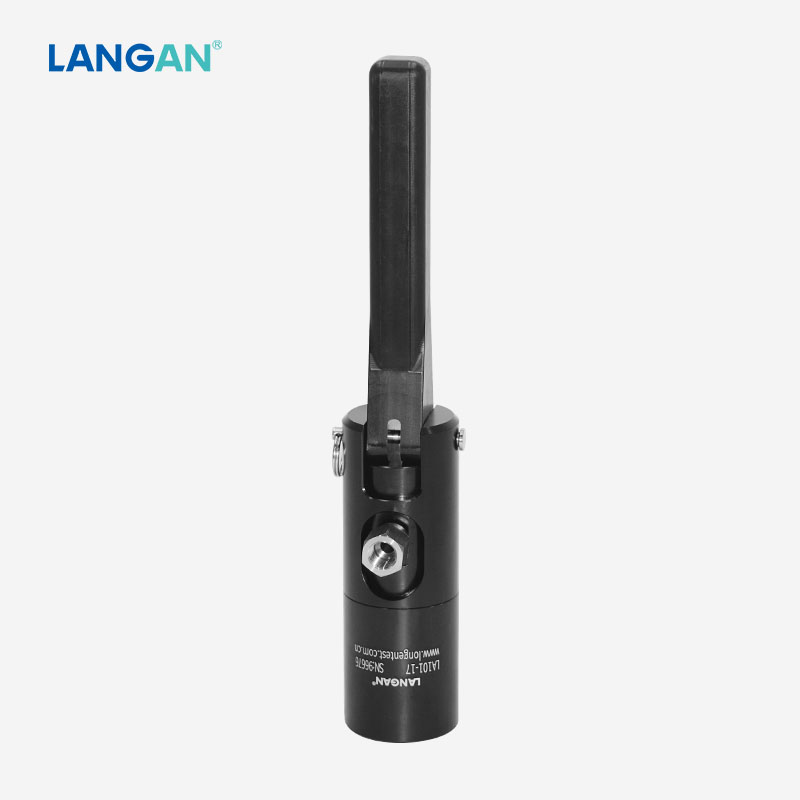

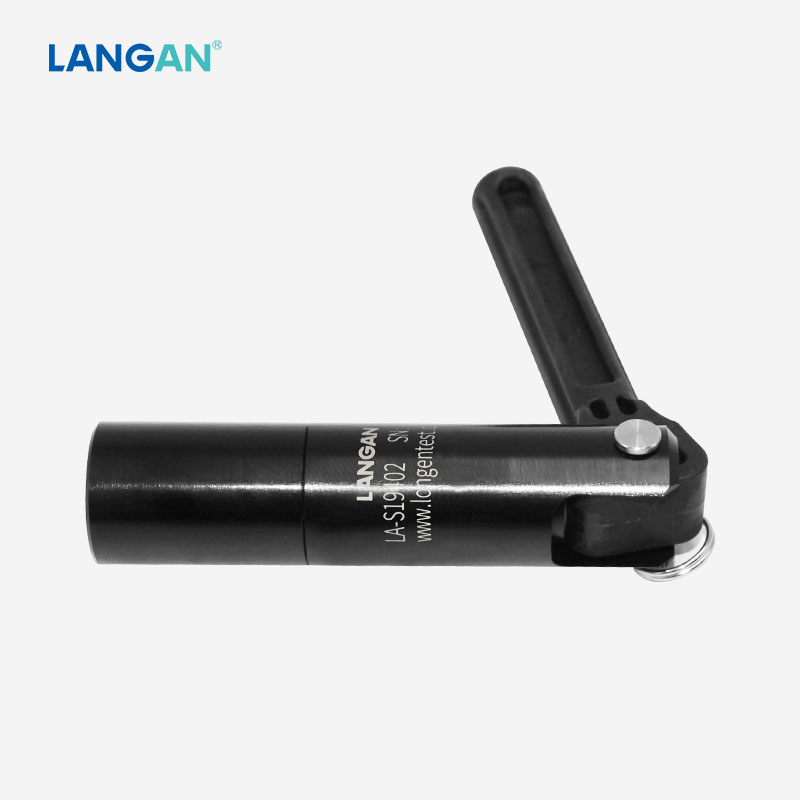

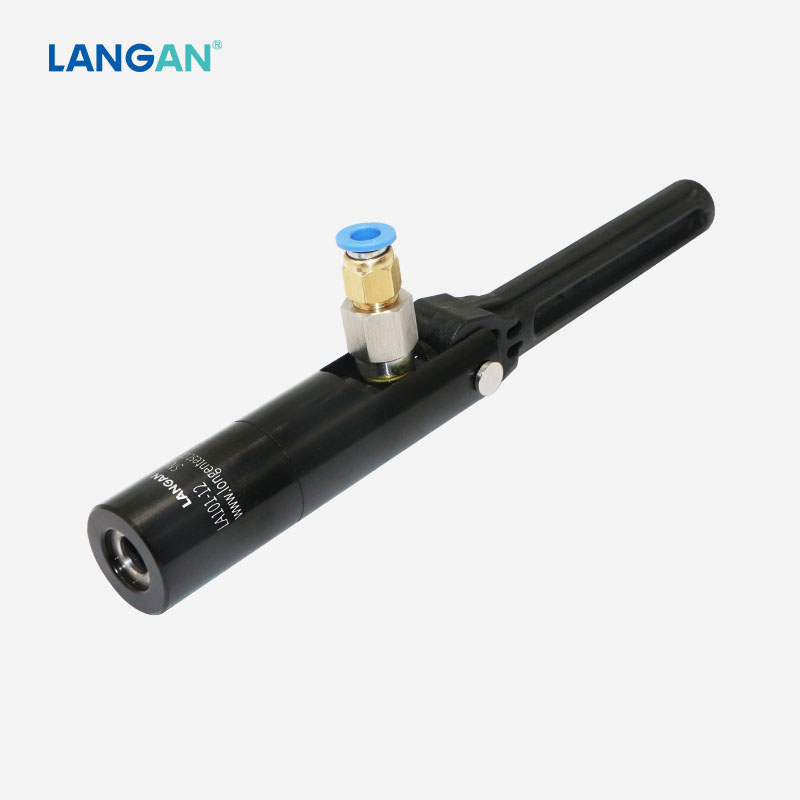

LANGAN® LA101 Pressure and Vacuum Test Quick Connector Selection Guide
| Technical data | |
| Product name | LANGAN® LA101 leak, vacuum and air tightness test, clamping lever actuated quick connector of external tube diameter |

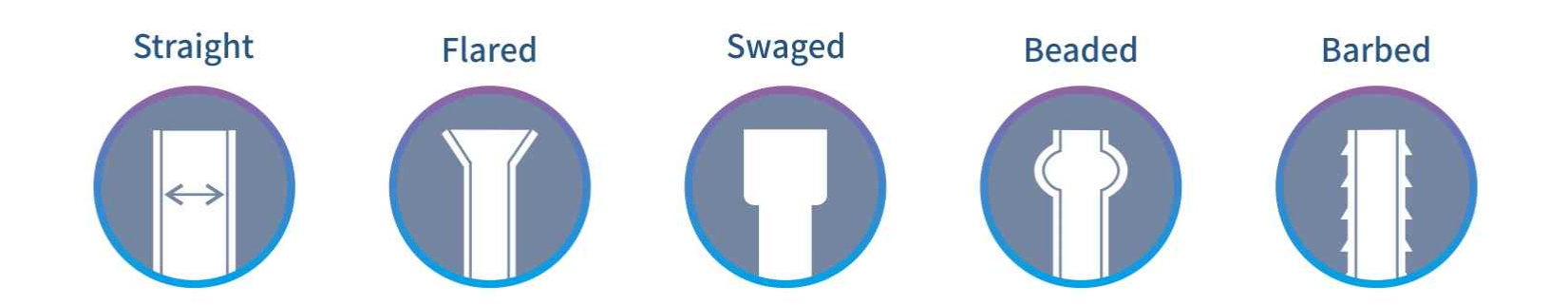

| Connection type | Straight tubes, flared and swaged, beaded and barbed round tubes |
| Operating pressure (PS) | Max. up to 3 bar |
| Actuation method | Clamping lever |
| Leak rate | 1*10-4mbar.l/s(10-5 Pa.m3/s) |
| Temperature range | +5℃~+80℃ |
| Media | Oil-free and dry air or other non-corrosive gas |
| Materials of construction | Anodized aluminium |
| Sealing material | NBR for main seals, other materials available on request |
1. Description: LA101 custom leak test quick connector provides a pressure-tight connection in seconds. The clamping lever actuated quick connector is secured to the tested component by the front seal. Therefore, it is essential to keep the test piece and the seal absolutely dry to ensure proper functioning and sealing.
LA101 quick connector can also be used as a plug for the sealing port.

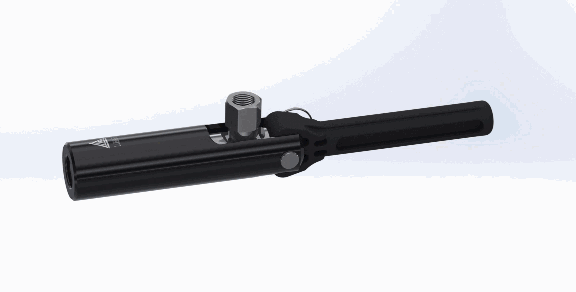

2. Opearation instructions:
Please strictly follow the operation steps. Improper operation can cause poor sealing, leakage and risk of connection failure resulting in damage or injury. Do not disconnect the connector while under pressure. Damage or injury may occur.
◆ Insert LA101 quick connector for leaking test carefully into the test piece;
◆ Actuate the lever of the quick connector by 90° downwards. The connector tightens itself to the test piece and makes a pressure-tight connection;
◆ Apply the required test pressure to media inlet to start the test process;
◆ At the end of the test process, vent the media line completely. Make sure to depressurize the connector before releasing the connection;
◆ Actuate the lever by 90° back upwards to disconnect the connector with the test piece.
3. Application:

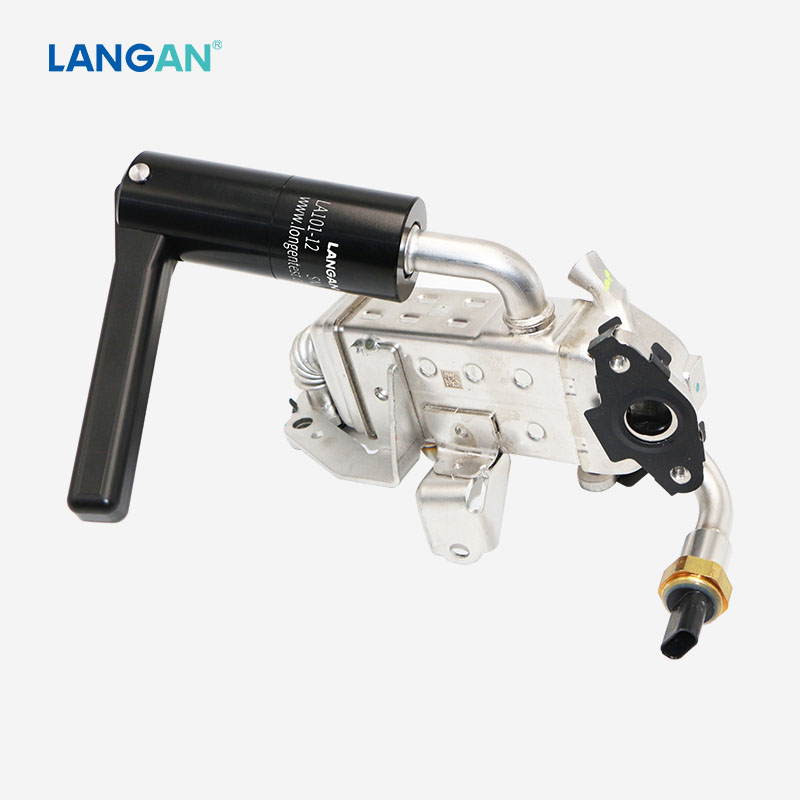

LA101 quick connector is suitable for leak testing of engines, tanks, pumps, oil cooler and new energy mobility etc.
CONNECTS TO:
4. How to order:
For LA101 quick connectors, normally we need the following information for ordering:
◆ Part numbers ◆ Pressure range
◆ Media/requested leak rate ◆ Temperature range
◆ Space requirement (interference contours, clearance, etc.)
◆ CAD drawing, 3D model of the test piece

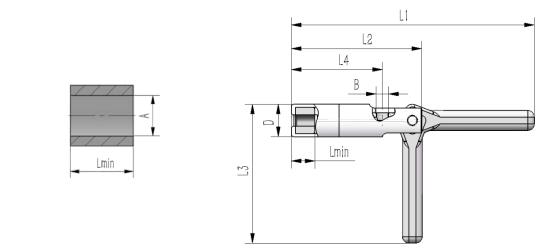

★ For detailed part numbers and dimensions, please download
LA101 Quick Connector Selection Guide
5. How to customize:
Tailor-made quick connectors are designed to a specific client's demand to perfectly adapt to testing space, various connection ends and surface conditions. Please click and inquire us.
