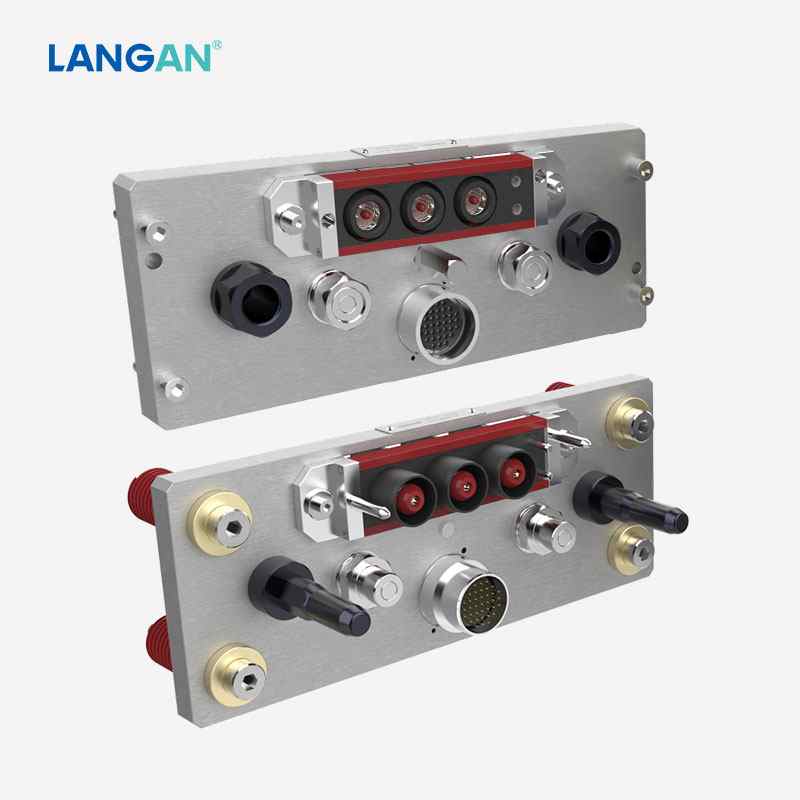

Centralized Connection System

LANGAN® manual or automatic connection system connects all the energy circuits simultaneously, fully meeting various industrial and application needs. All-in-one solutions achieve high efficiency and safety of processes.

Our expertise in a wide range of industrial fields provides reasonable advice and suitable products and solutions to your specific production requirements:

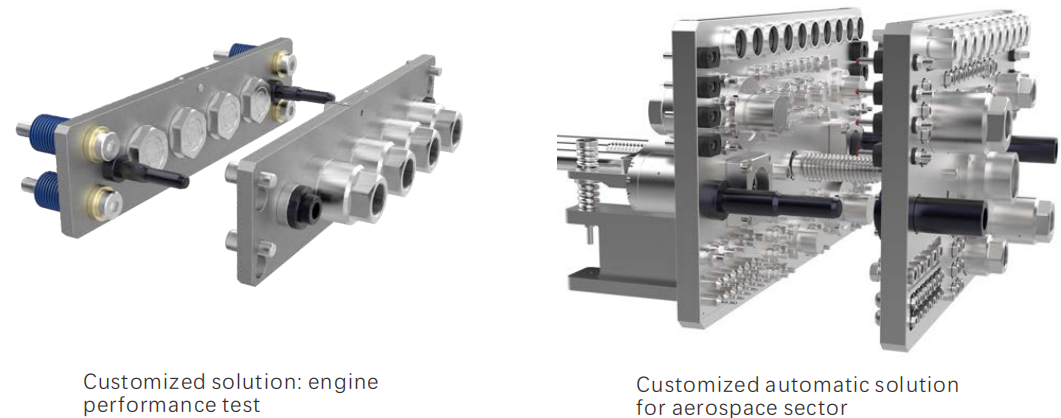

◆ Customized manual solutions                                  ◆ Customized automatic solutions

---

  1. Characteristics:

  ◆ Time saving: Connect all the circuits simultaneously and quickly, which can significantly save the operation time and improve efficiency;

  ◆ Avoiding misconnection: All the circuits, including electrical circuits, have unique and fixed positions for mating, which removes all the risk of misconnection;

  ◆ Automatic solutions are fully customized and configurable to meet the specific requirements for every application.

---

2. Components of Customized Solutions

---

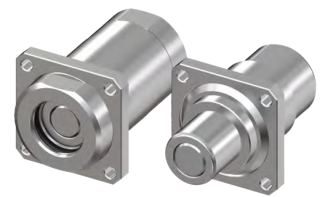

(1) LH Series—Anti-Pollution Fluid Connectors

Application: Hydraulic circuits and water.  Spill-free when disconnected, assuring no contamination of the circuit and no pollution of the working area.

 ◆ Full sizes

 ◆ Ensure excellent flow characteristics regardless of flow direction (socket → plug or plug → socket)

 LH—Anti-Pollution Fluid Connectors Selection Guide



---

(2) LX Series—High Pressure Fluid Connectors

For applications with high dynamic stresses, harsh operating conditions (hydroforming and steel industry, etc.), pulse cycles and/or high vibrations.

 ◆ Non-spill                                   ◆ High flow rate

 ◆ Ensure excellent flow characteristics regardless of flow direction (socket → plug or plug → socket)

 LX—High Pressure Fluid Connectors Selection Guide

---

(3) GM Series—Gas or Fluid Connectors

Modular connectors:

  ◆ Gradually guiding position detection                               ◆ Application: all gases connections

  ◆ Nominal diameter: φ3、φ6、φ9、φ12、φ18 mm        ◆ Single check valve, double check valve, no check valve

 GM—Gas and Fluid Modular Connectors Selection Guide

---

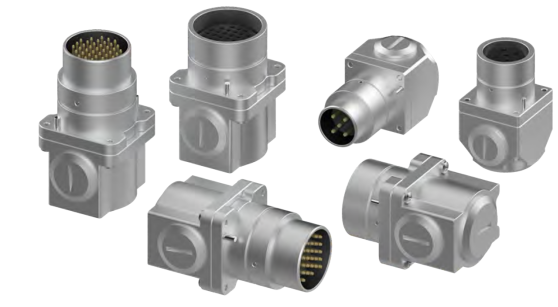

(4) EA Series—Electrical Connectors

 Application: Data circuits, control circuits and measuring sensors

 Benefits:

 ◆ Safety: no risk for misconnection. The housing prevents dust from entering and fluid from spilling.

 ◆ Reliability: all pins are silver plated. Cables, withstanding up to 100,000 mating cycling, can be laid out from 4 directions, which is convenient for customers.

 ◆ Product series: standard pin diameter: 1.0 mm to 3 mm, voltage up to 400 V, current up to  36 A.

 EA—Electrical Connectors Selection Guide

---

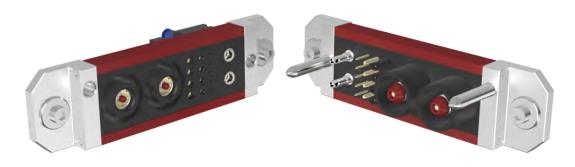

(5) EM Series—Modular Connectors System

EM series modular design allows you to centralize the connections of  high current, coaxial cable, compressed gases, high speed data and optical fiber.  It is widely used in mechanical engineering, railway vehicles, rail transport, power supply, laboratory test, healthcare area and other industrial applications.

Application: mechanical engineering, railway vehicles, rail transport, power supply, laboratory test, healthcare

Features:

  ◆ Transmission of signal, power, high current, coaxial cable, compressed air, high speed data and optical fiber.

  ◆ Reliability: silver/gold plated pins with up to 100,000 mating cycles.

  ◆ Densely assembled pins with 3mm as unit distance for measurement.

  ◆ Easy operation of assembly: Crimp terminated pins can be directly inserted into the insulator.

 EM—Modular Connectors System Selection Guide

---

3. How to order:

We focus on the safey, duribity and productivity. Connection solutions are customized to the requirements of each industry. Our customized modular connector system solutions have benefited a lot for our customers.

Please send us INQUIRE for your custom-tailored solutions to get the benefits of high cost performance.

For detailed specifications, Please click and download as below:

QCS Quick Connection System Manual

LH—Anti-Pollution Fluid Connectors Selection Guide

LX—High Pressure Fluid Connectors Selection Guide

GM—Gas and Fluid Modular Connectors Selection Guide

EA—Electrical Connectors Selection Guide

 EM—Modular Connectors System Selection Guide
