◆ Lower noise refueling;
◆ Integrated 50µm self-cleaning particle filter;
◆ Integrated high flow rate check valve;
◆ Sealing friendly design;
◆ Wide temperature range: -40∼+85℃
◆ Coding for pressure range and gas type
Hydrogen Fueling Components Manual

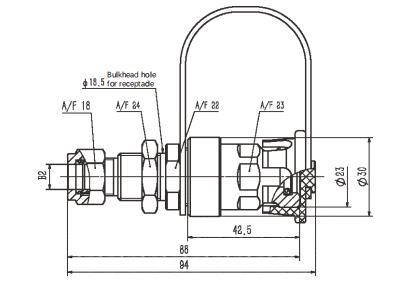

HR1-35A Hydrogen Receptacle Selection Guide
| Technical data | |

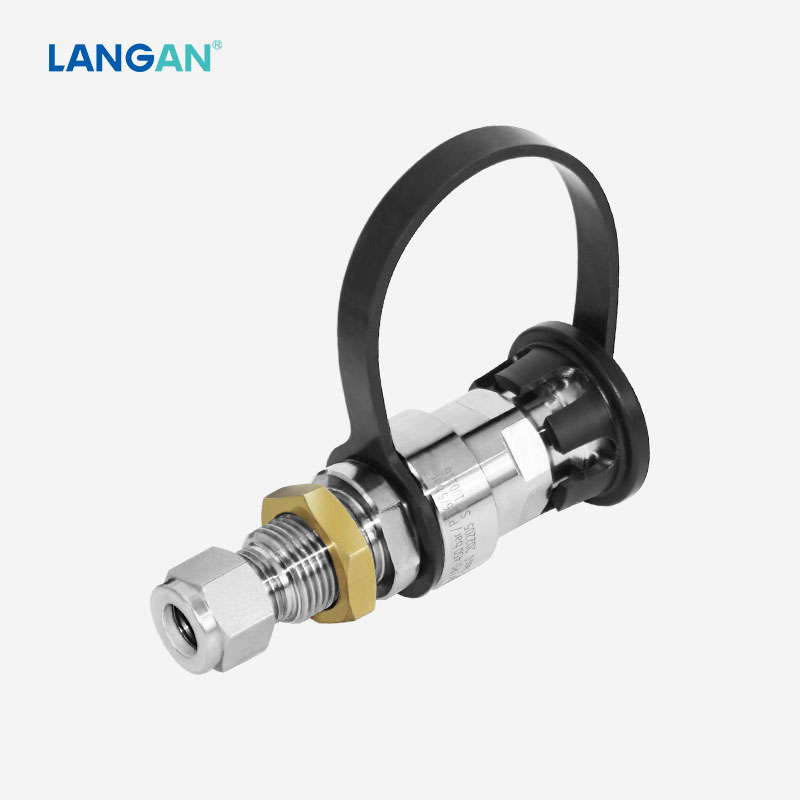

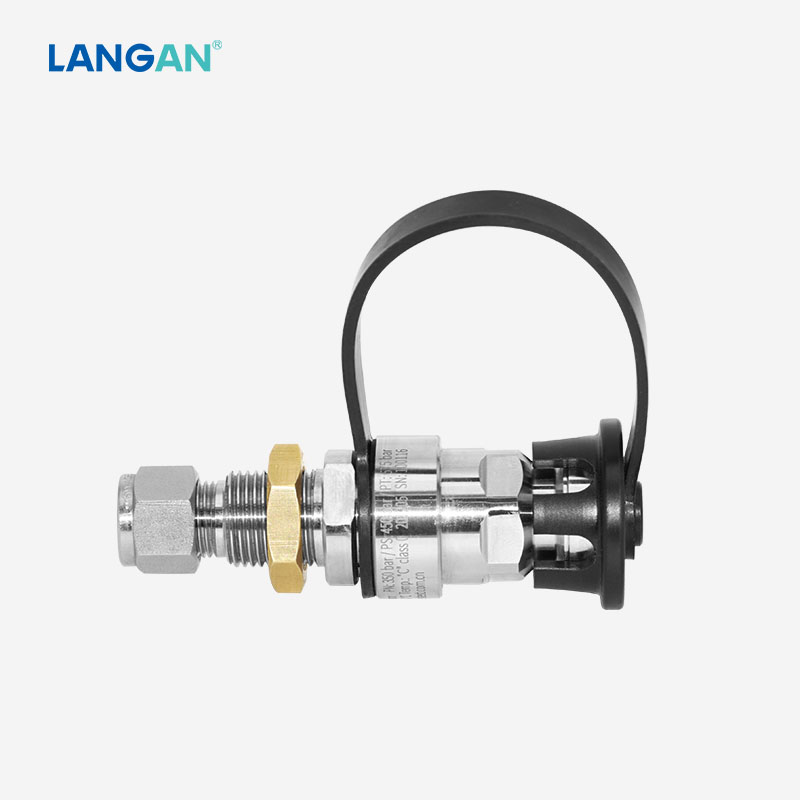

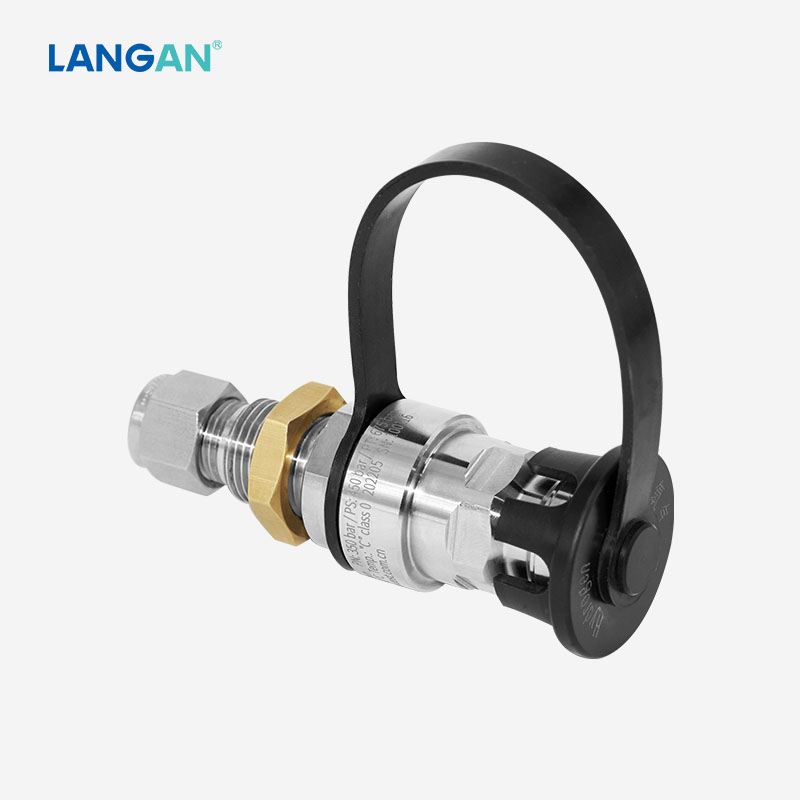

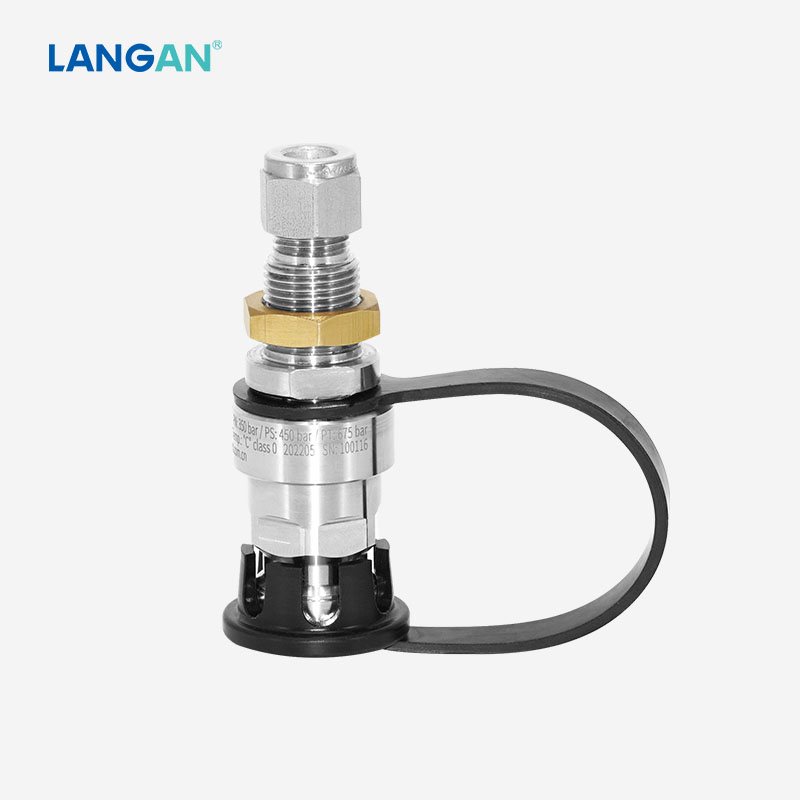

| Product name | LANGAN® HR1-35A hydrogen receptacle for compressed hydrogen |
| Pressure range | PN=35MPa, PS=45MPa |
| Nominal bore (DN) | 8mm |
| Temperature range | -40℃∼+85℃ |
| Body material | Durable, corrosion resistant stainless steel |
| Sealing material | Hydrogen resistant |
| Design features | With protection cap, with or without integrated particle filter (50µm or 40µm) and integrated check valve and accessories (only for receptacles with tube fittings) |
1. Description:
HR1-35A hydrogen receptacle is designed for hydrogen refueling of light-duty fuel cell cars, vans and forklifts.
◆ Made of durable and corrosion resistant stainless steel, which can withstand high temperature and corrosion in harsh hydrogen refueling environment.
◆ Integrated check valve that minimizes the effect that the dirt and road grime particles have on the components.
◆ Coding for pressure range and gas type, which eliminates the risk of exceeding the maximium pressure and clears the avaiable gas type.
2. Safety design:
HR1-35A has an integrated 40µm or 50µm self-cleaning filter located in front of the receptacle shut-off. This stops most of the dirt, particles and road grime from entering the receptacle. The filter provents leakage and protects from impurities that can damage the receptacle seals as well as components in the vehicle fuel system.
3. Application:
For fueling light-duty vehicles with hydrogen, compatible with HF16-35A01 hydrogen refueling nozzle.
4. Comparision of LANGAN® Hydrogen Refueling Receptacles
| Receptacle No. | Pressure (PN) | Applicable | Filter size |
| HR1-35A | 35MPa | Light duty: cars, forklift etc | 40µm or 50µm |
| HR5-35A | 35MPa | Buses＆trucks | 50µm |
| HR1-70A | 70MPa | Light duty: cars, forklift etc | 20µm |
5. How to order:
With years of experience and extensive expertise in hydrogen fueling industry, we are prefessional for hydrogen refueling solutions. Please feel free to INQUIRE us. Customized hydrogen receptacles are on request.
★ For more details, please download HR1-35A Hydrogen Receptacle Selection Guide
