◆ High-grade material
◆ Connection in seconds
◆ Time and cost saving
◆ Wide range of tube tolerances
◆ No hand or wrench tightening required
LANGAN® Quick Connector Catalog

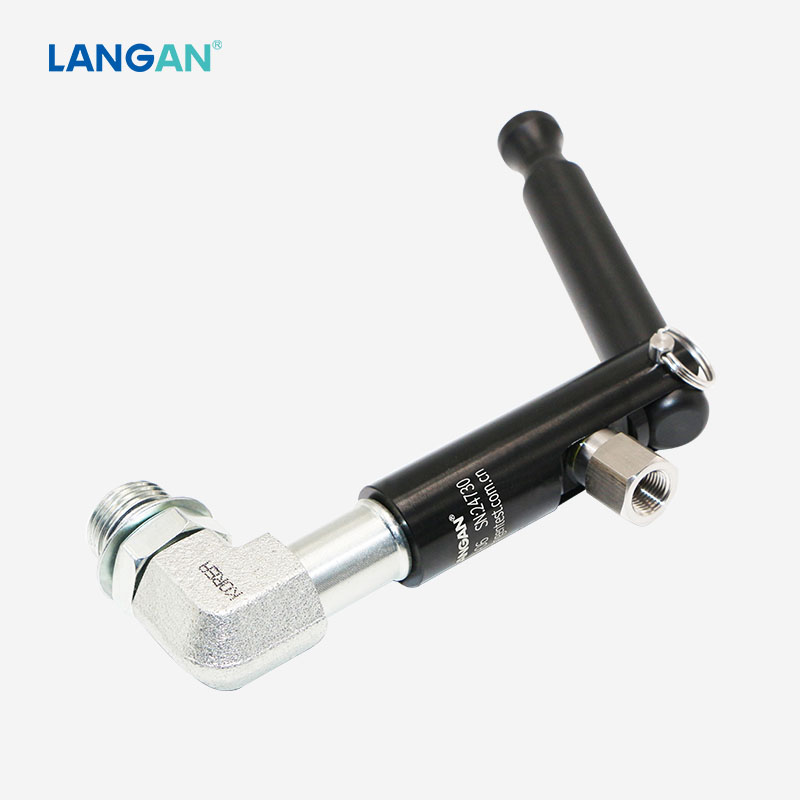

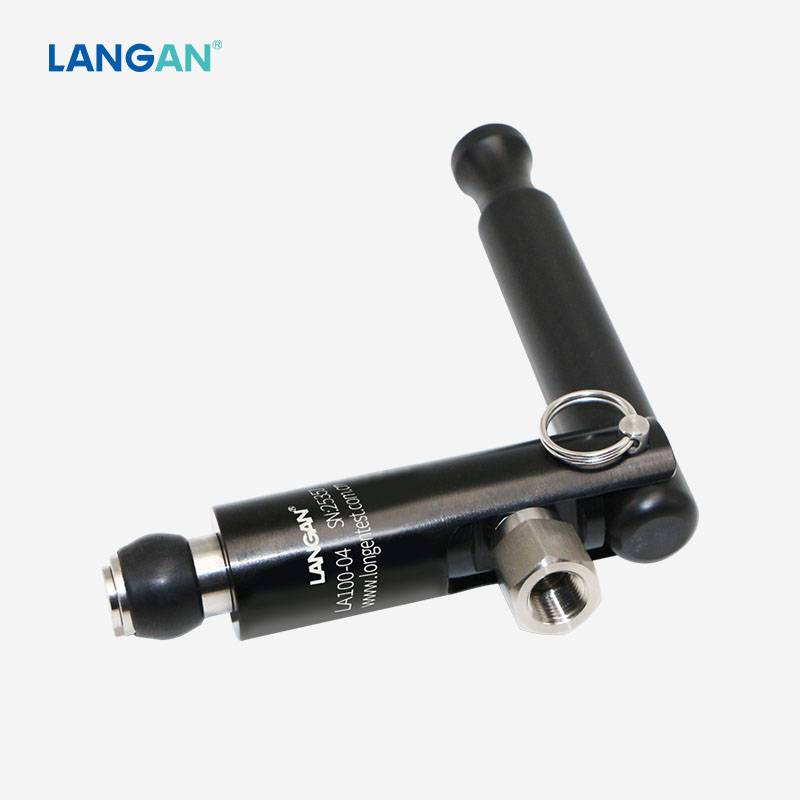

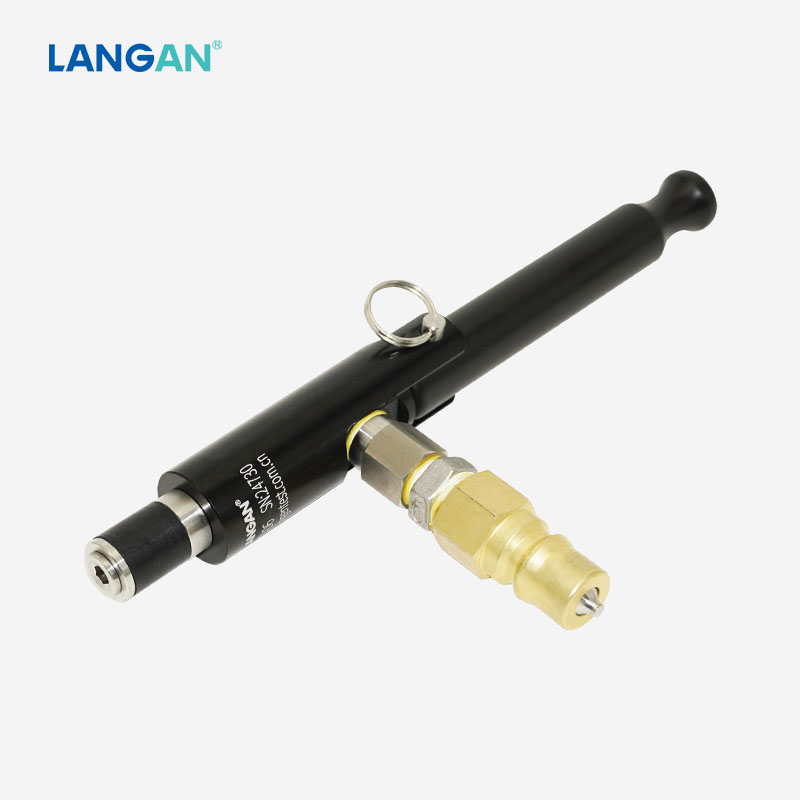

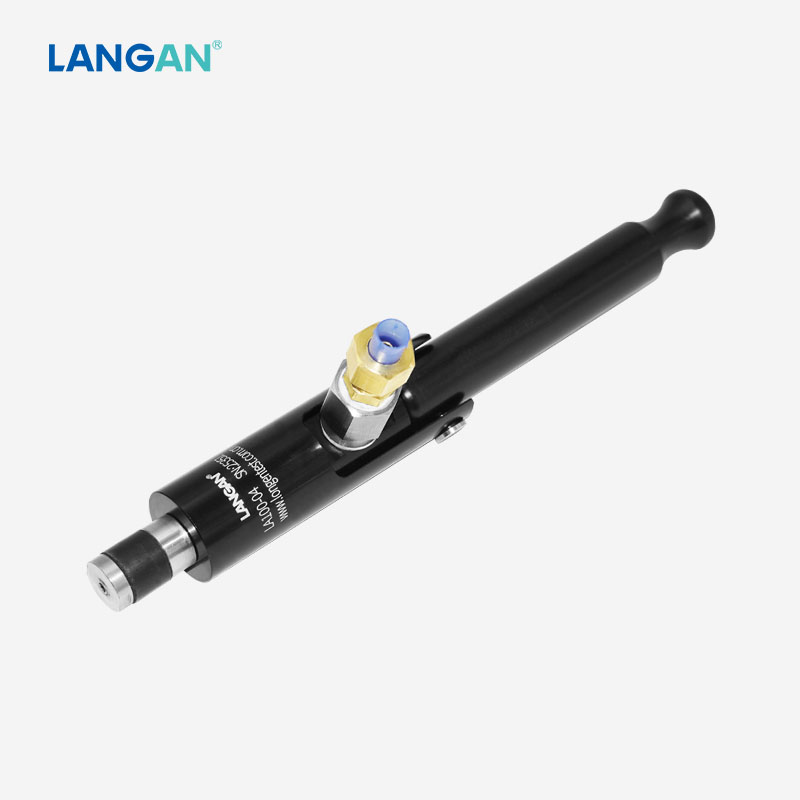

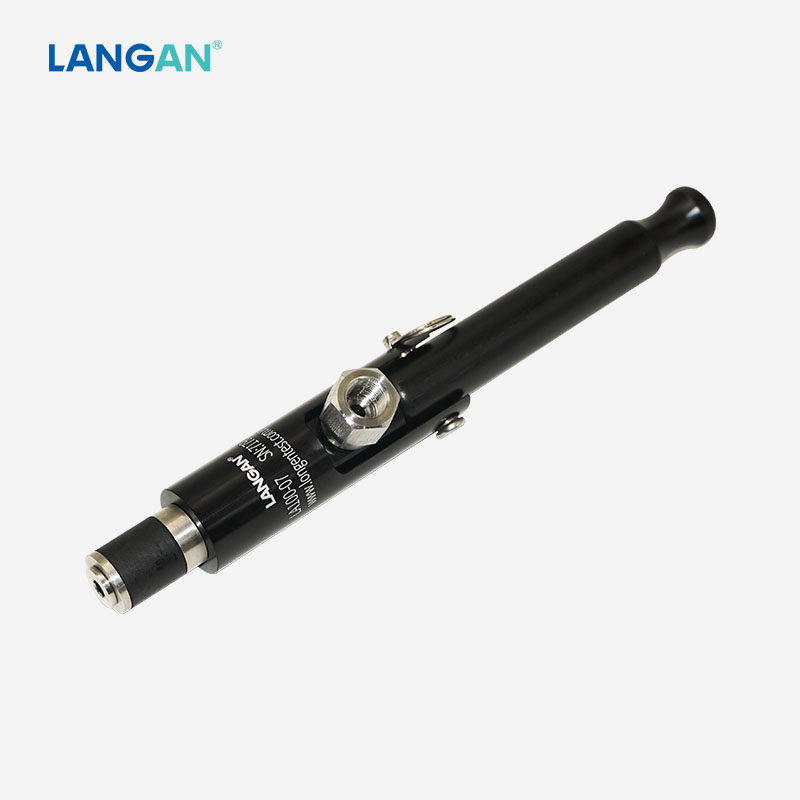

LANGAN® LA100 Pressure and Vacuum Test Quick Connector Selection Guide
| Technical data | |
| Product name | LANGAN® LA100 quick connector for pressure and vacuum leak testing |
| Connection type | For connection of straight tubes, bores, flared, swaged, beaded, barbed round tube and flanged port |
| Operating pressure (PS) | Max. up to 3 bar |
| Actuation method | Clamping lever |
| Leak rate | 1*10-4mbar.l/s(10-5 Pa.m3/s) |
| Temperature range | +5℃~+80℃ |
| Media | Oil-free and dry air or other non-corrosive gas |
| Materials of construction | Anodized aluminium |
| Sealing material | NBR, other materials on request |
1. Description:
LA100 quick connector, as a leak test fitting, provides a pressure-tight, air tight and vacuum tight connection to straight tubes and bores etc in seconds.
2. Operating instruction:
Please strictly follow the operation steps. Improper operation can cause poor sealing, leakage and risk of connection failure resulting in damage or injury. Do not disconnect the connector while under pressure. Damage or injury may occur.
◆ Insert LA100 quick connector carefully into the test piece;
◆ Actuate the lever of the quick connector by 90° downwards. The connector tightens itself to the test piece and achieves a pressure-tight connection;
◆ At the end of the test process, vent the media line completely. Make sure to depressurize the connector before releasing the connection;
◆ Actuate the lever by 90° back upwards to disconnect the connector with the test piece;
3. Application:
LA100 quick connector for leak test is suitable for leak testing of automotive industry, manufacturing industries and Electric Vehicles (EVs) etc, valve industries. including testing of engines, motors, battery packs and cooling systems, valves etc.
CONNECTS TO:
4. How to order:
For LA100 quick connectors, normally we need the following information for ordering:
◆ Part numbers ◆ Pressure range
◆ Media/requested leak rate ◆ Temperature range
◆ Space requirement (interference contours, clearance, etc.)
◆ CAD drawing, 3D model of the test piece
★ For detailed part numbers and dimensions, please download LA100 Quick Connector Selection Guide.
5. How to customize:
As a quick connector manufacturer, custom industrial leak test quick connectors are designed to a specific client's demand to perfectly adapt to testing space, various connection ends and surface conditions. Please click and inquire us.
