◆ High-grade material;
◆ Durable: withstanding quick and frequent connection and disconnection;
◆ Resistant to high temperature;
◆ Resistant to water and oil
1. Introduction:

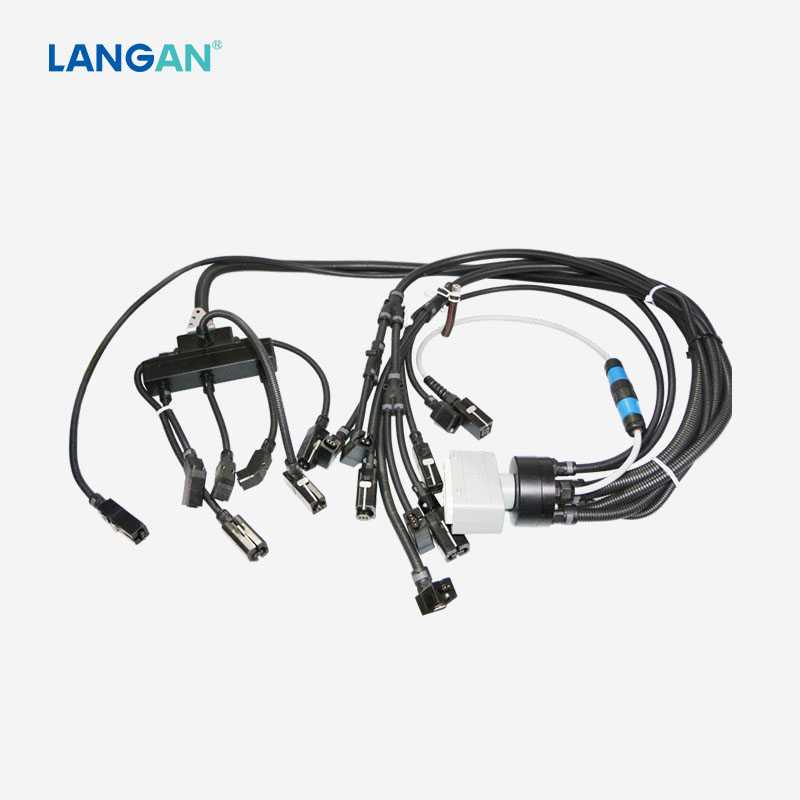

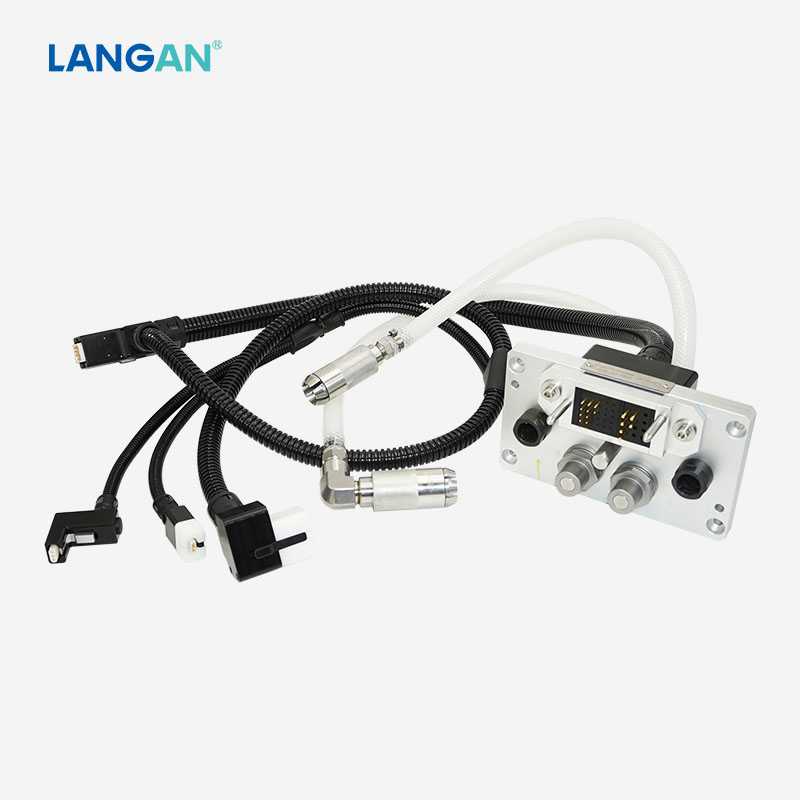

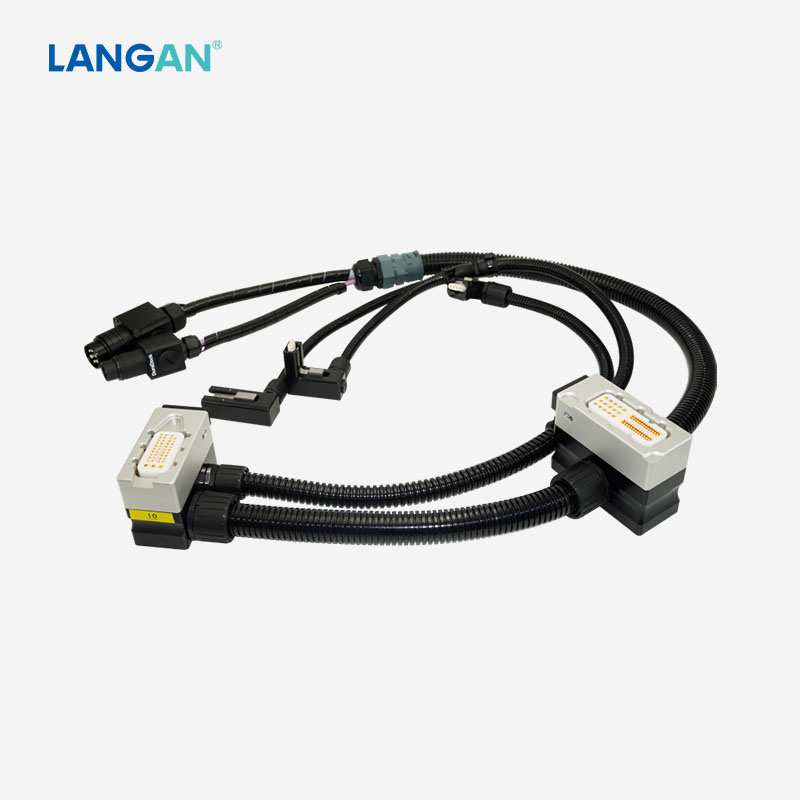

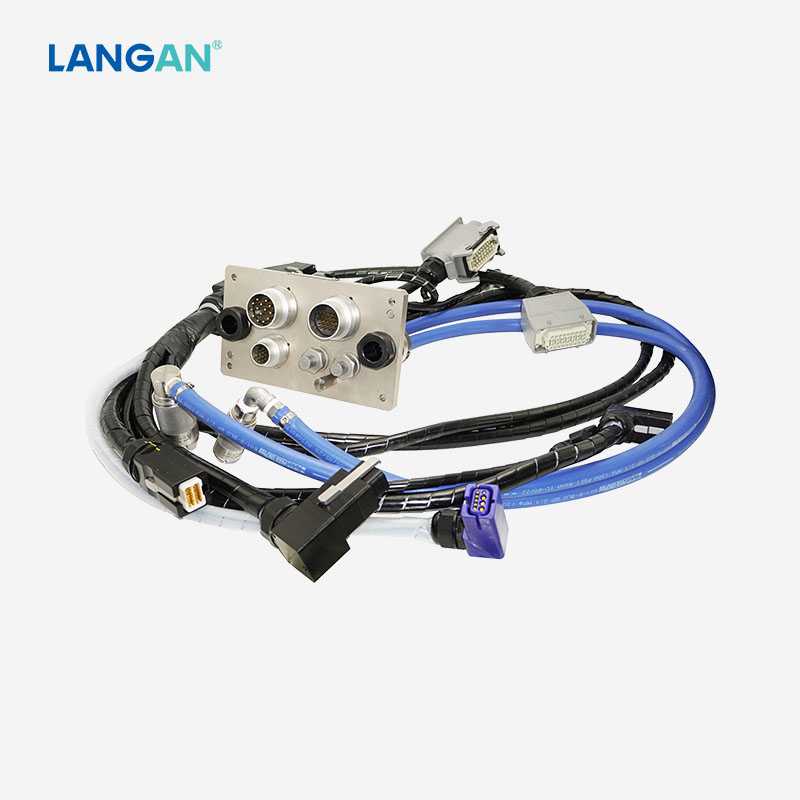

Test wiring harness is composed of quick connectors, electrical pins, cable jumpers and sleeves. It is used for the power and signal transfer between test equipment and the test piece. It is durable and suitable for quick and repeated connection and disconnection.
2. Difference between testing wire harness and standard wire harness:
◆ Testing wire harness is commonly used for the performance test of the equipment, such as engines, gearbox, and electric drive etc. It is characterized by its duribility, outstanding resistance to bending proof performance, resistance to high temperature, water and oil. It can withstand quick and repeated connection and disconnection.
◆ Standard wire harness, a plastic molding part with a clamp, is usually used in the working condition where there is no demand for TAKT time or no requirement for repeated connection and disconnection.
3. How to customize:
With years of experience and extensive expertise, we are capable of customizing testing wire harness according to client's requirements.
Normally, we need the following information for byspoke products:
◆ Test working condition;
◆ Electrical wiring diagram;
◆ Electrical interface diagram, 3D model or samples
4. Applications of QCS (Quick Connection System) and testing wire harness:

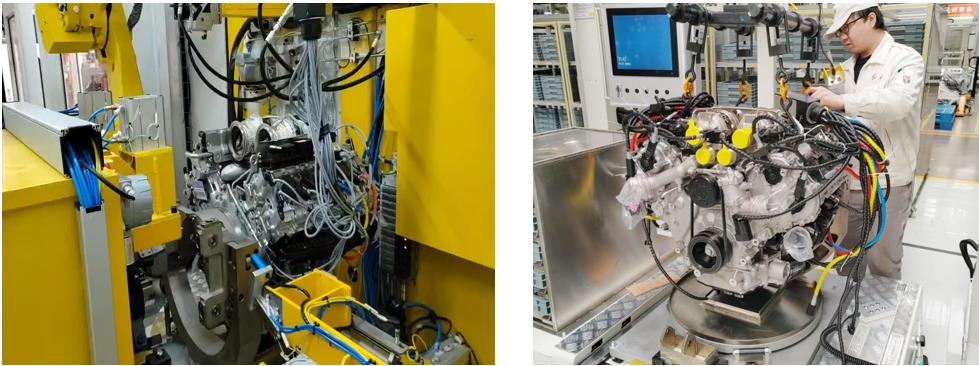

QCS (Quick Connection System), centralized connection of energy circuits, is widely used in an extensive range of industries, including plastic, automotive, railway, metal and aerospace as well as new energy industries. The conbination of QCS and testing wire harness provides accuracy and high efficiency for Electric Vehicles (EVs) testing.
5. How to order:
We focus on the safey, duribity and productivity. Connection solutions are customized to the requirements of each industry. Our customized solutions have benefited a lot for our customers. Please send us INQUIRE for your custom-tailored solutions to get the benefits of high cost performance.
★ For detailed dimensions, please download
Testing Wire Harness Catalog.
