● Payload to 25kg;
● 1 position for module mounting, and 6 pneumatic ports of G3/8;
● For sorting, transporting and assembling etc;
● Self-locking mechanism;
● Monitoring master side with proximity sensor at real time
Robot Quick Changer End-of-Arm-Tooling (EOAT) is applicable for a wide range of applications, sorting, palletizing, transporting, material finishing (deburring, painting etc), and welding tasks etc..The Robot Tool Changer can carry different payloads with outstanding flexibility and accuracy for any automated process to change tools, which greatly improves product quality and production efficiency.

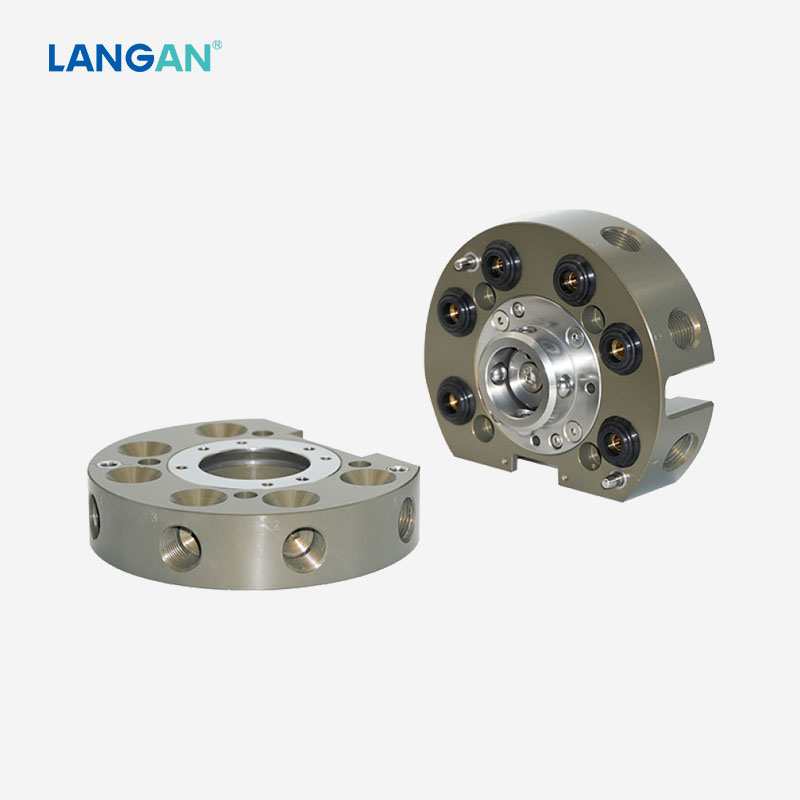

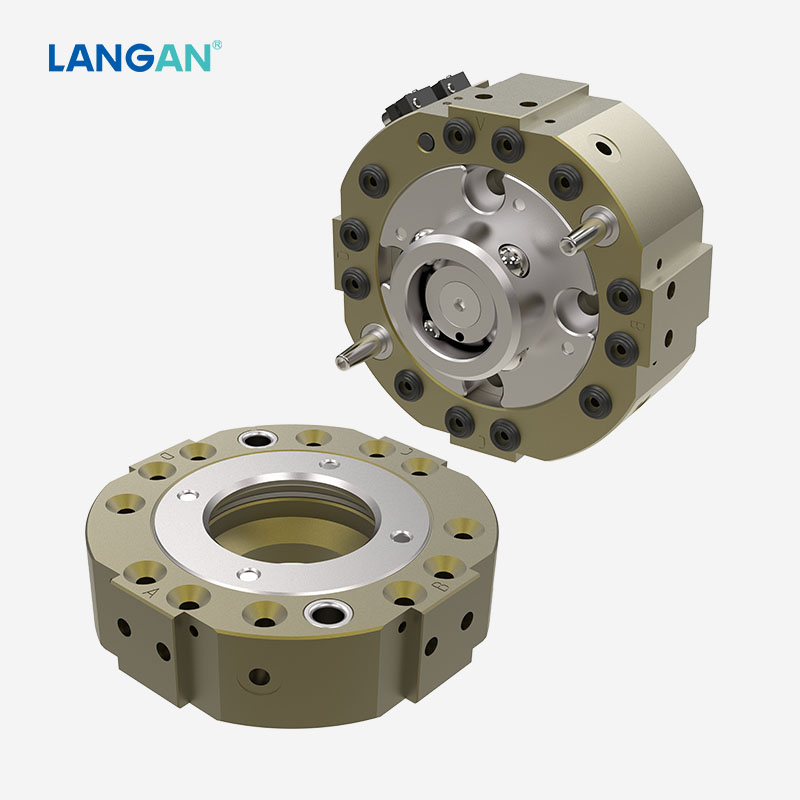

LANGAN® LA-RTC25 Automatic Robotic Tool Changer (ATC) with payload to 25kg, end-of-arm tooling solutions, providing flexibility and efficiency.
1. Technical data
| Product name | LANGAN® LA-RTC25 Automatic robot end effector with payload to 25kg | ||
| Main body | Rated payload | 25kg | |
| Static moment (X&Y) | 56.5 N.m | ||
| Static torque (Z) | 75 N.m | ||
| Locking force | 2400N | ||
| Housing size | Φ 118*61 mm | ||
| Positioning repeatability accuracy (X, Y & Z) | ±0.02mm | ||
| Weight | Master side | 850g | |
| Tool side | 550g | ||
| Material | Main body material | Aluminium alloy | |
| Locking unit material | Steel alloy | ||
| Locking unit | Ball locking | ||
| Pilot pressure | 0.4~0.7MPa | ||
| Pneumatic port | G 3/8 (6 ports) | ||
| Pilot air inlet | M5 | ||
Note: Customized version available on request.
2. Features:
● Payload up to 25kg;
● 1 position for module mounting and 6 pneumatic ports of G3/8 on mainbody;
● For sorting, transporting and assembling etc;
● With self-locking function to prevent master plate and tool plate from being seperated due to accidential cut-off of air supply;
● Monitoring master side with proximity sensor at real time.

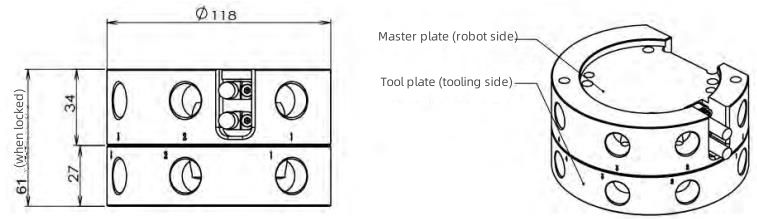

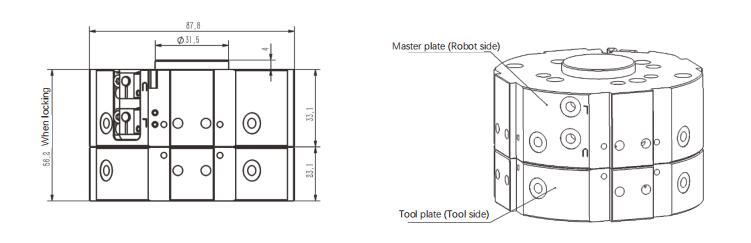

3. Dimensional drawings of LA-RTC25 Robot Tool Changer:
A Robot Tool Changer consists of a master plate and a tool plate, which are designed to lock together automatically. The Master plate of the Tool Changer mounts to a robot. The tool plate of the Tool Changer mounts to toolings of grippers, welders, or deburring tools etc.
The robot tool changer allows the robot to switch from one tool to another quickly, accurately and efficiently.

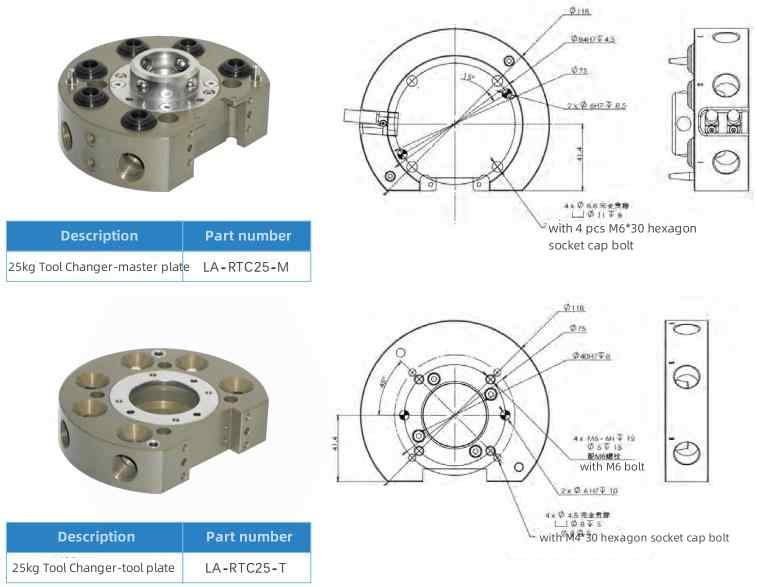

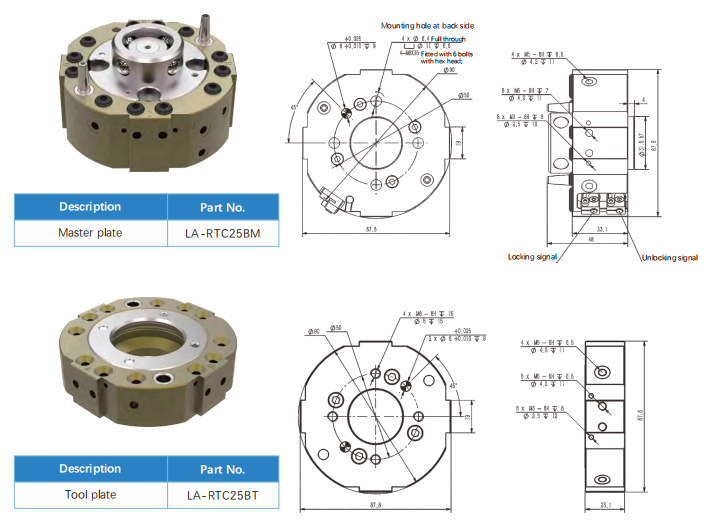

4. Mounting hole diagrams of LA-RTC25 Robot Tool Changer:
5. Optional modules:
● Control and signal modules
 |
Master plate | LA-D001M | 19-core, 5A AC220V |
| Tool plate | LA-D001T | ||
 |
Master plate | LA-D003M | 32-core, 5A AC220V |
| Tool plate | LA-D003T |
● Pneumatic and fluid modules
 |
Master plate | LA-Y001M |
▪ 2 circuits ▪ Rc 3/8 ▪ Connection with thread ▪ With self-sealing |
| Tool plate | LA-Y001T |
● Pneumatic modules
 |
Master plate | LA-Q101M |
▪ 2 circuits ▪ Rc 1/4 ▪ Connection with thread ▪ Without self-sealing |
| Tool plate | LA-Q101T | ||
 |
Master plate | LA-Q102M |
▪ 4 circuits ▪ Rc 1/8 ▪ Connection with thread ▪ Without self-sealing |
| Tool plate | LA-Q102T | ||
 |
Master plate | LA-Q103M |
▪ 6 circuits ▪ Rc 1/8 ▪ Connection with thread ▪ Without self-sealing |
| Tool plate | LA-Q103T |
6. Working environmental conditions:
• Ambient temperature: 0℃ ~ 60 ℃ • Humidity: 0~95%
Robotic tool changers should be able to operate within a specific temperature range to ensure optimal performance and lifespan. It is advisable to consider the environmental conditions of your automation system and select a tool changer that can withstand these conditions.
Note: Please indicate to us when ordering if substances, such as dust, iron particles and acid gas etc, are present in the working environment.
7. Ordering:
As a manufacturer of Robotic Tool Changers, LANGAN® Robot Tool Changer models cover an extensive range of applications, from very small payloads 10kg to heavy payload 630kg. Custom-tailored robot tool changer models are available on request.
If you are interested in our Robot Tool Changer, Please feel free to inquire us.
