● High payload up to 300kg;
● 2 postions for mounting modules, and 8 pneumatic ports of G1/2;
● Multiple sets of mounting holes on LA-RTC300
● For sorting, transporting, assembling, grinding, welding and deburring etc.;
● With self-locking function to prevent master plate and tool plate from being separated due to accidential cut-off of air supply;
● Monitoring master side with proximity sensor at real time.
LANGAN® Robotic Tool Changer provides a strong and reliable support for the seamless switching or changing between different toolings, which significantly reduces downtime and increases overall throughput as well as safety.
We, as a Robotic Tool Changer manufacturer, keep working to meet the soaring demand for robots in various industrial applications.

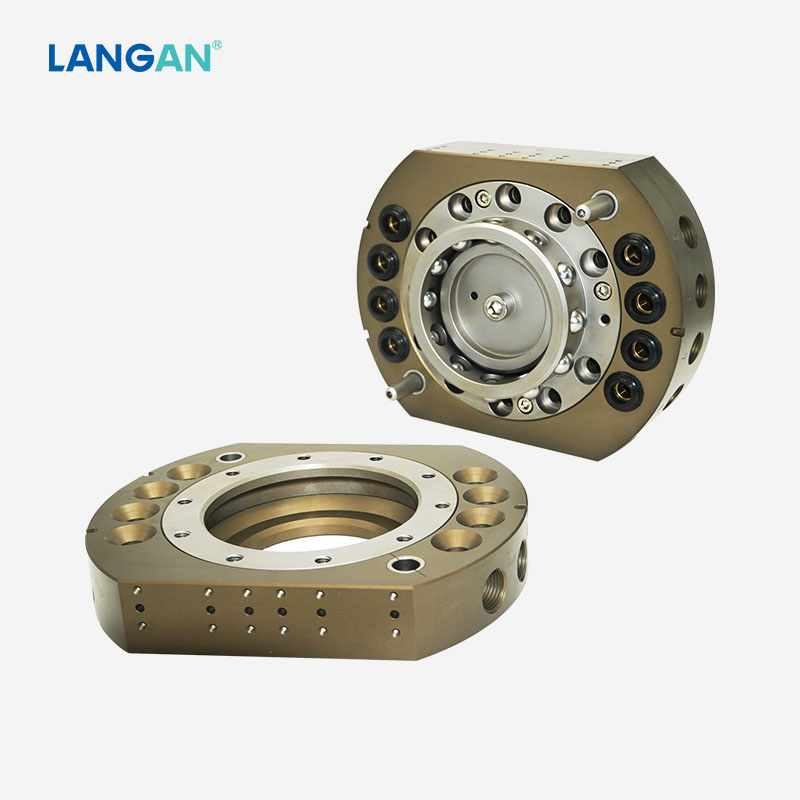

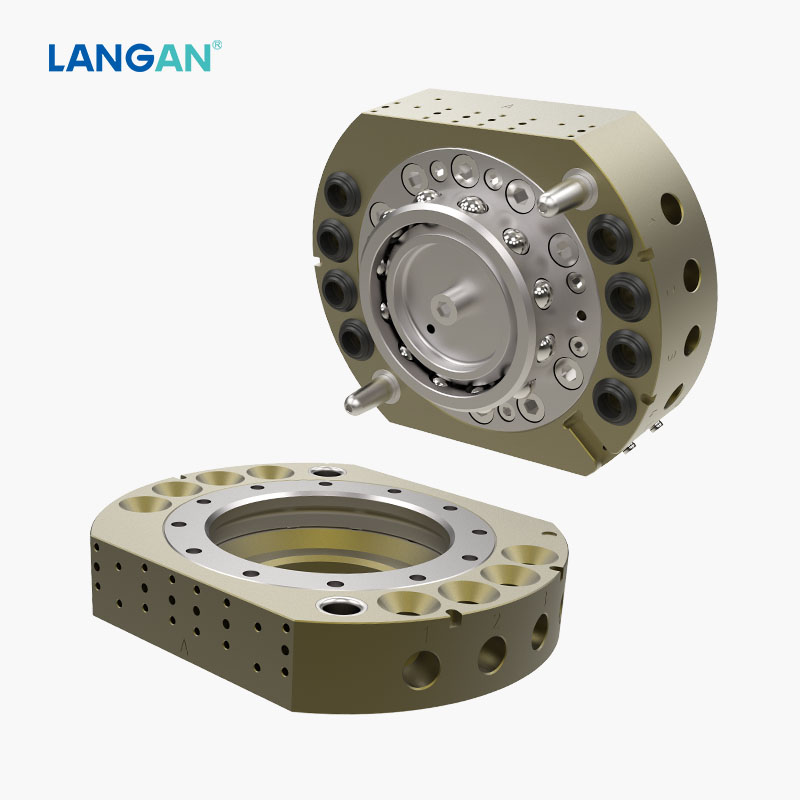

LANGAN® LA-RTC300 Automatic Robotic Tool Changer (ATC) with payload to 300kg provides end-of-arm tooling solutions, flexibility and efficiency.
1. Technical data
| Product name | LANGAN® LA-RTC300 High Payload to 300kg Robot Tool Changer | ||
| Main body | Rated payload | 300kg | |
| Static moment (X&Y) | 2710N.m | ||
| Static torque (Z) | 2710N.m | ||
| Locking force | 31000N | ||
| Housing size (when locked) | Φ 220*93.2mm | ||
| Positioning repeatibility accuracy (X, Y&Z) | ±0.02mm | ||
| Weight | Master plate | 7200g | |
| Tool plate | 3000g | ||
| Material | Main body | Aluminium alloy | |
| Locking unit | Steel alloy | ||
| Locking unit | Ball locking | ||
| Pilot pressure | 0.4-0.7MPa | ||
| Pneumatic port | G1/2 (8 ports) | ||
| Pilot air inlet | G1/8 | ||
Note: Customized version available on request.
2. Features:
● Payload up to 300kg;
● Main body has 2 positions for mounting modules, and 8 pneumatic ports of G1/2;
● For sorting, transporting, assembling, grinding, welding and deburring etc.;
● Multiple sets of mounting holes on LA-RTC300;
● With 2 modules as maximum limit for the number of modules on each of LA-RTC300 robot tool changer;
● With the function of self-locking to prevent the master plate and tool plate from being separated due to accidential cut-off of air supply;
● Monitoring master side with the proximity sensor at real time.

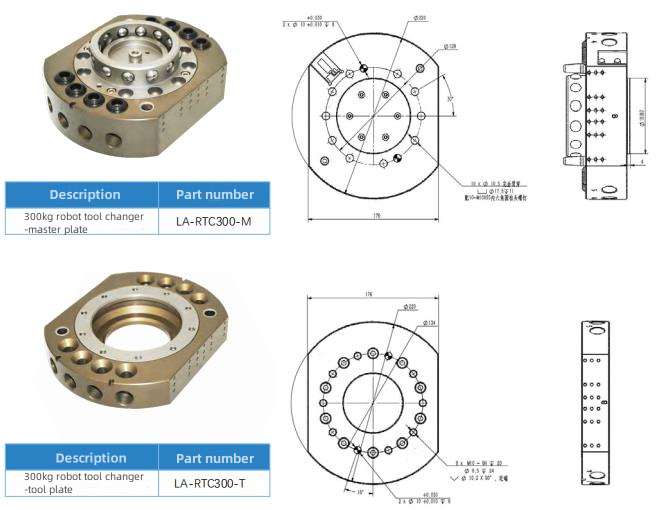

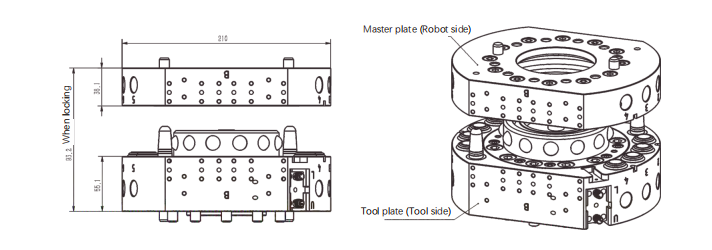

3. Dimensional drawings of LA-RTC300 Robot Tool Changer:

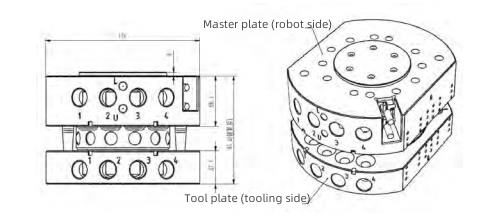

A Robot Tool Changer consists of a master plate and a tool plate, which are designed to lock together automatically. The Master plate of the Tool Changer mounts to a robot. The tool plate of the Tool Changer mounts to toolings of grippers, welders, or deburring tools etc.
The robot tool changer allows the robot to switch from one tool to another quickly, accurately and efficiently.

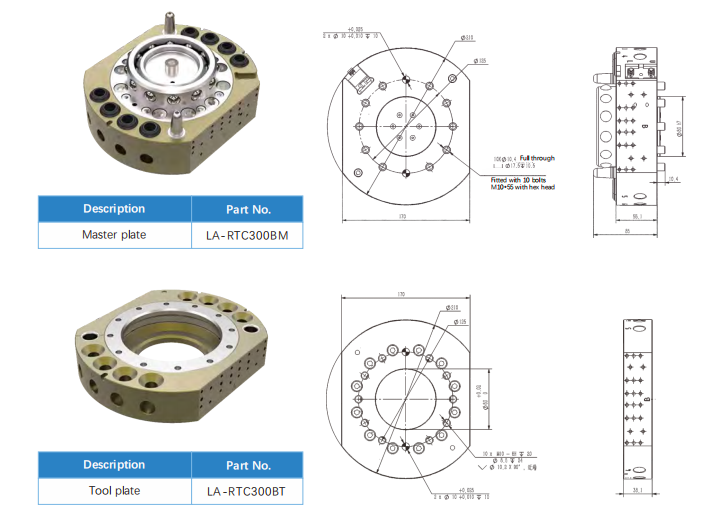

4. Mounting hole diagrams of LA-RTC300 Robot Tool Changer:

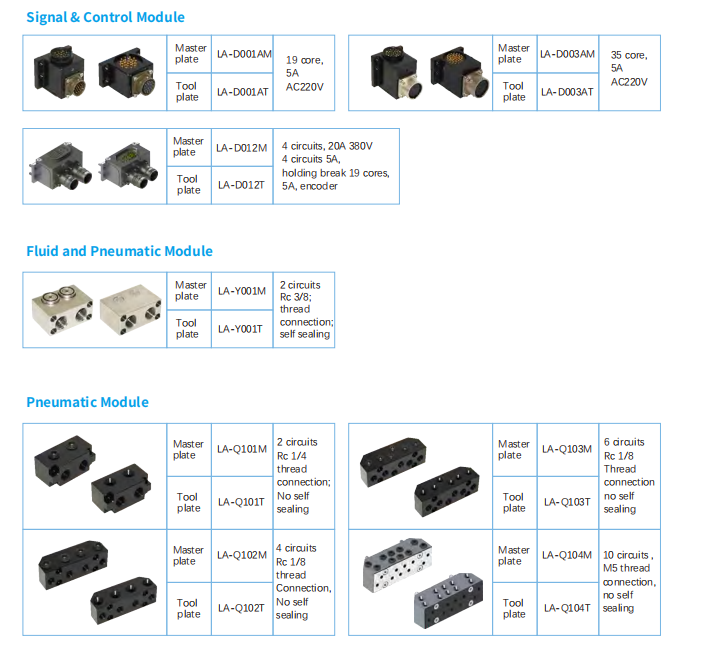

5. Optional modules:
● Signal and control modules
 |
Master plate | LA-D001M | 19-core, 5A AC 220V |
| Tool plate | LA-D001T | ||
 |
Master plate | LA-D003M | 32-core, 5A AC 220V |
| Tool plate | LA-D003T | ||
 |
Master plate | LA-D012M |
● 4 circuits 20A 380V; ● 4 circuits 5A contracting brake; ● 19-core, 5A coder |
| Tool plate | LA-D012T |
● Pneumatic and fluid modules
 |
Master plate | LA-Y001M |
▪ 2 circuits ▪ Rc 3/8 ▪ Connection with thread ▪ With self-sealing |
| Tool plate | LA-Y001T |
● Pneumatic modules
 |
Master plate | LA-Q101M |
▪ 2 circuits ▪ Rc 1/4 ▪ Connection with thread ▪ Without self-sealing |
| Tool plate | LA-Q101T | ||
 |
Master plate | LA-Q102M |
▪ 4 circuits ▪ Rc 1/8 ▪ Connection with thread ▪ Without self-sealing |
| Tool plate | LA-Q102T | ||
 |
Master plate | LA-Q103M |
▪ 6 circuits ▪ Rc 1/8 ▪ Connection with thread ▪ Without self-sealing |
| Tool plate | LA-Q103T |
6. Working environmental conditions:
• Ambient temperature: 0℃ ~ 60 ℃ • Humidity: 0~95%
Robotic tool changers should be able to operate within a specific temperature range to ensure optimal performance and lifespan. It is advisable to consider the environmental conditions of your automation system and select a tool changer that can withstand these conditions.
Note: Please indicate to us when ordering if substances, such as dust, iron dust and acid gas etc, are present in the working environment.
7. Ordering:
As a manufacturer of Robotic Tool Changers, LANGAN® Automatic Robot Tool Changer models cover an extensive range of applications, from very small payloads 10kg to heavy payload 630kg. Custom-tailored robot tool changer models are available on request.
If you are interested in our Robot Tool Changer, Please feel free to inquire us.
