● Payload up to 150kg;
● 2 locations for module mounting, and 8 pneumatic ports of G1/4;
● For sorting, transporting, assembling, grinding, welding and deburring etc.;
● Self-locking mechanism;
● Monitoring master side with the proximity sensor at real time.
LANGAN® Robotic Tool Changer provides a strong and reliable support for the seamless switching or changing between different toolings, which significantly reduces downtime and increases overall throughput as well as safety.
Robotic Tool Changer manufacturers keep working to meet the soaring demand for robots for various industrial applications.

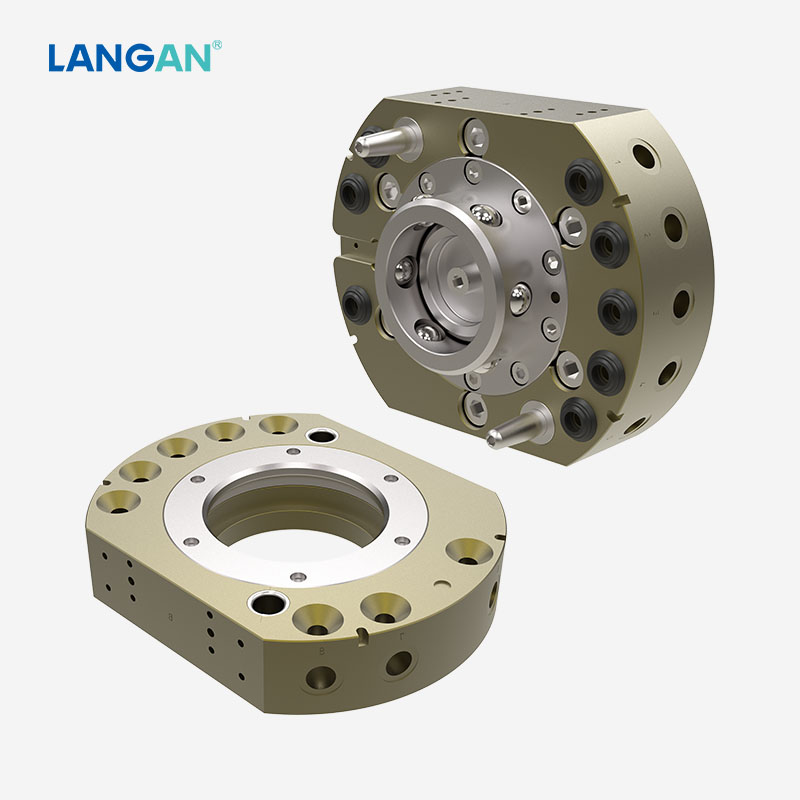

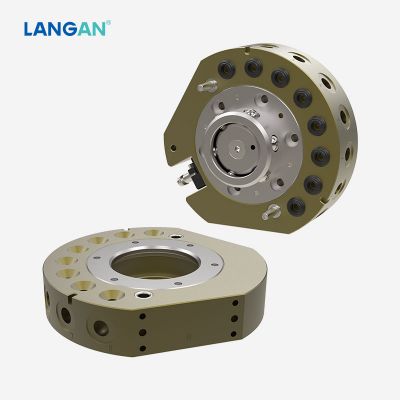

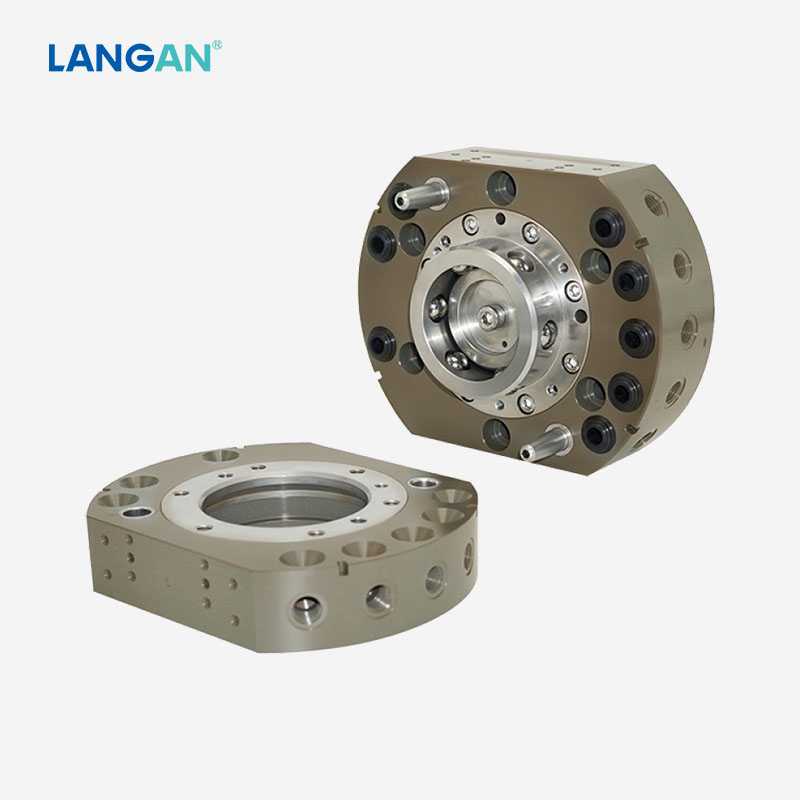

LANGAN® LA-RTC150 Automatic Robotic Tool Changer (ATC) with payload to 150kg, provides end-of-arm tooling solutions, flexibility and efficiency.
1. Technical data
| Product name | LANGAN® LA-RTC150 Robot Quick Changer End of Arm Tooling with payload to 150kg | ||
| Main body | Rated payload | 150kg | |
| Static moment (X&Y) | 780N.m | ||
| Static torque (Z) | 780N.m | ||
| Locking force | 12000N | ||
| Housing size (when locked) | Φ 186*97 mm | ||
| Positioning repeatibility accuracy (X, Y&Z) | ±0.02mm | ||
| Weight | Master plate weight | 4200g | |
| Tool plate weight | 3000g | ||
| Material | Main body material | Aluminium alloy | |
| Locking unit material | Steel alloy | ||
| Locking unit | Ball locking | ||
| Pilot pressure | 0.4-0.7MPa | ||
| Pneumatic port | G1/4 (8 ports) | ||
| Pilot air inlet | G1/8 | ||
2. Features:
● Payload up to 150kg;
● 2 locations for mounting modules, and 8 pneumatic ports of G1/4;
● For sorting, transporting, assembling, grinding, welding and deburring etc.;
● With self-locking function to prevent master plate and tool plate from being seperated due to accidential cut-off of air supply;
● Monitoring master side with proximity sensor at real time.

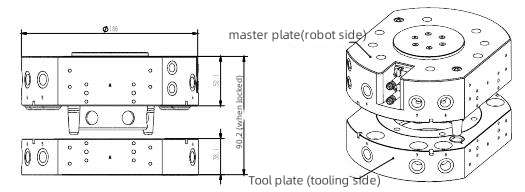

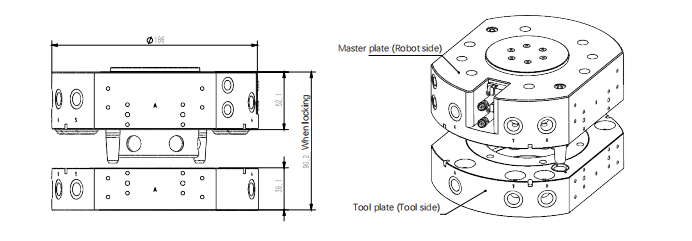

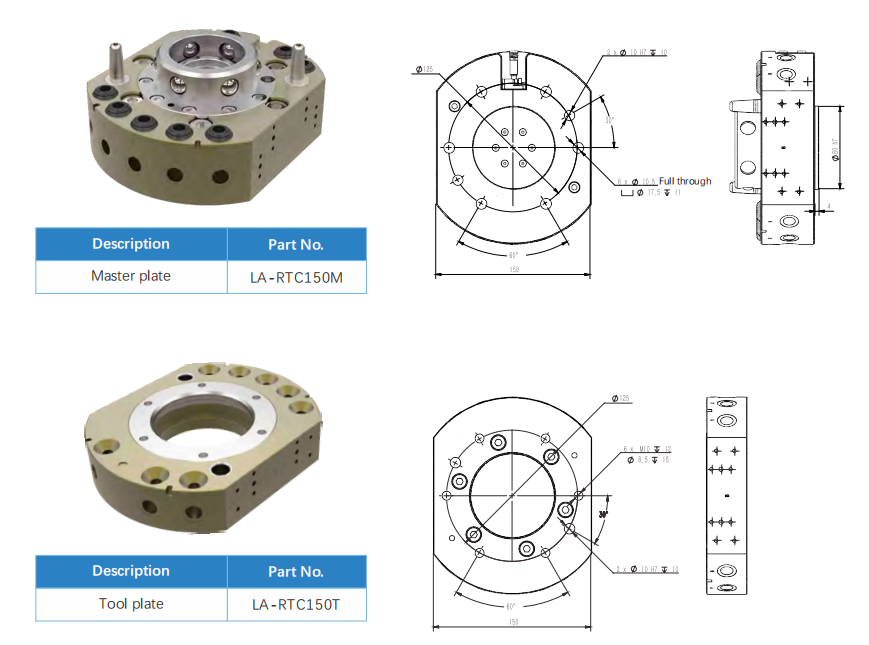

3. Dimensional drawings of LA-RTC150 Robot Tool Changer:
A Robot Tool Changer consists of a master plate and a tool plate, which are designed to lock together automatically. The Master plate of the Tool Changer mounts to a robot. The tool plate of the Tool Changer mounts to toolings of grippers, welders, or deburring tools etc.
The robot tool changer allows the robot to switch from one tool to another quickly, accurately and efficiently.

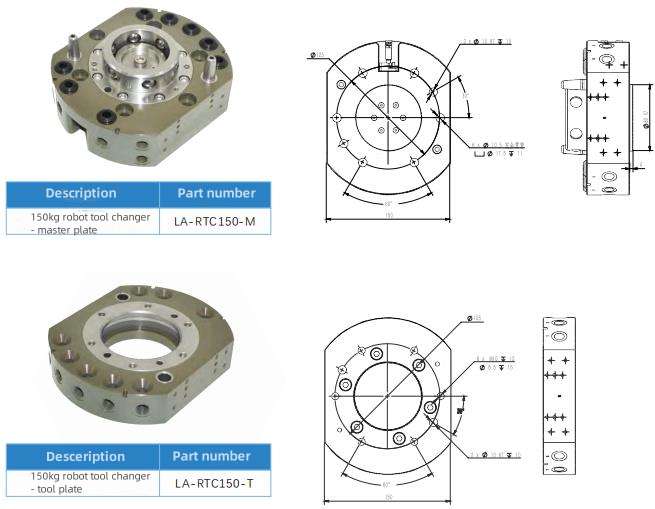

4. Mounting hole diagrams of LA-RTC150 Robot Tool Changer:

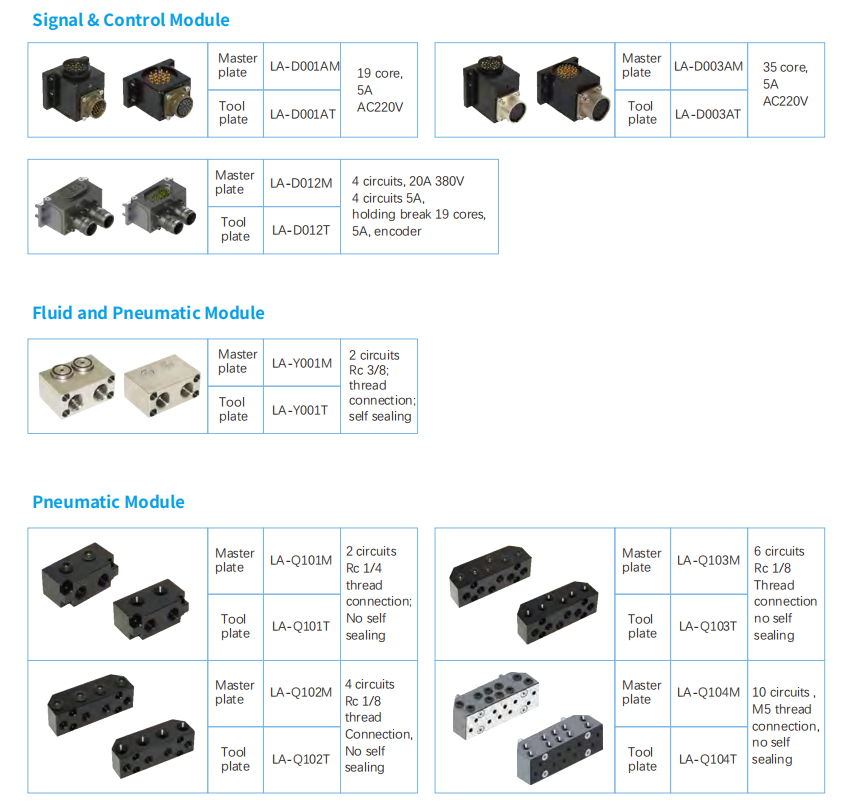

5. Optional modules:
● Control and signal modules
 |
Master plate | LA-D001M | 19-core, 5A AC 220V |
| Tool plate | LA-D001T | ||
 |
Master plate | LA-D003M | 32-core, 5A AC 220V |
| Tool plate | LA-D003T | ||
 |
Master plate | LA-D012M |
● 4 circuits 20A 380V; ● 4 circuits 5A contracting brake; ● 19-core, 5A coder |
| Tool plate | LA-D012T |
● Pneumatic and fluid modules
 |
Master plate | LA-Y001M |
▪ 2 circuits ▪ Rc 3/8 ▪ Connection with thread ▪ With self-sealing |
| Tool plate | LA-Y001T |
● Pneumatic modules
 |
Master plate | LA-Q101M |
▪ 2 circuits ▪ Rc 1/4 ▪ Connection with thread ▪ Without self-sealing |
| Tool plate | LA-Q101T | ||
 |
Master plate | LA-Q102M |
▪ 4 circuits ▪ Rc 1/8 ▪ Connection with thread ▪ Without self-sealing |
| Tool plate | LA-Q102T | ||
 |
Master plate | LA-Q103M |
▪ 6 circuits ▪ Rc 1/8 ▪ Connection with thread ▪ Without self-sealing |
| Tool plate | LA-Q103T |
6. Working environmental conditions:
• Ambient temperature: 0℃ ~ 60 ℃ • Humidity: 0~95%
Robotic tool changers should be able to operate within a specific temperature range to ensure optimal performance and lifespan. It is advisable to consider the environmental conditions of your automation system and select a tool changer that can withstand these conditions.
Note: Please indicate to us when ordering if substances, such as dust, iron particles and acid gas etc, are present in the working environment.
7. Ordering:

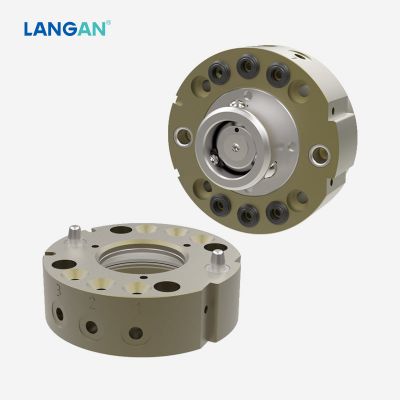

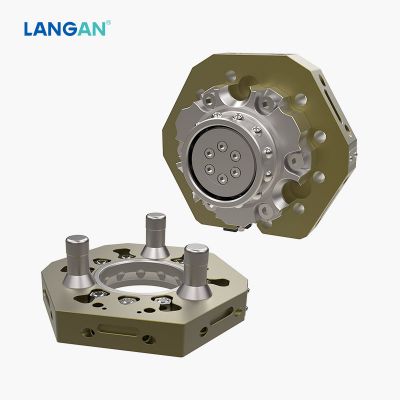

As a manufacturer of Robotic Tool Changers, LANGAN® Robot Tool Changer models cover an extensive range of applications, from very small payloads 10kg to heavy payload 630kg. Custom-tailored robot tool changer models are available on request.
If you are interested in our Robotic tool changer with integrated safety, Please feel free to inquire us.
