◆ Compatible with HR1-35A H2 receptacles;
◆ Easy operation;
◆ Safety protection during disconnection;
◆ High flow rate, shorter filling time;
◆ Recirculation of vented gas;
◆ Plastic thermal protection;
◆ LANGAN®Jaw-locking technology;
◆ Coding for pressure and gas type
Hydrogen Fueling Components Manual
HF1-35A Hydrogen Fueling Nozzle Selection Guide
| Technical Data | |
| Product name | LANGAN® HF16-35A 35MPa hydrogen fueling nozzle for dispenser |
| Nominal bore DN | 8mm |
| Pressure range | PN=35MPa, PS=45MPa |
| Media temperature range | -20℃∼+85℃ |
| Ambient temperature range | -40℃∼+85℃ |
| Material | Corrosion resistant |
| Sealing material | Hydrogen resistant |
| Nozzle type | Type A, as per SAE J2600: 2015 and previous, ISO17268: 2012 and previous respectively |
| Design | With plastic thermal protection and gas recirculation |
| Weight | 2.5kg |

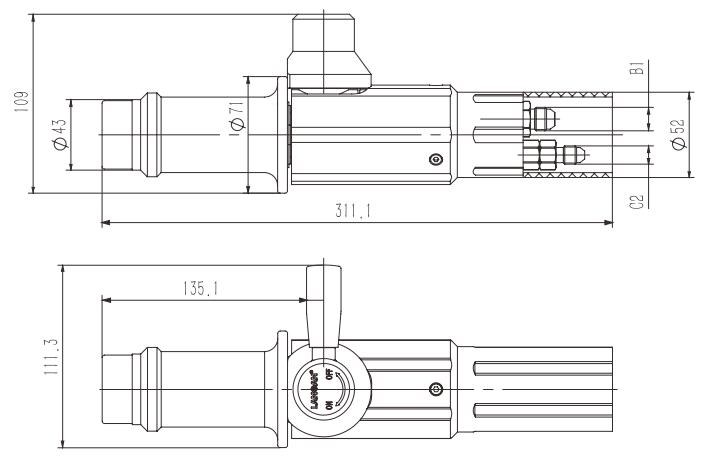

1. Description:

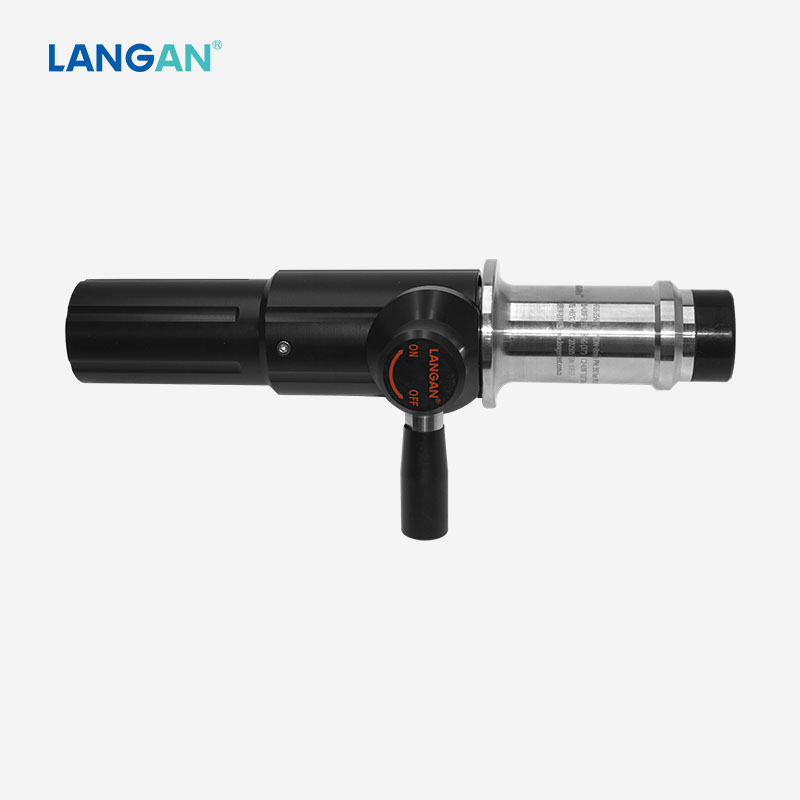

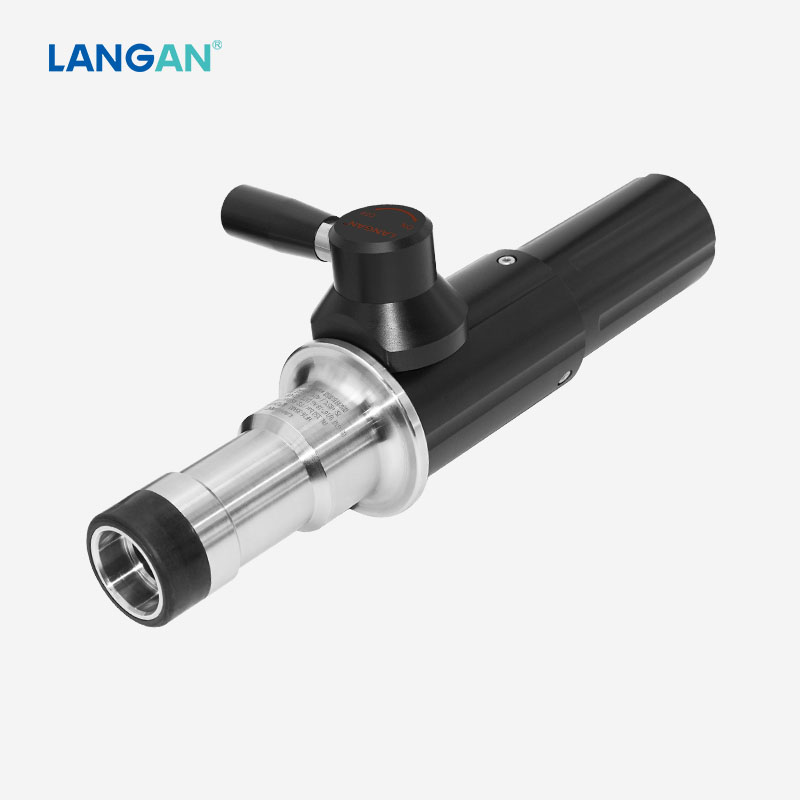

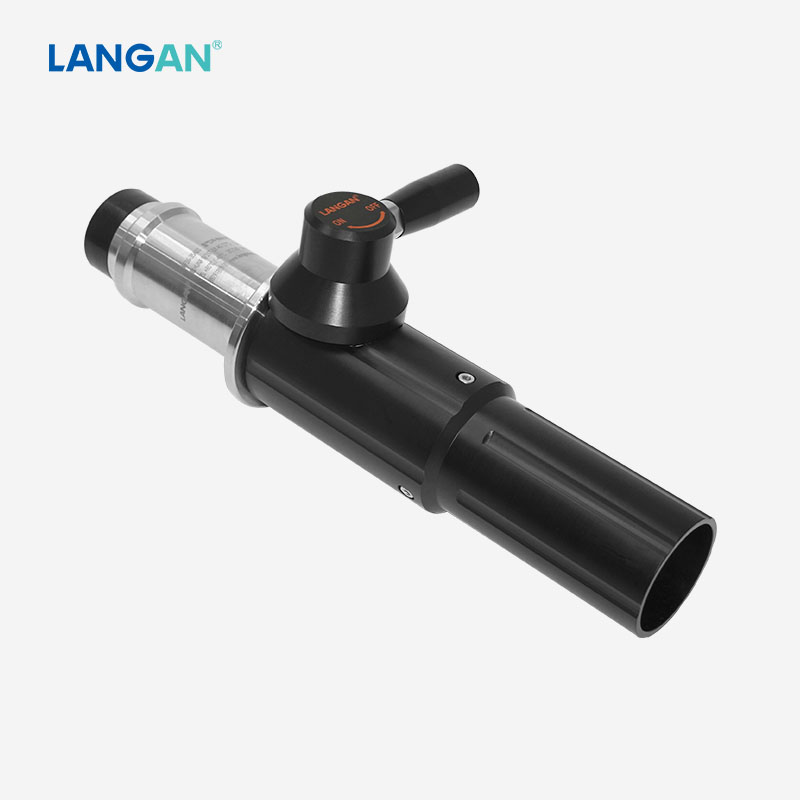

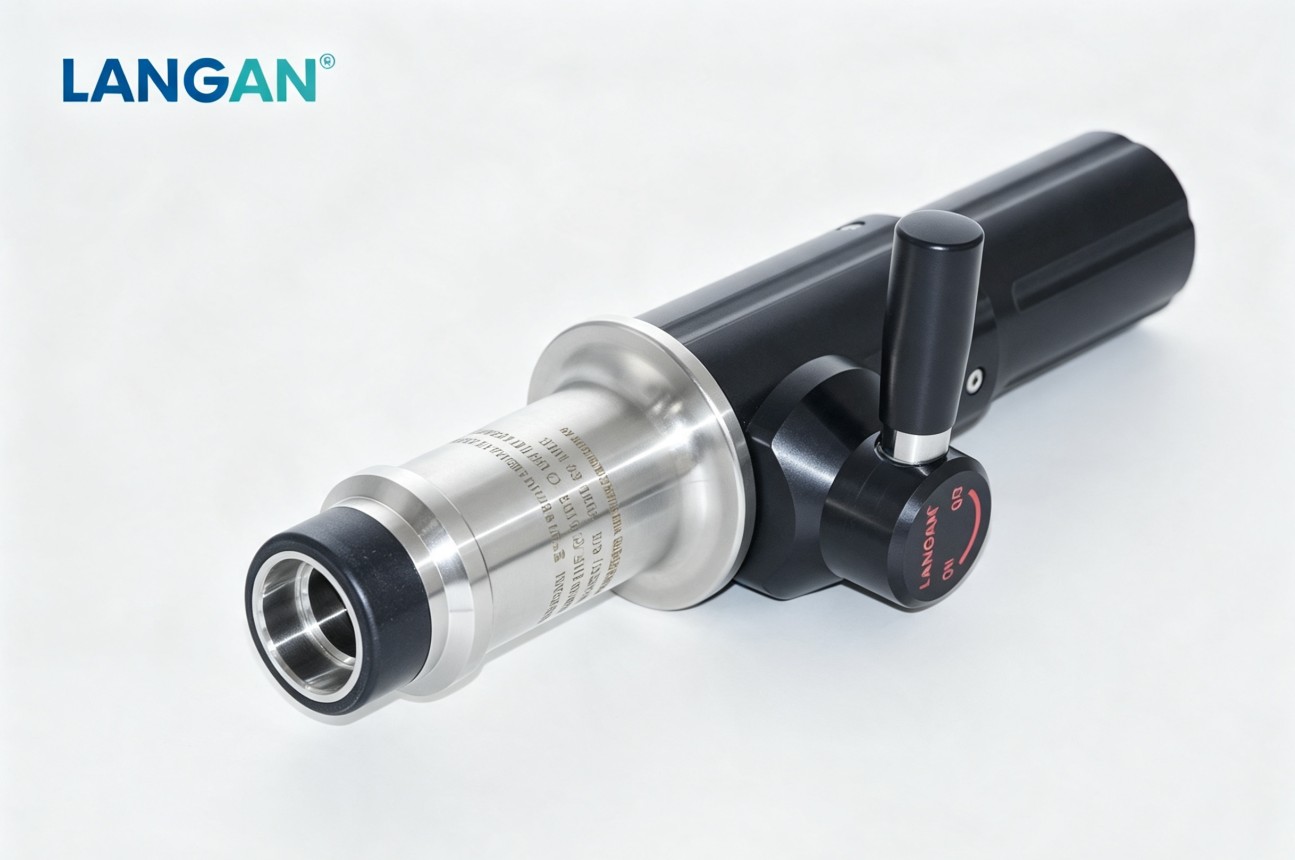

LANGAN® HF16-35A H₂ 35MPa Hydrogen Fueling Nozzle is specially designed for hydrogen fueling of light-duty vehicles of cars and forklifts etc.
It enables easy hydrogen refueling for cars. Engage fueling nozzle and receptacle on the vehicle as far as it can go (until it stops). Rotate the actuation lever and the refueling gets started. When fueling is complete, give the actuation lever a back rotation to disconnect and stop the flow of gas. Finally, release the nozzle from the receptacle. The fueling process is done.
2. Safety designs:
◆ Coding of the pressure range and gas type removes the risk of exceeding the max. permissible pressure and confusion with the natural gas during the fueling.
◆ Jaw locking mechanism is designed specially for the frequent plugging and unplugging of high pressure hydrogen refueling process, providing optimal safety to operators.
◆Impact and cold protection provides more safety and makes the fueling nozzles more durable in the harsh and difficult refueling environment.
3. Application:

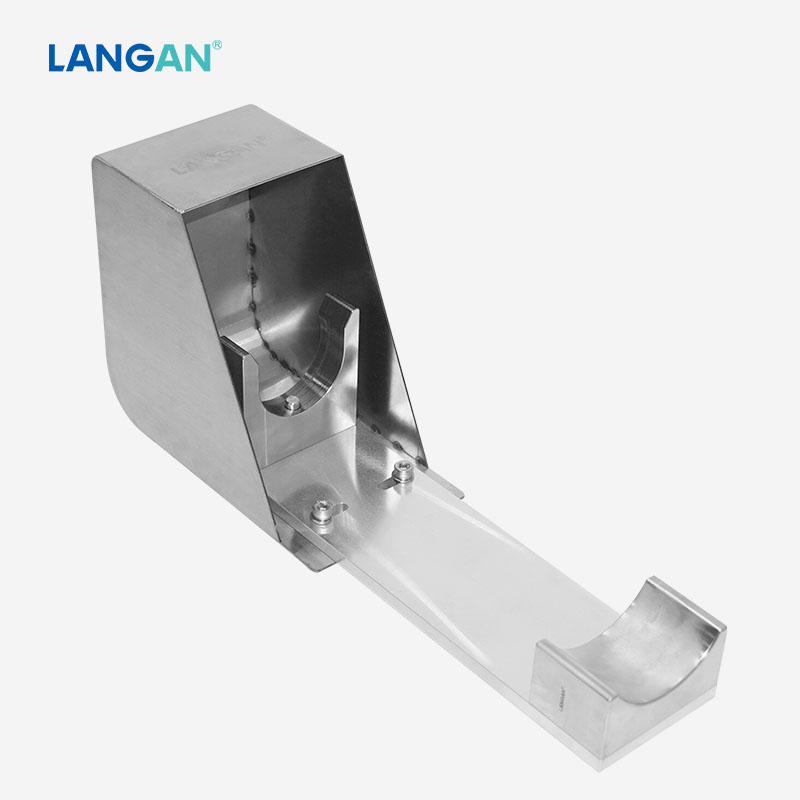

The hydrogen refueling nozzle is mounted on hydrogen dispenser in the self-service hydrogen fueling station for fast hydrogen fueling.
4. Comparision of LANGAN® Hydrogen Refueling Nozzles:
| Nozzle No. | Nominal Bore (DN) | Pressure PN | Weight | Nozzle type | Data interface | Applicable | Compatible receptable |
| HF16-35A | 8mm | 35MPa | 2.5kg | Type A | Without | Light duty vehicles | HR1-35A |
| HF16-35AD | 8mm | 35MPa | 2.8kg | Type A | With | Light duty vehicles | |
| HF25-35A | 12mm | 35MPa | 4.7kg | Type A | Without | Buses＆turcks | HR5-35A |
| HF17-70A | 4mm | 70MPa | 2.2kg | Type C | Without | Light duty vehicles | HR1-70A |
| HF17-70AND | 4mm | 70MPa | 2.7kg | Type C | With | Light duty vehicles |
5. How to order:
With years of experience and extensive expertise in hydrogen fueling industry, we are prefessional hydrogen fueling nozzle manufactuers. Please feel free to INQUIRE us. Customized hydrogen nozzles and receptacles are on request.
★ For more details, please download
HF1-35A Hydrogen Fueling Nozzle Selection Guide
