◆ Ease of operation;
◆ Type A, as per SAE J2600 and ISO 17268;
◆ Compatible with HR1 receptacle;
◆ Exchangeable data interface;
◆ High flow rate, shorter filling time;
◆ Recirculation of vented gas;
◆ Plastic thermal protection;
◆ LANGAN®Jaw-locking technology;
◆ Coding for pressure and gas type;
Hydrogen Fueling Components Manual
HF16-35AD Hydrogen Fueling Nozzle Selection Guide
| Technical data | |

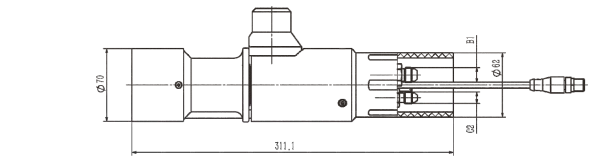

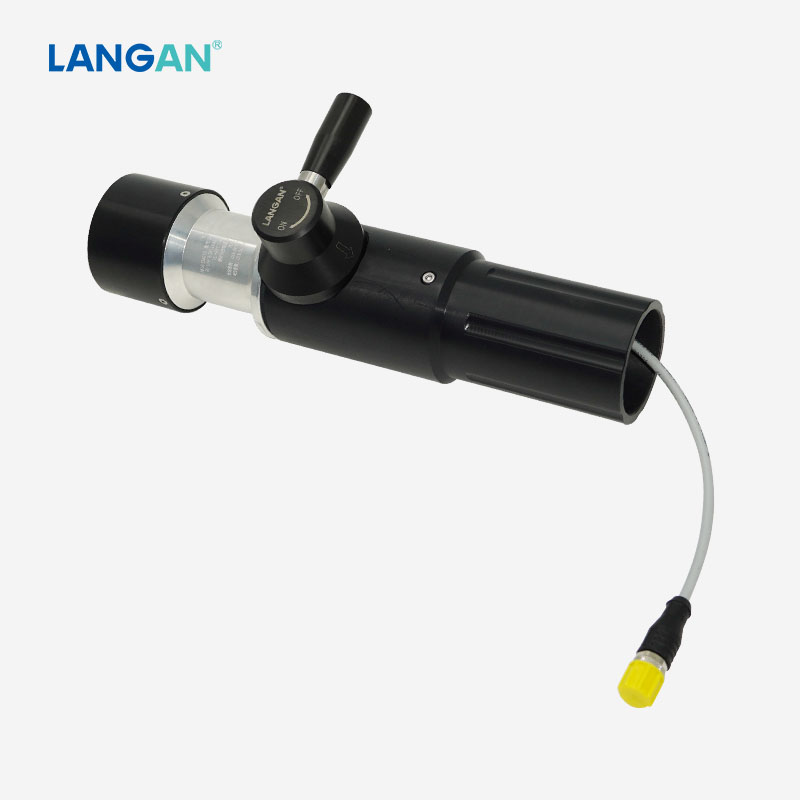

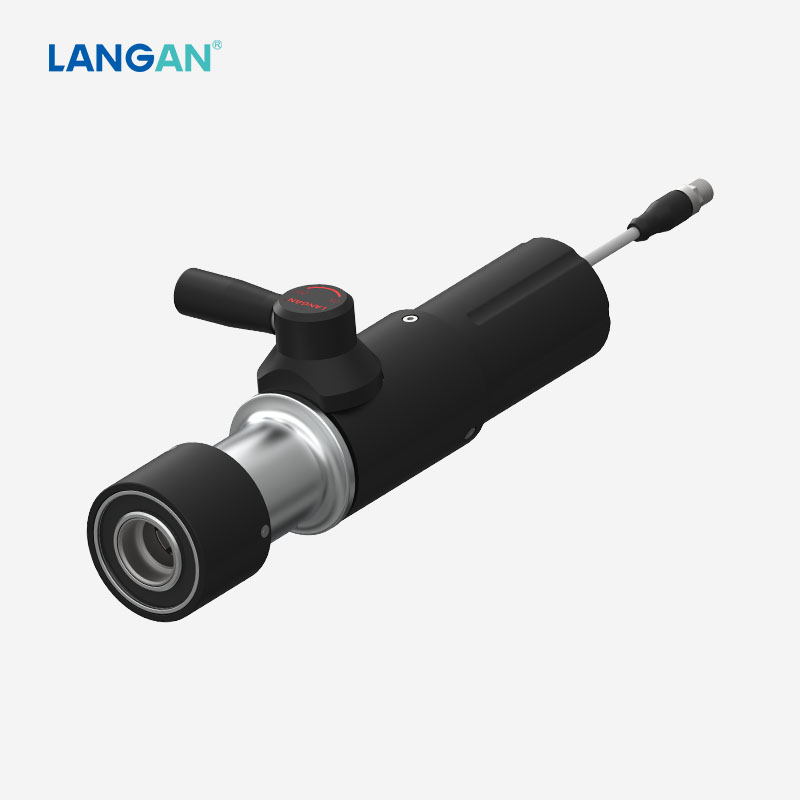

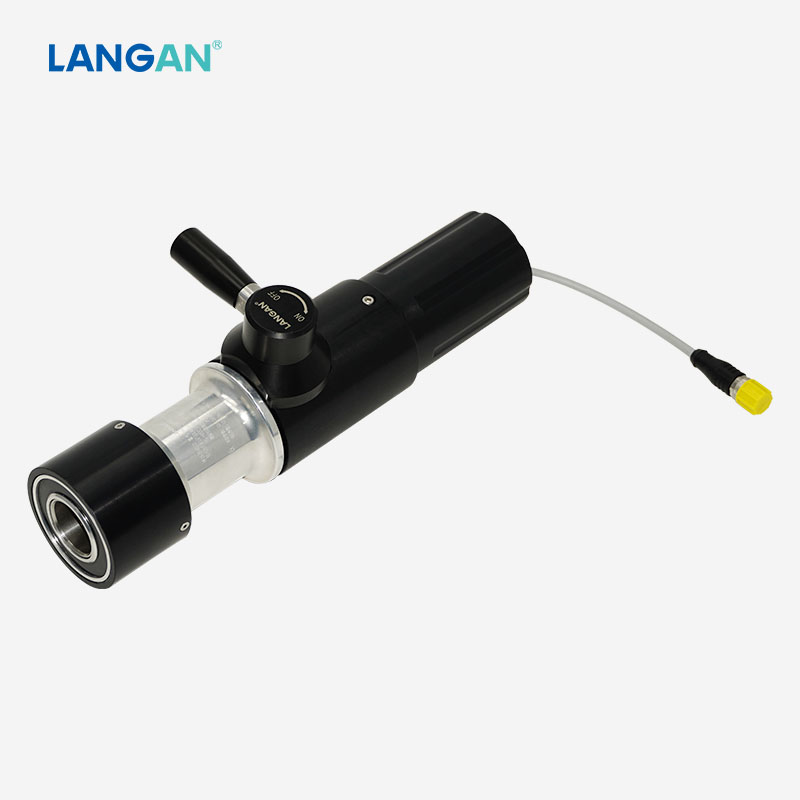

| Product name | LANGAN® HF16-35AD H₂ 35MPa Hydrogen Fueling Nozzle with Data Interface |
| Nominal bore DN | 8mm |
| Pressure range | PN=35MPa, PS=45MPa |
| Media temperature range | -20∼+85℃ |
| Ambient temperature range | -40∼+85℃ |
| Material | Corrosion resistant |
| Sealing material | Hydrogen resistant |
| Nozzle type | Type A, as per SAE J2600: 2015 and previous, ISO17268: 2012 and previous respectively |
| Design | With plastic thermal protection, gas recirculation and data interface |
| Weight | Appro. 2.8kg |
| Test Norms and certificate | Passed State Quality Control test of explosion-proof product and Explosion-Proof Certification certified |
1. Description:
LANGAN® HF16-35AD H₂ 35MPa Refueling Nozzle for hydrogen gas with Data Interface is specially designed for hydrogen fueling of light-duty vehicles of cars and forklifts etc.

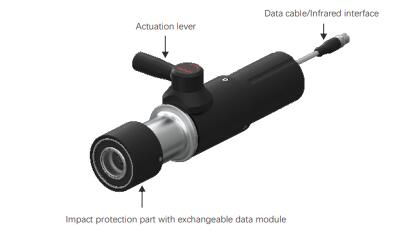

It enables easy refueling for cars. Engage nozzle and receptacle on the vehicle as far as it can go (until it stops). Rotate the actuation lever by 180° and the refueling gets started. When fueling is completed, give the actuation lever a 180° back rotation to disconnect and stop the flow of gas.
Finally, release the nozzle from the receptacle. The fueling process is done.
2. Safety designs:
◆ Coding of the pressure range and gas type: Removing risk of exceeding max. permissible pressure and confusion with the natural gas during fueling;
◆ Jaw locking mechanism: Designed specially for the frequent plugging and unplugging of high pressure hydrogen refueling process, providing optimal safety to the operators;
◆ Impact and cold protection: Providing more safety and makes the nozzle more durable in the harsh and difficult refueling environment;
◆ Infrared data interface: Enabling commnunication between the hydrogen fuel cell EV and fueling station. It is capable of sending filling data during refueling via an infrared communication link, which can realize real-time monitoring of the hydrogen refueling.
3. Application:
The hydrogen refueling nozzle is mounted on hydrogen dispenser in the self-service hydrogen fueling station for fast hydrogen fueling.
4. Comparision of LANGAN® Hydrogen Refueling Nozzle:
| Nozzle No. | Nominal Bore (DN) | Pressure PN | Weight | Nozzle type | Data interface | Applicable | Compatible receptable |
| HF16-35A | 8mm | 35MPa | 2.5kg | Type A | Without | Light duty vehicles | HR1-35A |
| HF16-35AD | 8mm | 35MPa | 2.8kg | Type A | With | Light duty vehicles | |
| HF25-35A | 12mm | 35MPa | 4.7kg | Type A | Without | Buses＆turcks | HR5-35A |
| HF17-70A | 4mm | 70MPa | 2.2kg | Type C | Without | Light duty vehicles | HR1-70A |
| HF17-70AND | 4mm | 70MPa | 2.7kg | Type C | With | Light duty vehicles |
5. How to order:
With years of experience and extensive expertise in hydrogen fueling industry, we are prefessional for hydrogen refueling solutions. Please feel free to INQUIRE us. Customized hydrogen receptacles are on request.
★ For more details, please download
HF16-35AD Hydrogen Fueling Nozzle Selection Guide
