◆ Compatible with HR5-35A H2 receptacles;
◆ Ease of operation;
◆ Safety protection during disconnection;
◆ High flow rate, shorter filling time;
◆ Recirculation of vented gas;
◆ Plastic thermal protection;
◆ LANGAN®Jaw-locking technology;
◆ Coding for pressure and gas type
Hydrogen Fueling Components Manual
HF25-35A Hydrogen Fueling Nozzle Selection Guide
| Technical data | |

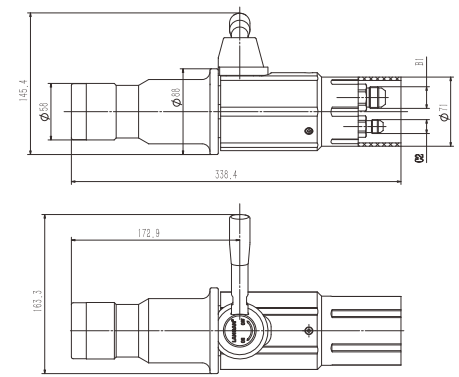

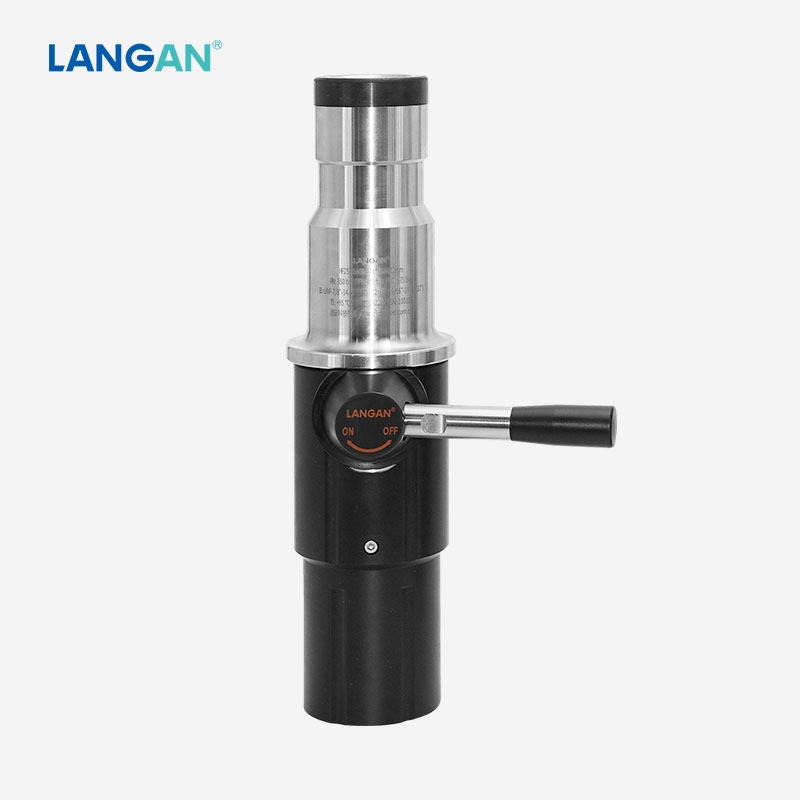

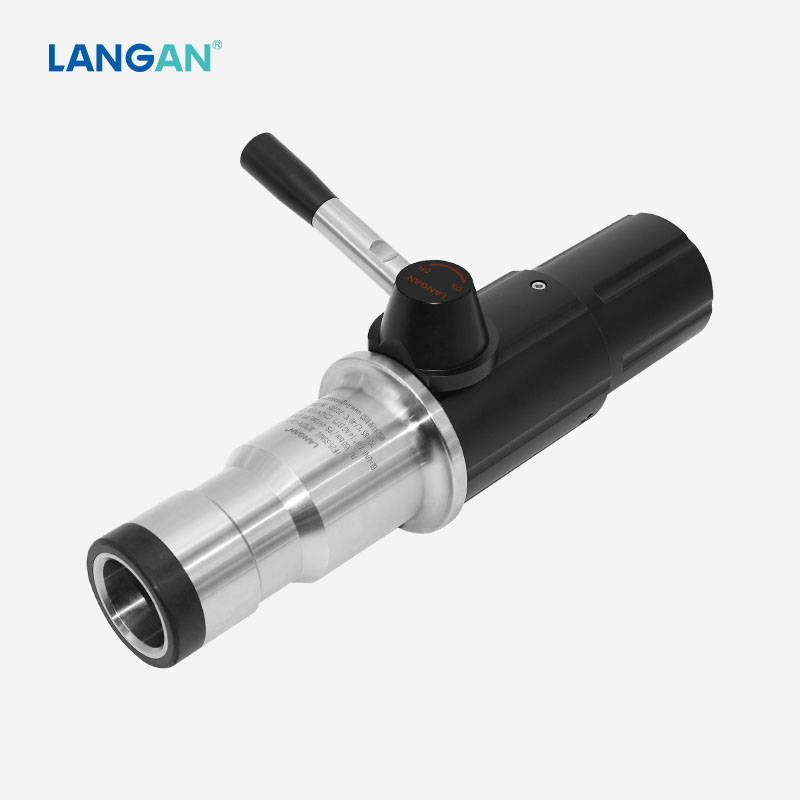

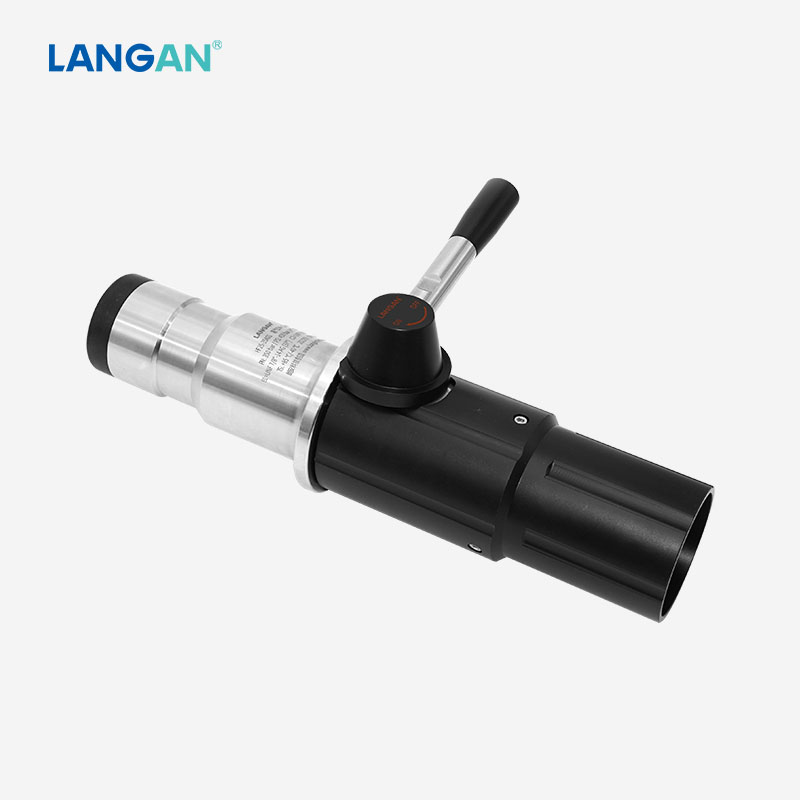

| Product name | LANGAN® Hydrogen Fueling Nozzle 35MPa HF25-35A for refueling of buses and trucks |
| Nominal bore DN | 12mm |
| Pressure range | PN=35MPa, PS=45MPa |
| Media temperature range | -20∼+85℃ |
| Ambient temperature range | -40∼+85℃ |
| Material | Corrosion resistant |
| Sealing material | Hydrogen resistant |
| Nozzle type | Type A, as per SAE J2600: 2015 and previous, ISO17268: 2012 and previous respectively |
| Design | With plastic thermal protection and gas recirculation |
| Weight | About 4.7kg |
| Test and certificate | Test according to SAE J2600:2002 |
1. Description:
LANGAN® HF25-35A 35MPa hydrogen refueling nozzle is designed specially for the fast refueling of buses and trucks in the self-service hydrogen station under pressure up to 35MPa.

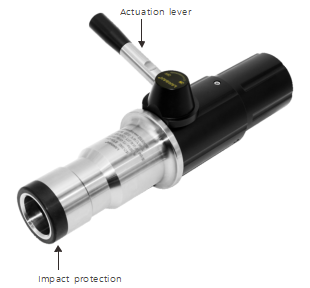

It enables easy refueling for buses and trucks. Engage nozzle and receptacle on the vehicle as far as it can go (until it stops). Rotate the actuation lever by 180° and the refueling gets started. When fueling completes, give the actuation lever a 180° back rotation to disconnect and stop the flow of gas. Finally, release the nozzle from the receptacle. The fueling process is done.
2. Safety designs:
◆ Coding of the pressure range and gas type: Removing risk of exceeding the max. permissible pressure and confusion with the natural gas during fueling;
◆ Jaw locking mechanism: Designed specially for frequent plugging and unplugging of high pressure hydrogen refueling process, providing optimal safety to the operators;
◆ Impact and cold protection: Providing more safety and makes the nozzle more durable in the harsh and difficult refueling environment;
3. Application:

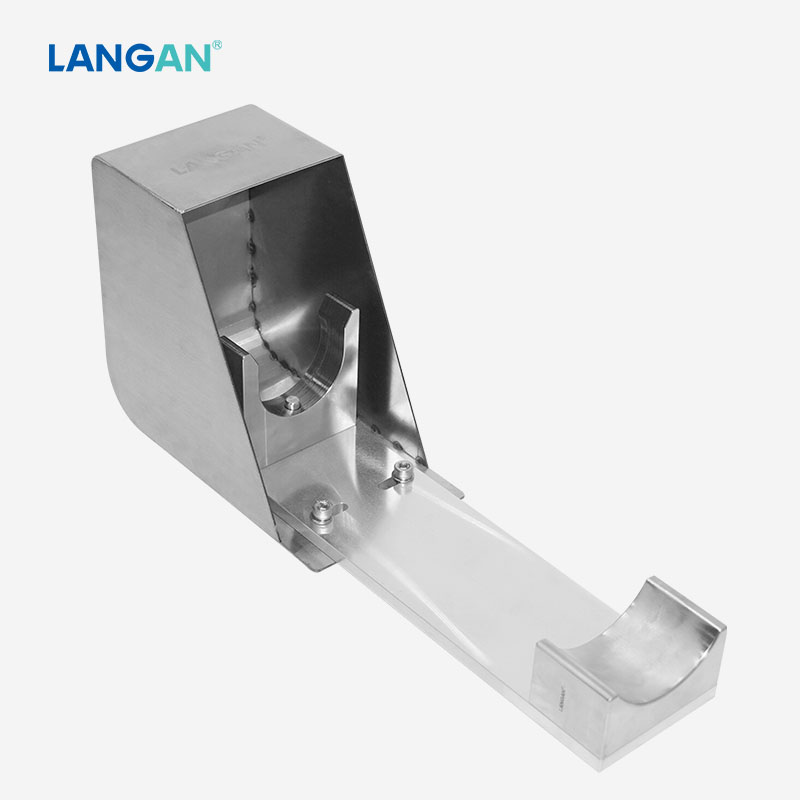

The hydrogen refueling nozzle is mounted on hydrogen dispenser in the self-service hydrogen fueling station for fast hydrogen fueling.
4. Comparision of LANGAN® Hydrogen Refueling Nozzle:
| Nozzle No. | Nominal Bore (DN) | Pressure PN | Weight | Nozzle type | Data interface | Applicable | Compatible receptable |
| HF16-35A | 8mm | 35MPa | 2.5kg | Type A | Without | Light duty vehicles | HR1-35A |
| HF16-35AD | 8mm | 35MPa | 2.8kg | Type A | With | Light duty vehicles | |
| HF25-35A | 12mm | 35MPa | 4.7kg | Type A | Without | Buses＆turcks | HR5-35A |
| HF17-70A | 4mm | 70MPa | 2.2kg | Type C | Without | Light duty vehicles | HR1-70A |
| HF17-70AND | 4mm | 70MPa | 2.7kg | Type C | With | Light duty vehicles |
5. How to order:
With years of experience and extensive expertise in hydrogen fueling industry, we are prefessional for hydrogen refueling solutions. Please feel free to INQUIRE us. Customized hydrogen receptacles are on request.
★ For more details, please download
HF25-35A Hydrogen Fueling Nozzle Selection Guide
